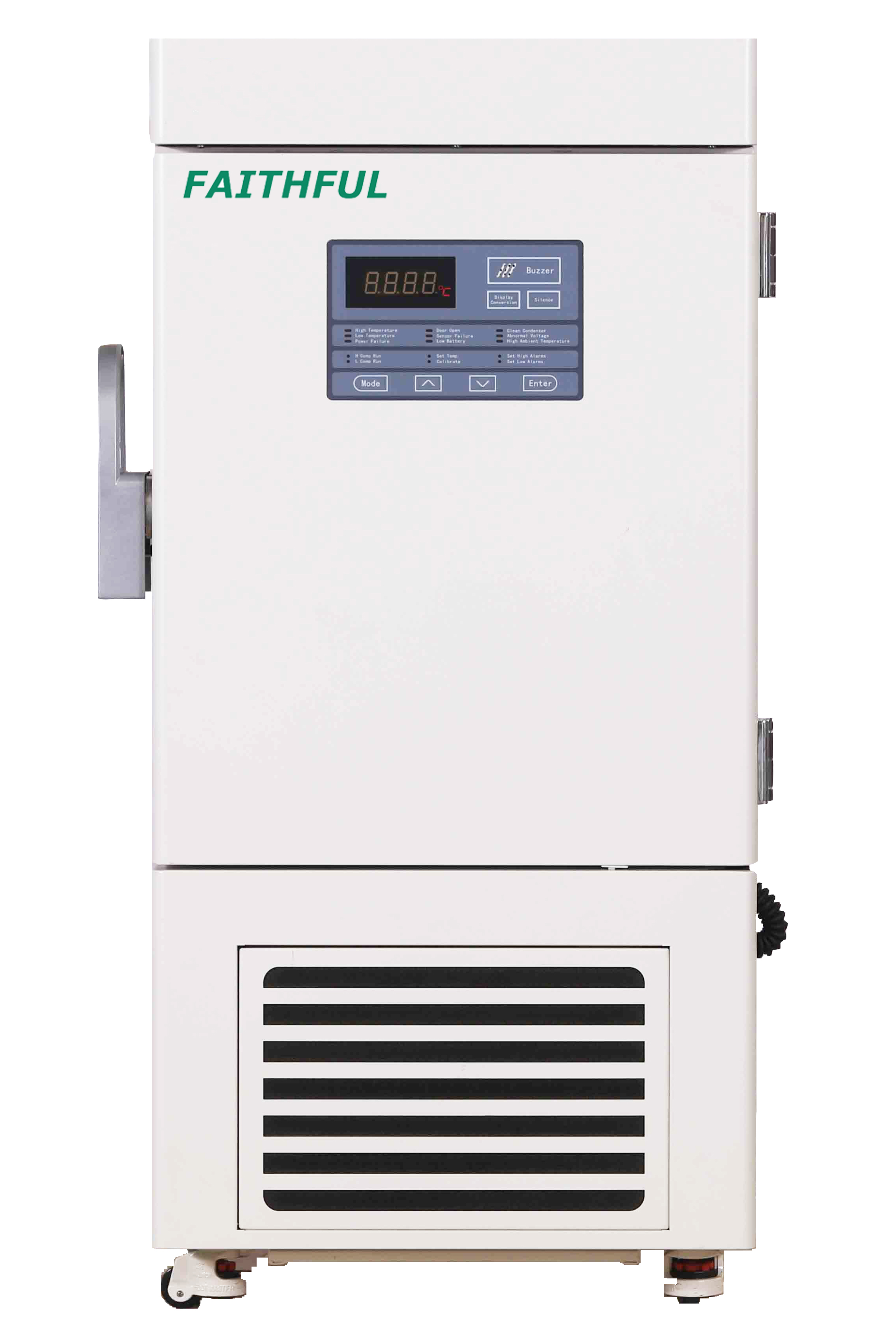

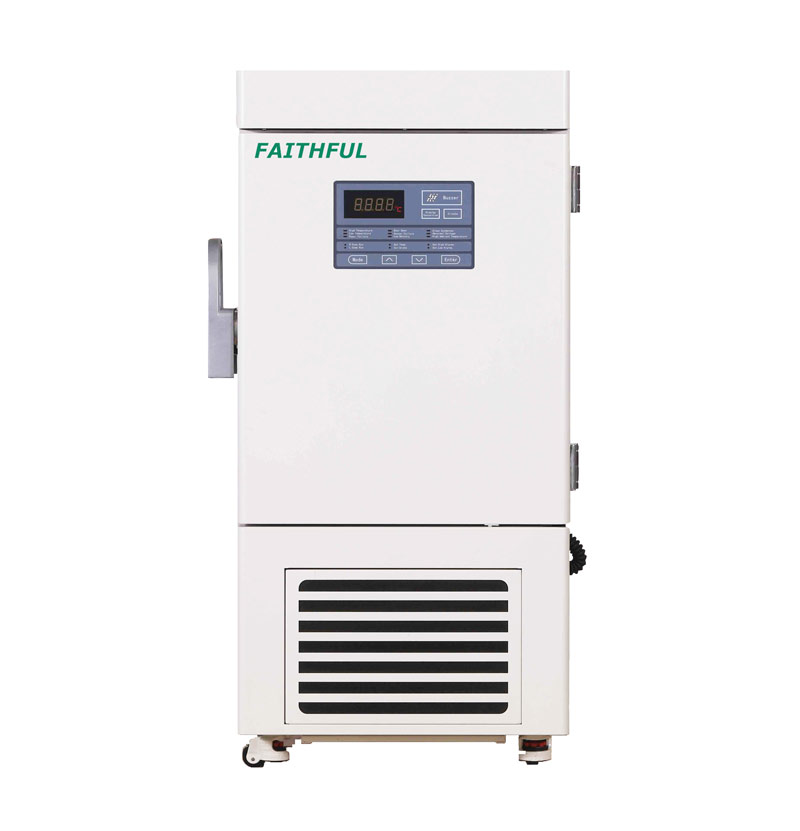

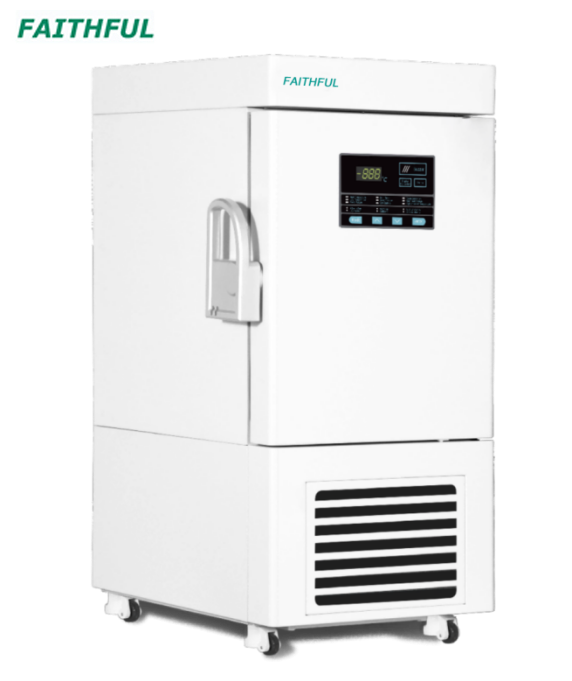

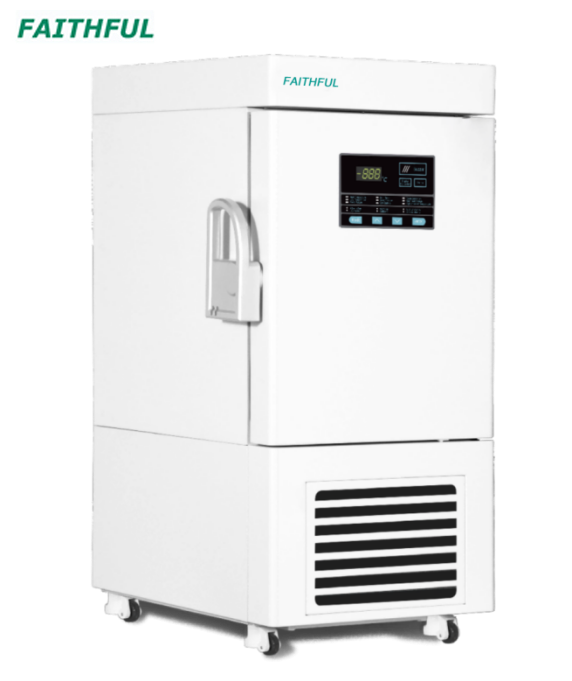

-86°C Ultra Low Temperature Freezer- FSF-86V58

Ultra Low Temperature Freezer are specially designed to store samples products.
Availability:
Quantity:
  • FSF-86V58

  • FAITHFUL

Features

  • Ambient temperature range :10℃~32℃.

  • Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.

  • The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.

  • SPCC sprayed steel external material and 304 stainless steel inner chamber for friendly using and easy cleaning.

Safety

  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

  • Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm,door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm

  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

  • Keyboard lock, password protection to avoid set parameter randomly.

  • Wide available voltage range: 187V~242V.

Humanized design

  • 4 casters with stopper for easy moving and fixation.

  • 1 adjustable shelves for easy storing.

  • Removable condenser dust gauze convenient for cleaning and maintenance.

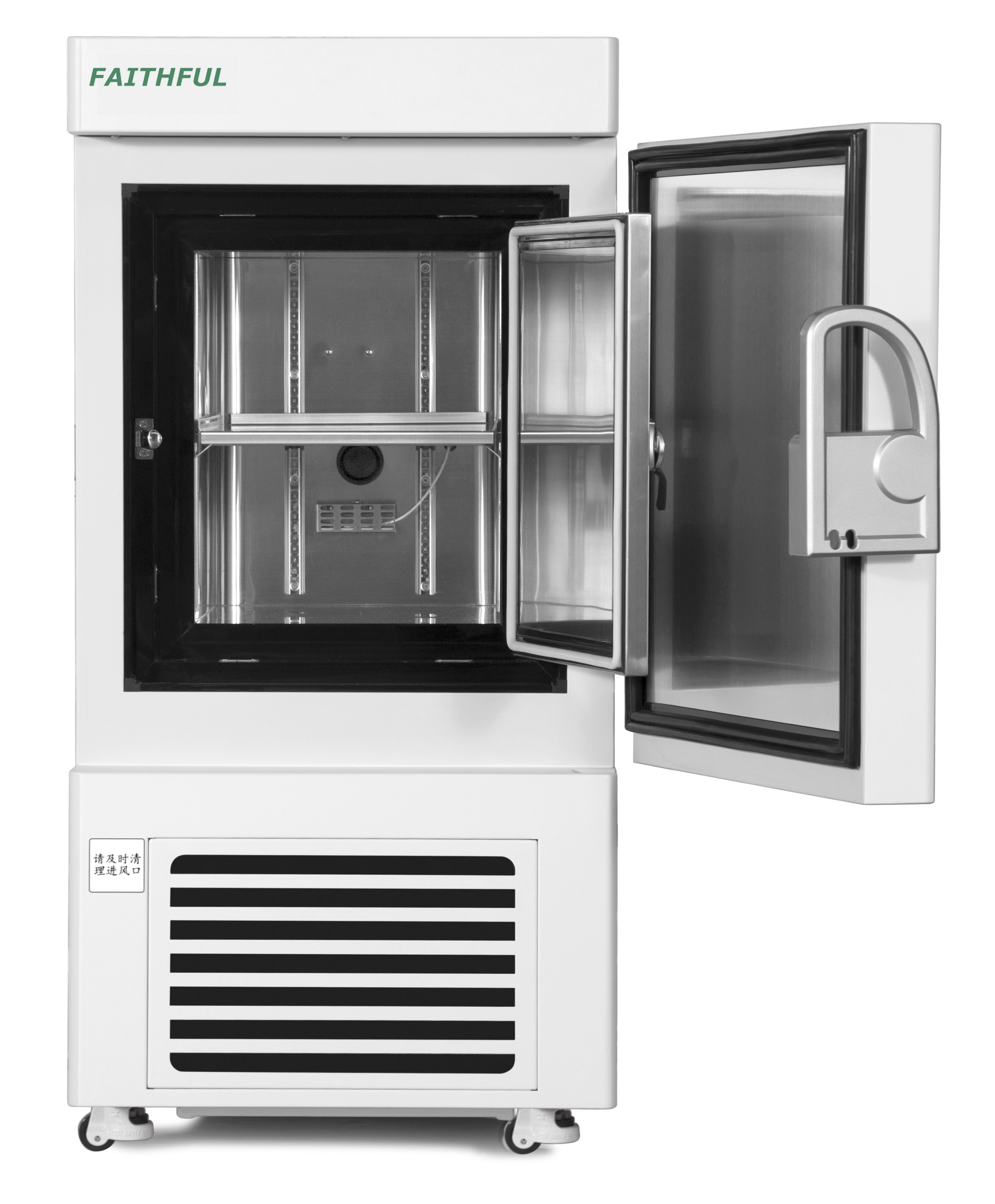

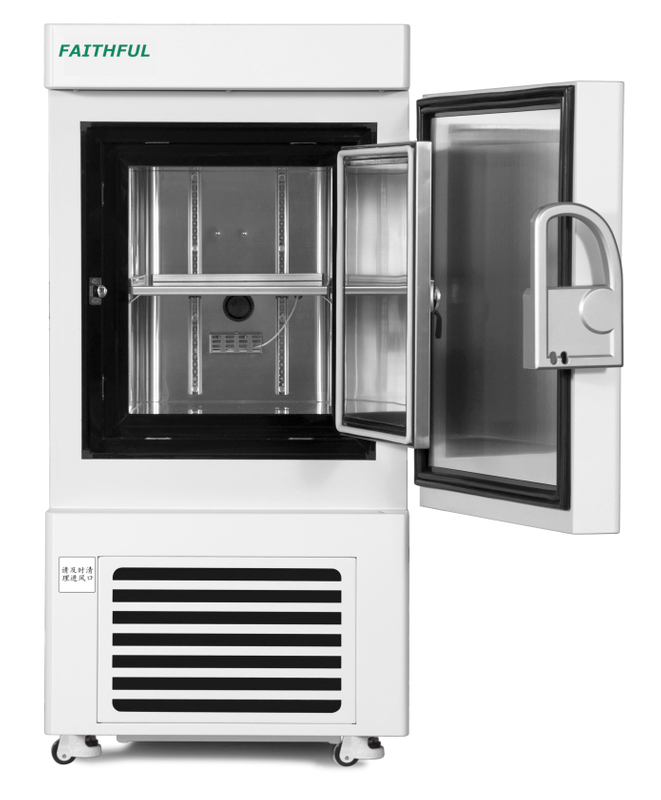

  • Removable inner door for user to defrost and clean.

  • Standard Independent Power Switch.

Special:

  • Patented technology, mixed refrigerant.

  • Standard remote alarm port

  • Cold storage box loading QTY:2400

  • MRNA vaccine can be stored:2400pcs

  • 10 visual and audible alarms.

PerformanceTemperature Range
-40~-86°C
Ambient Temperature
+10~+32°C
Controller
Microprocessor
Display
Digital Display
Refrigeration System
Compressor/Brand
1/SECOP
Refrigerant
Mixed
Cooling Type
Direct cooling
Defrost Type
Manual
Electrical Data
Power Supply(V/Hz)
220~240V/50~60;115/60
Capacity
58L
Rated Power(W)
442
Electrical Current(A)
2.67
Power Consumption
5.6 kWh/24h
Power failure alarm
72H
Loading Qty(20'/40'/40'H)
21/43/43
Dimensions
Interior Size(W*D*H)
330*453*410mm
Exterior Size(W*D*H)
635*757*1212mm
Package Size(W*D*H)730*845*1400mm
N.t./G.t.(approx)
115/155kg
Alarm
High/Low Temperature
Y
Sensor Error
Y
Power Failure
Y
Door ajar
Y
Ambient temp.
Y
Condenser clean
Y
Low battery
Y
Filter screen check
Y
Abnormal voltage
Y
Thermostat failure
Y
Accessories
Caster
4
Remote alarm port
Y
Inner Door
1(stainless steel)
Shelf
1(stainless steel)
Test hole
1/25MM
Data looger
Optional
CO2 back up system
Optional
LN2 back up system
Optional
Cold storage box loading
QTY 2400
MRNA vaccine can be stored
2400pcs
