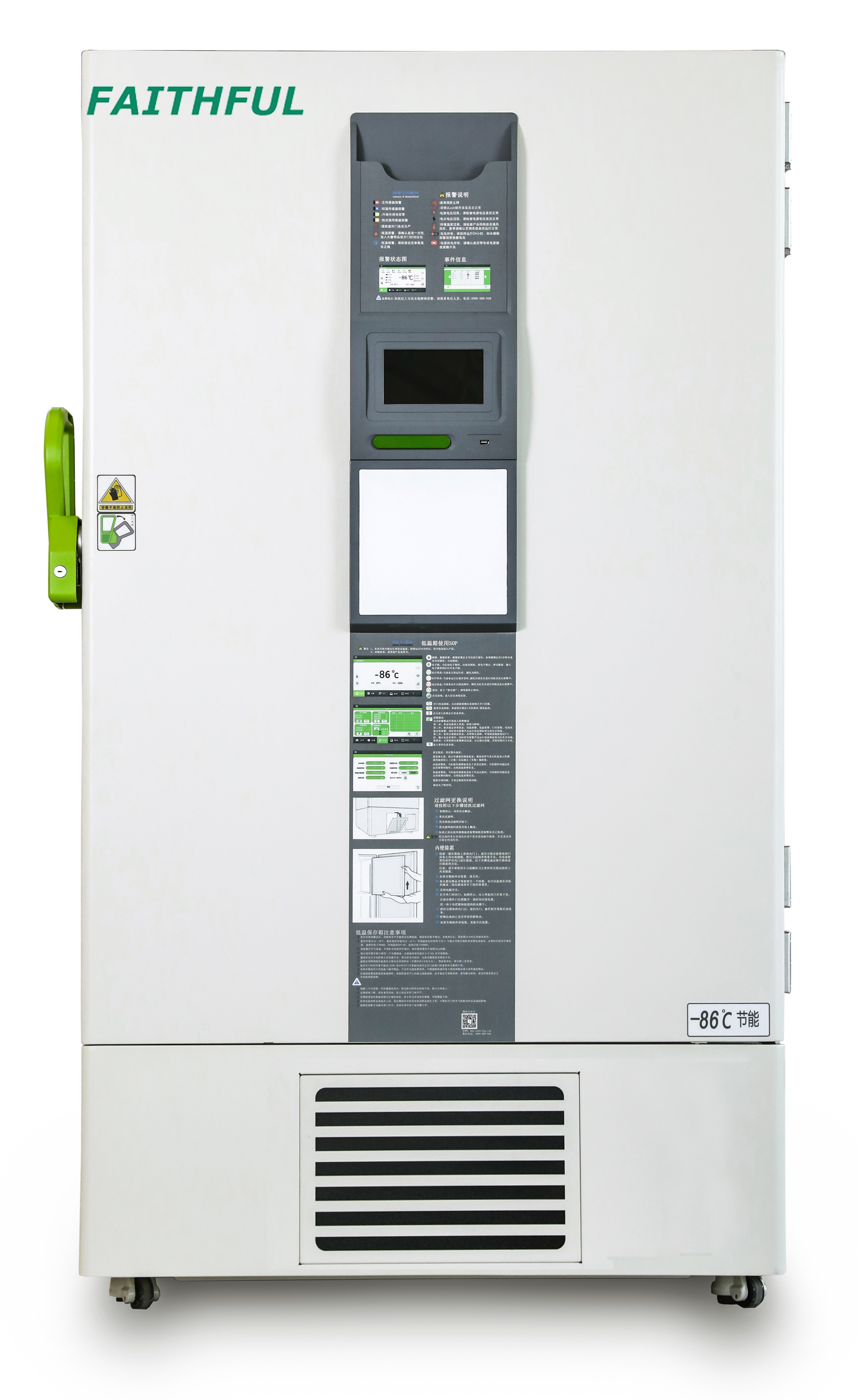

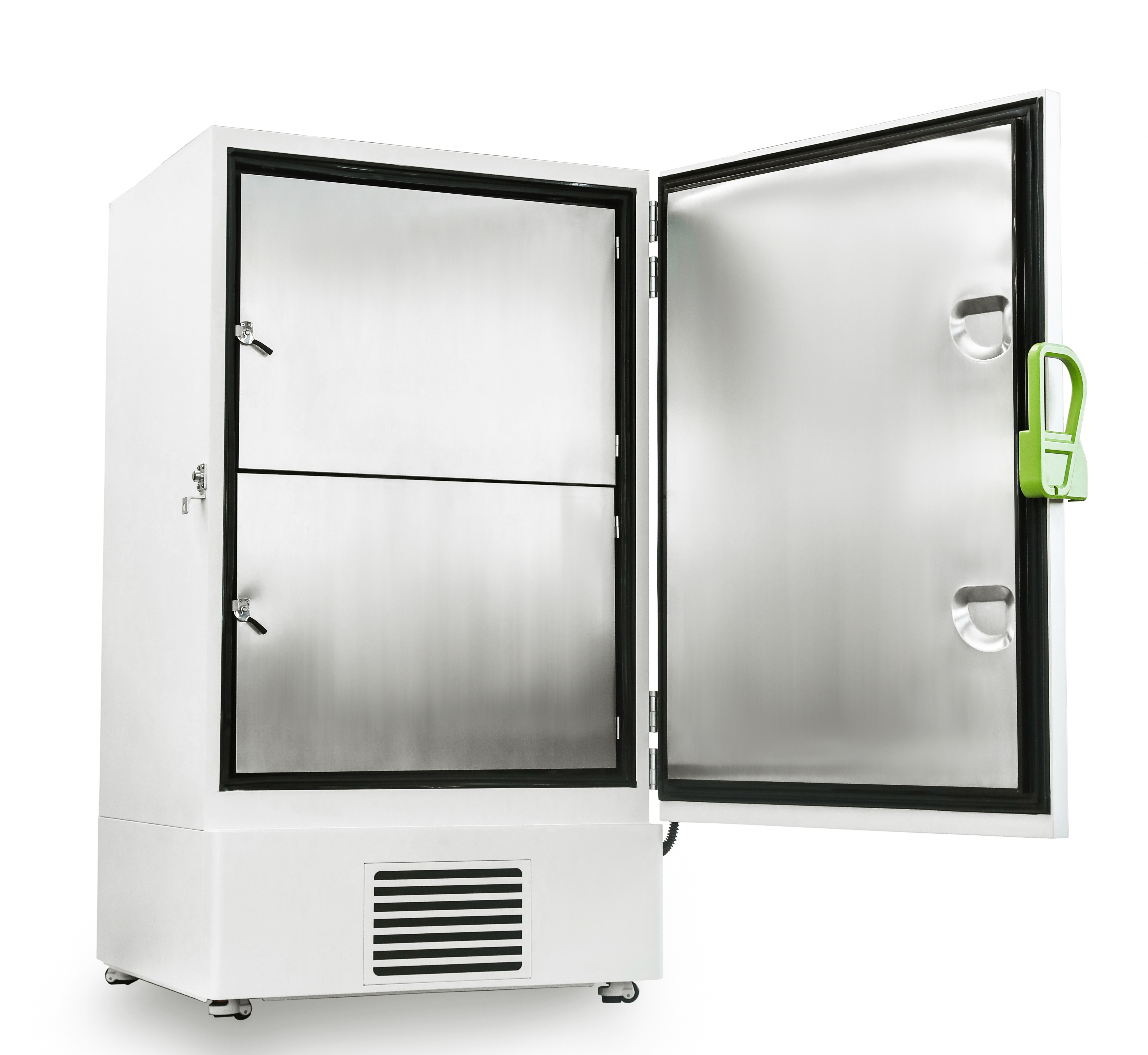

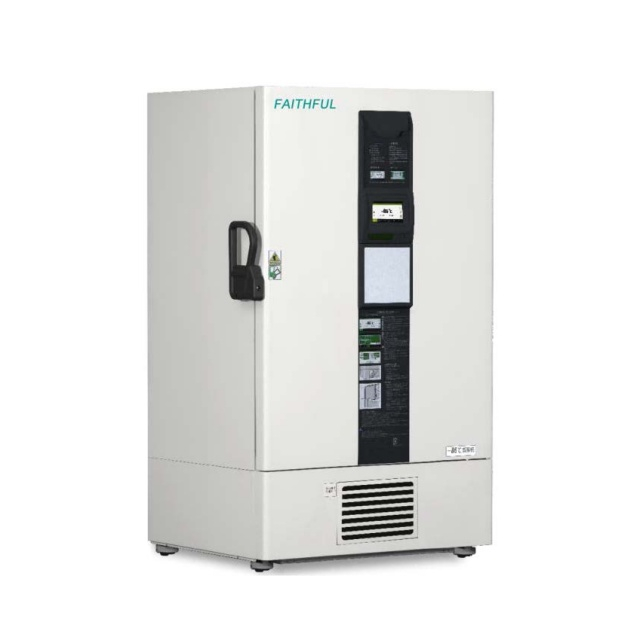

-86°C Ultra Low Temperature Freezer- FSF-86V838D

 Ultra Low Temperature Freezer are specially designed to store samples products
Availability:
Quantity:
  • FSF-86V838D

  • FAITHFUL

Features

  • Ambient temperature :10℃~32℃.

  • Accurate Temperature control technology to make the temperature maintain -40 ℃~-86 ℃ and accuracy 0.1 ℃.

  • Independent research and development of mixed refrigerant can make device save energy 50%.

  • if one system breaks down the left one could continue working to maintain inner temp at - 80C, this means you would have double safety guarantee for your storage inside

  • The first dual system invented and released in domestic market with the rapid cooling speed to cool down from room temperature to -80 in 3.5hours.

  • 304 stainless steel inner chamber for friendly using and easy cleaning.

  • VIP II PLUS technology, special narrow design for entering elevators.

Safety

  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

  • Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm

  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

  • Keyboard lock, password protection to avoid set parameter randomly.

  • Special noise reduction design.

Humanized design

  • 4 casters with stopper for easy moving and fixation.

  • Standard 25mm test hole for easy connecting to temperature monitoring systems.

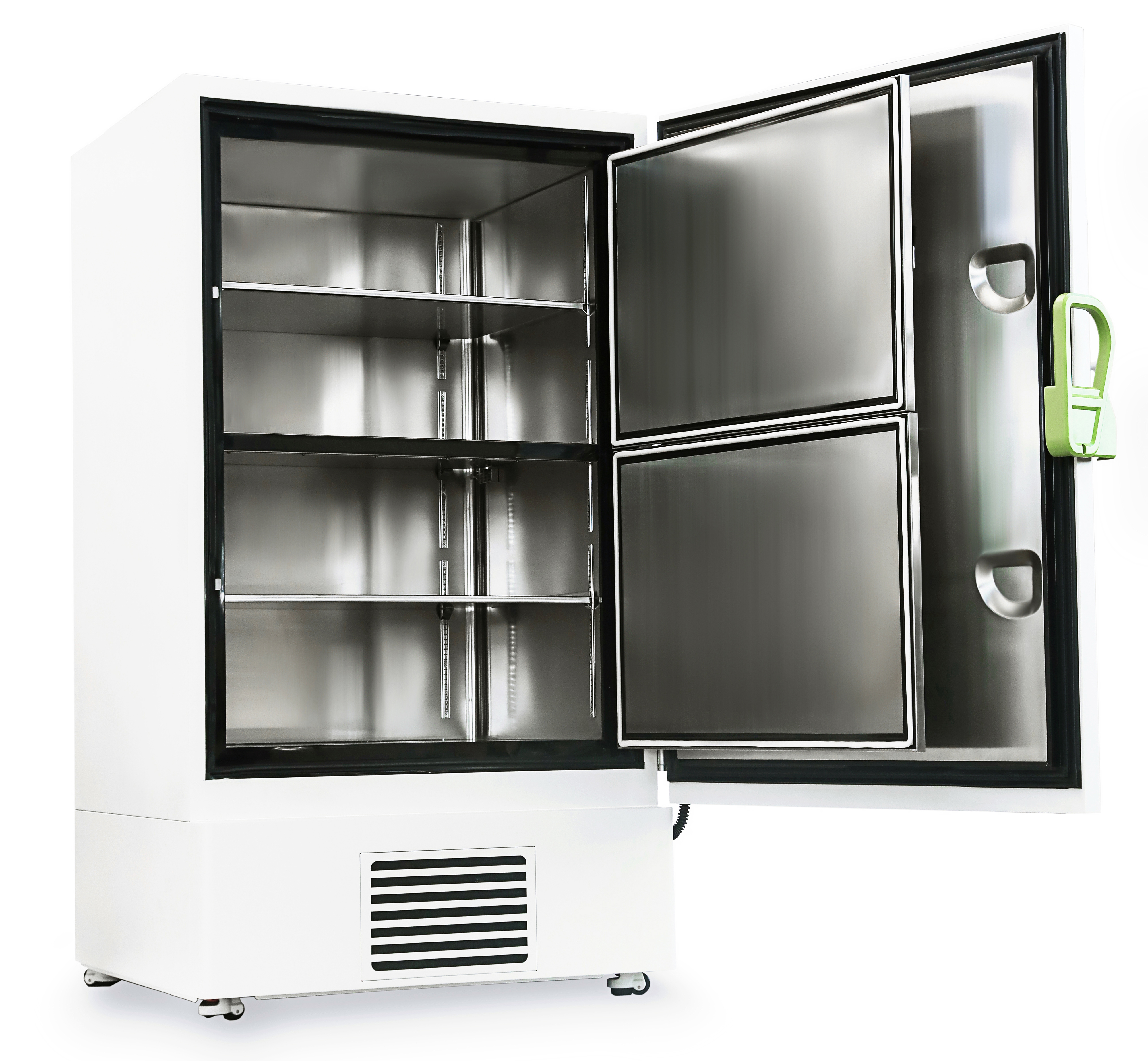

  • 3 adjustable shelves for easy storing.

  • Removable condenser dust gauze convenient for cleaning and maintenance.

  • Removable inner door for user to defrost and clean.

  • Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.

Special:

  • Patented technology, mixed refrigerant.

  • Standard remote alarm port

  • 10 visual and audible alarms.

Performance        Temperature Range
-40~-86°C
Ambient Temperature
+10~+32°C
Controller
Microprocessor
Display
LCD Display
Refrigeration SystemCompressor/Brand
2/SECOP
Refrigerant
Mixed
Cooling Type
Direct cooling
Defrost Type
Manual
Electrical DataPower Supply(V/Hz)
220/50~60; 115/60
Rated Power(W)
1700W
Electrical Current(A)
9.8
Power Consumption
18.8kWh/24h
Power failure backup system
72H
DimensionsCapacity
838L
Interior Size(W*D*H)
894*718*1310mm
Exterior Size(W*D*H)
1190*1045*2010mm
Package Size(W*D*H)
1270*1105*2220mm
N.t./G.t.(approx)
336.5/416kg
Loading Qty(20'/40'/40'H)
8/18/18
AlarmHigh/Low Temperature
Y
Sensor Error
Y
Power Failure
Y
Door ajar
Y
High Ambient temp.
Y
Condenser clean
Y
Low battery
Y
Filter screen check
Y
Abnormal voltage
Y
AccessoriesCaster
4
USB port
Y
Remote alarm port
Y
RS232/485 port
Y
Inner Door/shelf
2/3
Test hole
1/25MM
Data logger
Optional
CO2/LN2 back up system
Optional
Cold storage box loading QTY
60000
