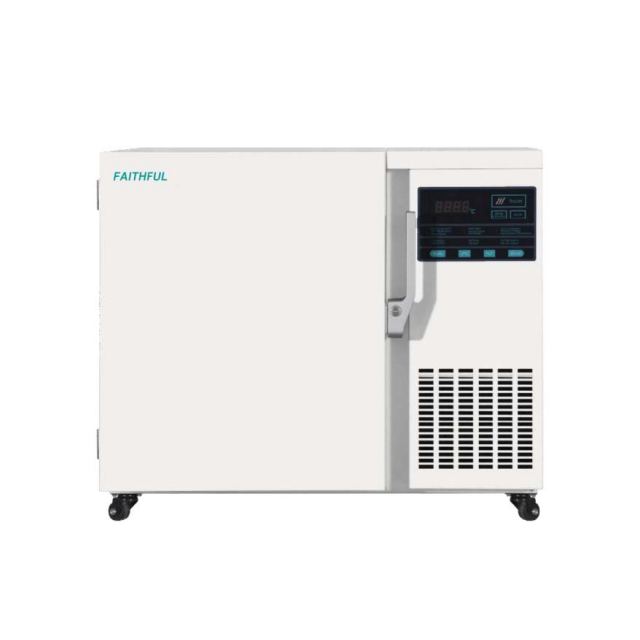

-86℃ Smart ULT Freezer FSF-86V58U

Ultra Low Temperature Freezer are specially designed to store samples products
Availability:
Quantity:
  • FSF-86V58U

  • FAITHFUL

 Super-cooling technology:Auto-ascade cooling system is designed with a powerful compressor which drives the unique mixed refrigerant for fast cabinet cooling down. The system is simple in construction, energy saving and easy maintenance.

Advanced thermal insulation:The insulation are designed with the latest generation of VIP technology to achieve thermal conductivity of 0.005 W(m.K). That makes ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of energy saving as well as space-saving.

Large LED display:Full-function control panel.

10 types of Alarms:Audible and visual alarms.

Multi-layer sealing design:Better sealing, better insulation.

Eco-friendly:CFC-free refrigerant & insulation.

Energy saving:More efficient cooling system.


Performance

Refrigeration System

Alarms

Cooling method

Direct Cooling

Refrigerant

R4001(mxed gas)

High/low temperature

Y

Defrost

Manual

Temp. controller

Microprocessor

Power failure

Y

Temperature range

-40℃~-86℃

System

Auto-cascade

Abnormal voltage

Y

Ambient temperature

10~32℃

Sensor

PT100

Sensor error

Y

Display

LED digital

Compressor brand/QTY

SECOP/1

Door ajar

Y

Access port QTY/Dia.

1/25mm

Insulation

PURF

Filter screen check

Y

USB Intereface

Yes/1

Inner door material/QTY

Foamed SS/1

Thermostat failure

Y

Remote alarm Access

Y

Racks

2(6x2)

Low battery

Y

RS485 Access

Y

Boxes (2 Inches)

24

Condenser clean

Y

Outside material

Color sprayed steel

Samples(2ml)

2,400

High ambient temperature

Y

Inside material

Stainless steel



Power failure backup (alarm)

72h

Castor

Universal





Electrical Data

Dimensions

Other

Voltage frequency

220V 50Hz/60Hz

Package size(W*D*H)(mm)

970*820*940

Chart recorder

Optional

Power(W)

363W

Exterior size(W*D*H)(mm)

904*798*748

Data logger

Optional

Current(A)

4A

Interior size(W*D*H)(mm)

330*453*410

CO2 back up system

Optional

Power consumption

6.09 Wh/24h

Capacity(L/cu.ft)

58/2.0

LN2 back up system

Optional

Noise(db)

50

N.W/G.W(kg)

94/129.5

Gloves

Optional
