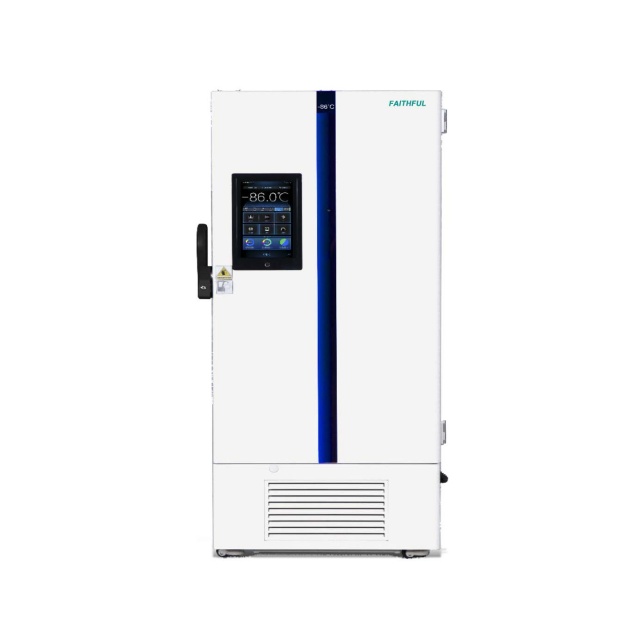

-86℃ Smart ULT Freezer FSF-86V600L

Cooling method

Direct Cooling

Refrigerant

R4001

High/low temperature

Y

Defrost

Manual

Temp. controller

Microprocessor

Power failure

Y

Temperature range

-40℃～-86℃

System

Dual system

Abnormal voltage

Y

Ambient temperature

10~32℃

Sensor

PT100

Sensor error

Y

Display

13'' LCD touch screen

Compressor brand/QTY

SECOP/2

Door ajar

Y

Access port QTY/Dia.

2/25mm

Insulation

PURF

Filter screen check

Y

USB port

Y

Inner door material/QTY

Foamed SS/2

Thermostat failure

Y

Remote alarm Access

RS232/485

Racks

16(5X5)

Low battery

Y

Outside material

Power coated steel

Boxes (2 Inches)

400

Condenser clean

Y

Inside material

Stainless steel

Samples(2ml)

40,000

High ambient temperature

Y

Castor

Y/4  4 Universal

Test hole QTY/diameter

2/25MM

Power failure backup (alarm)

72h

Stainless steel shelf/3

Stainless steel shelf/3

Refrigerant Weight(g)

320

Remote alarm port

Y

Inside door

2(4 inner door optional)

Voltage frequency(V/Hz)

220V 50Hz/60Hz

Package size(W*D*H)(mm)

973*1182*2200

Chart recorder

Optional

Power(W)

1500W

Exterior size(W*D*H)(mm)

891*1130*1994.5

Data logger

Optional

Current(A)

10.47A

Interior size(W*D*H)(mm)

606*738*1310

CO2 back up system

Optional

Power consumption

16.6kWh/24h

Capacity(L/cu.ft)

600/21.19

LN2 back up system

Optional

Noise(db)

53

N.W/G.W(kg)

315/359

Gloves

Optional

RS485 port

Optional
