FSF-86H105
FAITHFUL

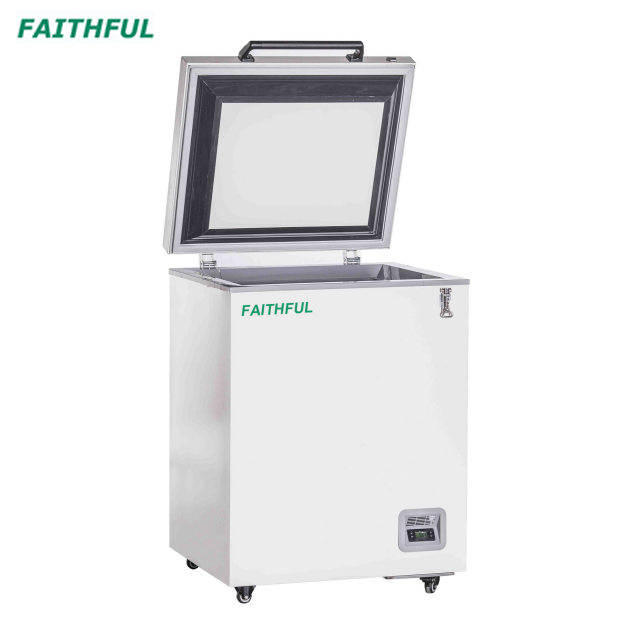

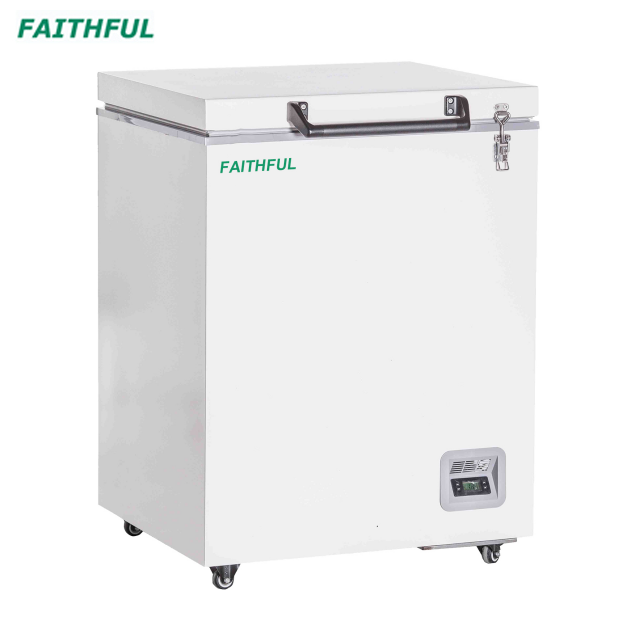

-86℃ Chest ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.
-86℃ Chest ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.
Basic | Refrigeration System | ||
Cooling method | Direct Cooling | Refrigeration | R4001（mxed gas) |
Defrost | Manual | Temp.controller | Microprocessor |
Temperature range | -40℃--86℃ | System | Auto-cascade |
Ambient temperature | 10-32℃ | Sensor | PTC100 |
Display | LED digital | Compressor Brand/QTY | CUBIGELN/1 |
Access port QTY/Dia. | 1/25mm | Capacity(L/cu.ft) | 105/3.7 |
USB Interface | No | Insulation | PURF |
Remote alarm Access | No | Inner door material/QTY | / |
Outside material | Color sprayed steel | Optional Racks | 2(11X2)+2(6X1) |
Inside material | SUS304 | Boxes(2 Inches) | 34 |
Castor | Universal | Samples(2ml) | 3400 |
Electrical Data | Dimensions | ||
Voltage frequency( V/Hz) | 220V 50Hz/60Hz | Package size(W*D*H)(mm) | 770*705*1090 |
Power（W) | 500W | Exterior size(W*D*H)(mm) | 680*580*935 |
Current（A) | 2.53A | Interior size(W*D*H)(mm) | 480*380*665 |
Power consumption | 4.79kWh/24h | Shipping CBM | 0.6 |
Noise(db) | 50 | N.W/G.W(kg) | 65/70 |
Alarms | Accessories | ||
High/low temperature | Y | SUS304 Racks | Optional |
Power failure | Y | Data logger | Optional |
Abnormal voltage | / | Baskets | Optional |
Sensor error | Y | Gloves | Optional |
Door ajar | / | ||
Filter screen check | / | ||
Thermostat failure | Y | ||
Low battery | / | ||
Condenser clean | / | ||
High ambient temperature | / | ||
Power failure backup | / | ||
Basic | Refrigeration System | ||
Cooling method | Direct Cooling | Refrigeration | R4001（mxed gas) |
Defrost | Manual | Temp.controller | Microprocessor |
Temperature range | -40℃--86℃ | System | Auto-cascade |
Ambient temperature | 10-32℃ | Sensor | PTC100 |
Display | LED digital | Compressor Brand/QTY | CUBIGELN/1 |
Access port QTY/Dia. | 1/25mm | Capacity(L/cu.ft) | 105/3.7 |
USB Interface | No | Insulation | PURF |
Remote alarm Access | No | Inner door material/QTY | / |
Outside material | Color sprayed steel | Optional Racks | 2(11X2)+2(6X1) |
Inside material | SUS304 | Boxes(2 Inches) | 34 |
Castor | Universal | Samples(2ml) | 3400 |
Electrical Data | Dimensions | ||
Voltage frequency( V/Hz) | 220V 50Hz/60Hz | Package size(W*D*H)(mm) | 770*705*1090 |
Power（W) | 500W | Exterior size(W*D*H)(mm) | 680*580*935 |
Current（A) | 2.53A | Interior size(W*D*H)(mm) | 480*380*665 |
Power consumption | 4.79kWh/24h | Shipping CBM | 0.6 |
Noise(db) | 50 | N.W/G.W(kg) | 65/70 |
Alarms | Accessories | ||
High/low temperature | Y | SUS304 Racks | Optional |
Power failure | Y | Data logger | Optional |
Abnormal voltage | / | Baskets | Optional |
Sensor error | Y | Gloves | Optional |
Door ajar | / | ||
Filter screen check | / | ||
Thermostat failure | Y | ||
Low battery | / | ||
Condenser clean | / | ||
High ambient temperature | / | ||
Power failure backup | / | ||
