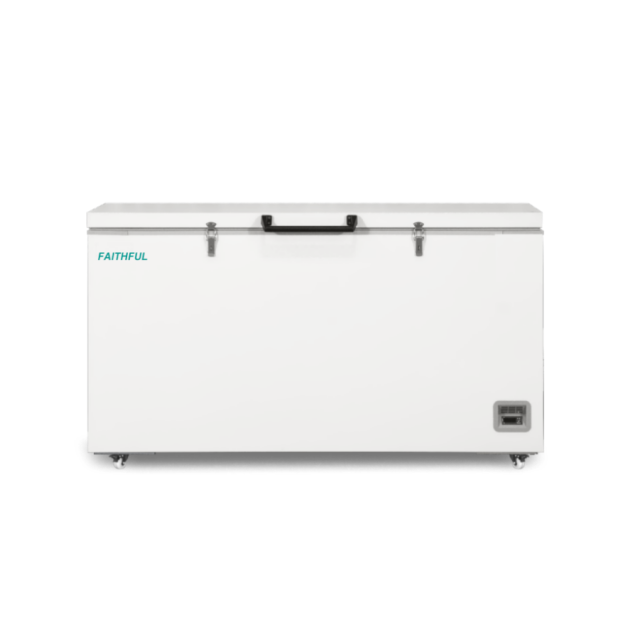

-86℃ Ultra Low Temperature Freezer---FSF-86H485

Availability:
Quantity:
  • FSF-86H485

  • FAITHFUL

Super-cooling technology: Auto-ascade cooling system is designed with a powerful compressor which drives the unique mixed refrigerant for fast cabinet cooling down. The system is simple in construction, energy saving and easy maintenance.

Advanced thermal insulation: Advanced insulation materials and interior design of multiple independent spaces make ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of better thermal insulation performance and energy saving.

Dixell Temp. Controller: Pricise and stable control.

3 types of alarms:Audible and visual alarms.

Multi-layer sealing design: Better sealing, better insulation.

Eco-friendly:CFC-free refrigerant & insulation.

Energy saving:More efficient cooling system.


Performance

Refrigeration System

Alarms

Cooling method

Direct Cooling

Refrigerant

R4001(mxed gas)

High/low temperature

Y

Defrost

Manual

Temp. controller

Microprocessor

Power failure

/

Temperature range

-40℃~-86℃

System

Auto-cascade

Sensor error

Y

Ambient temperature

10~32℃

Sensor

PT 100

Door ajar

/

Display

Digital display

Compressor brand/QTY

SECOP/1

Thermostat failure

Y

Access port QTY/Dia.

1/25mm

Insulation

PURF

Power failure alarm(For controller)

/

Outside material

Power coated steel

Racks

30(11X1,6X1)



Inside material

Stainless steel

Boxes (2 Inches)

300



Castor

Y/4  2Universal+2Fixed

Samples(2ml)

30,000



USB port

/

Shelf/drawer QTY

6 Baskets optional



Electrical Data

Dimensions

Other

Voltage frequency(V/Hz)

220V 50/60Hz; 110V/60Hz

Package size(W*D*H)(mm)

1750*873*1065

Data logger

Optional

Power(W)

670W

Exterior size(W*D*H)(mm)

1695*840*962

SS basket

Optional

Current(A)

3.16A

Interior size(W*D*H)(mm)

1455.5*525.2*674

Frozen rack

Optional

Power consumption

11.41KWh/24h

Capacity(L/cu.ft)

485/17.12

CO2/LN2 back up system

/

Noise(db)

54.5

N.W/G.W(kg)

130/150

Gloves

Optional





RS485 port

/
