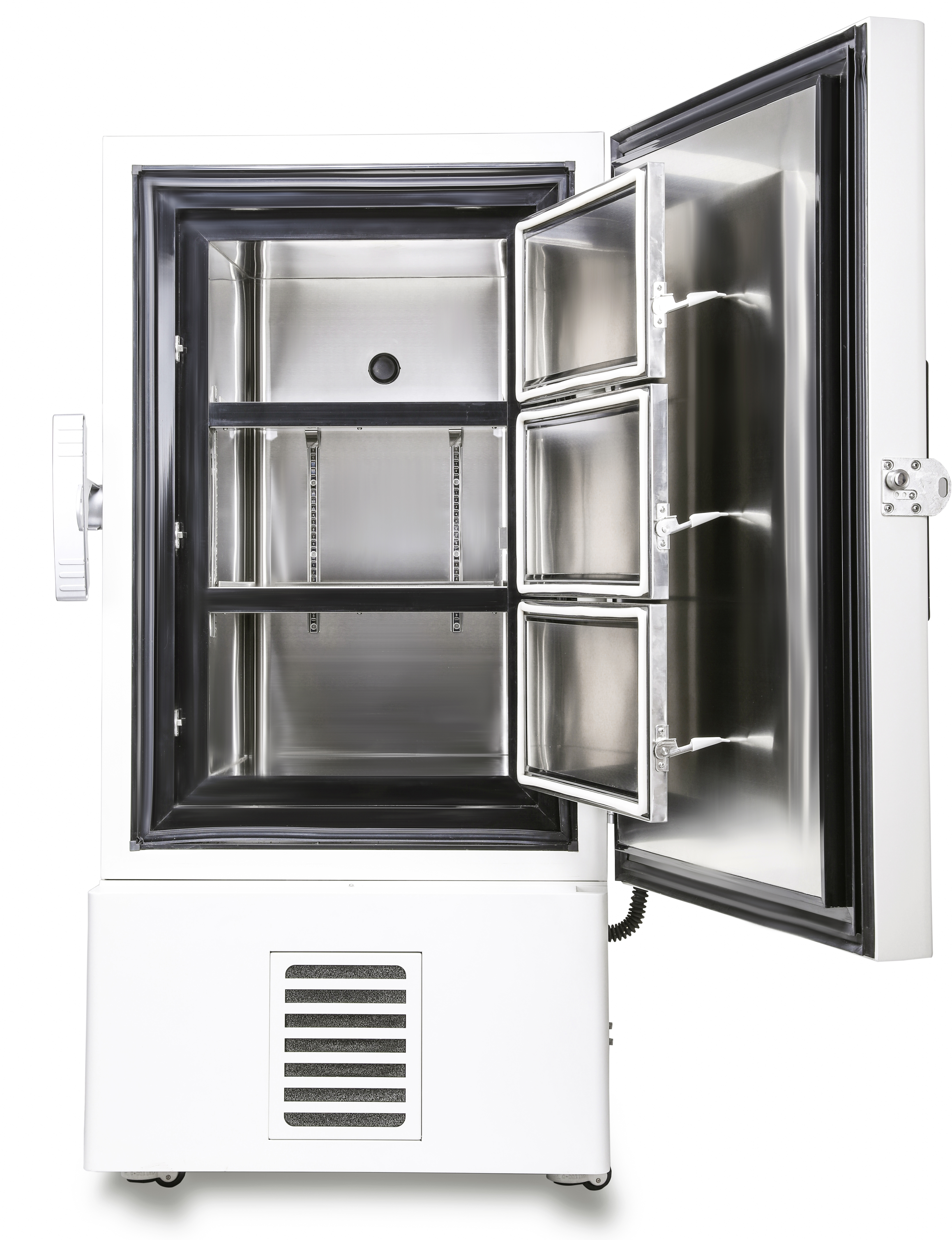

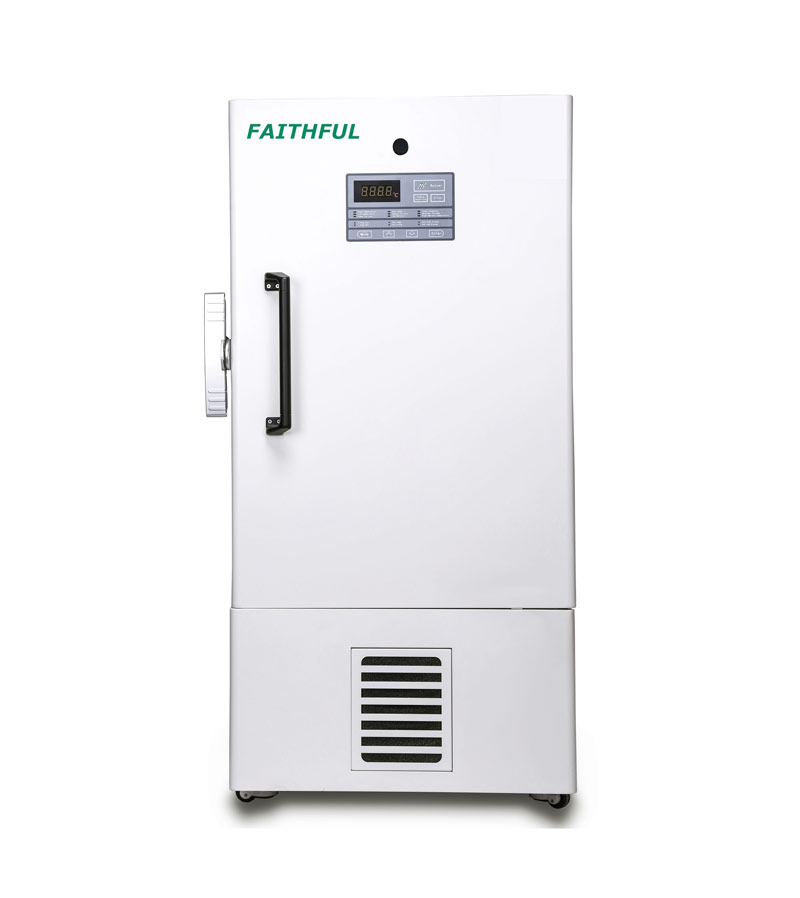

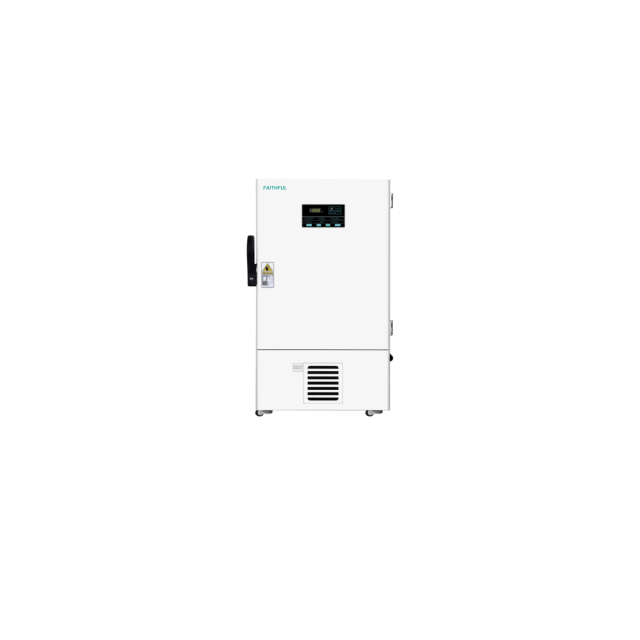

-86℃ Ultra Low Temperature Freezer -FSF-86V188E

Ultra Low Temperature Freezer are specially designed to store samples products.
Availability:
Quantity:
  • FSF-86V188E

  • FAITHFUL

Features

  • Ambient temperature :10℃~32℃.

  • Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.

  • Independent research and development of mixed refrigerant can make device save energy 50%.

  • Better uniformity, uniformity is increased 30%.

  • The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.

  • 304 stainless steel inner chamber for friendly using and easy cleaning.

Safety

  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

  • Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm and Thermostat failure.

  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

  • Keyboard lock, password protection to avoid set parameter randomly.

  • Special noise reduction design.

Humanized design

  • 4 casters with stopper for easy moving and fixation.

  • Standard 25mm test hole for easy connecting to temperature monitoring systems.

  • 2 adjustable shelves for easy storing.

  • Removable condenser dust gauze convenient for cleaning and maintenance.

  • Removable inner door for user to defrost and clean.

  • Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.

PerformanceTemperature Range
-40~-86°C
Ambient Temperature
+10~+32°C
Controller
Microprocessor
Display
Digital Display
Refrigeration System
Compressor/Brand
1/CUBIGEL
Refrigerant
Mixed
Cooling Type
Direct cooling
Defrost Type
Manual
Electrical DataPower Supply(V/Hz)
220/50~60; 110/60
Rated Power(W)
660
Electrical Current(A)
4.3
Power Consumption
8.2 kWh/24h
Power failure backup system
72H
DimensionsCapacity
188L
Interior Size(W*D*H)
465*465*830mm
Exterior Size(W*D*H)
850*930*1595mm
Package Size(W*D*H)
880*910*1820mm
N.t./G.t.(approx)
174/224kg
Loading Qty(20'/40'/40'H)
12/26/26
AlarmHigh/Low Temperature
Y
Sensor Error
Y
Power Failure
Y
Door ajar
Y
High Ambient temp.
Y
Condenser clean
Y
Low battery
Y
Filter screen check
Y
Abnormal voltage
Y
Thermostat failure
Y
AccessoriesData logger
Optional
Caster
4
USB port
Y
Inner Door/shelf
3/2
Test hole
1/25MM
Remote alarm port
Y
CO2 back up system
Optional
LN2 back up system
Optional
Cold storage box loading QTY
10800
