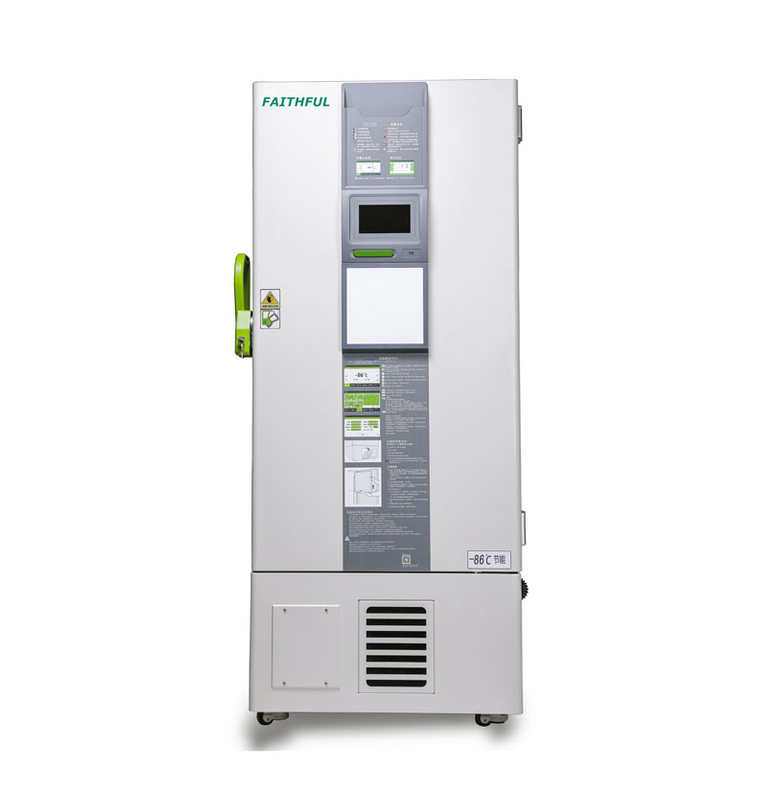

-86℃ Ultra Low Temperature Freezer- FSF-86V338

Mether Ultra Low Temperature Freezer are specially designed to store samples products.
Availability:
Quantity:
  • FSF-86V338

  • FAITHFUL

Super-stable Cooling System:As the most proven ultra-low temperature refrigeration technology in the world, the cascade refrigeration technology has the characteristics of stable performance, easy maintenance and long service life.

Advanced thermal insulation:Advanced insulation materials and interior design of multiple independent spaces make ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of better thermal insulation performance and energy saving.

7″ LCD touch screen:Easy operation and observation.

Smart Operating System:Authorities, alarms, curve & events

Multi-layer sealing design:Better sealing, better insulation.

Eco-friendly:CFC-free refrigerant & insulation

Energy saving:More efficient cooling system.


Model

FSF-86V338

FSF-86V408

FSF-86V588

FSF-86V728

FSF-86V838

Cooling type

Direct Cooling

Defrost

Manual

Temperature range

-40℃~-86℃

Ambient temperature

10~32℃

Display

7'' LCD touch screen

Access port QTY/Dia

2/25mm

Outside material

Color sprayed steel

Inside material

stainless steel

Castor

Universal

Refrigerant

HC (R290&R170)

Temp. controller

Microprocessor

System

Cascade system

Sensor

PT100

Compressor brand/QTY

SECOP/2

Capacity(L)

838

408

588

728

838

Insulation

PURF+VIP

Inner door material/QTY

Foamed SS/2

Racks(optional)

24*(5X5)

8*(5x4)+8*(4x4)

16*(5x5)

18*(5x4)+6*(6x4)

24*(5X5)

Boxes (2 Inches)-optional

600

288

400

504

600

Samples(2ml)--optional

60,000

28800

40000

50400

60000

Voltage

220V 50/60Hz or 110V/60Hz

Power(W)

720

650

690

710

720

Current(A)

8.64

8.95

8.33

8.48

8.64

Power consumption

11.27KWh/24h

10.10KWh/24h

10.77KWh/24h

11.54KWh/24h

11.27KWh/24h

Noise(db)

53

50

53

53

53

Package size(W*D*H)(mm)

1275*1165*2200

960*1024*2125

972*1180*2200

1320*1015*2200

1275*1165*2200

Exterior size(W*D*H))(mm)

1179*1135*1994.5

891*992*1945.5

891*1155*1994.5

1248*975*1994.5

1179*1135*1994.5

Interior size(W*D*H))(mm)

894*718*1310

606*575*1180

606*738*1310

963*558*1350

894*718*1310

N.W/G.W(kg)

397/430

292/317

335/353

380/395.5

397/430

USB Access

Y

Remote alarm Access

Y

RS485 Access

Y
