AE500S-H (70G)
Faithful

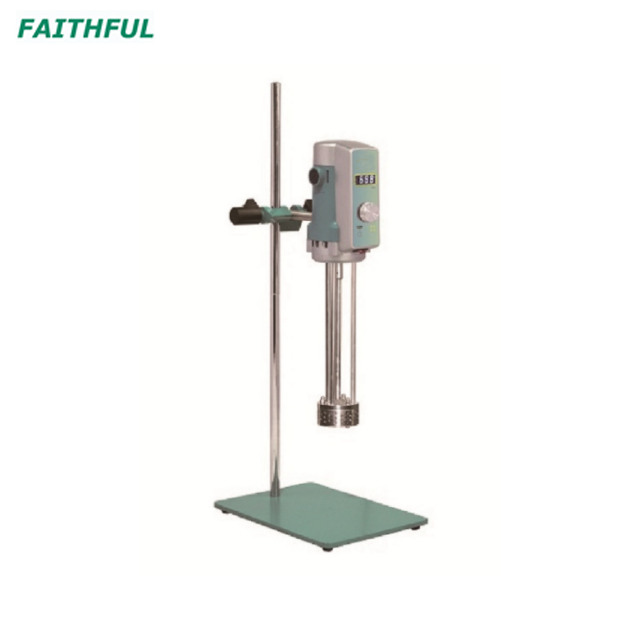

The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor,which is suitable for mixing low to medium and high viscosity liquid in laboratory or pilot plant, crushing granular materials and shearing emulsifying them in liquid medium.
The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor,which is suitable for mixing low to medium and high viscosity liquid in laboratory or pilot plant, crushing granular materials and shearing emulsifying them in liquid medium.
Model | AE500S-H(70G) |
Rated Voltage | AC220V |
Rated frequency | 50/60HZ |
Input Power | 850W |
Output Power | 500W |
Rated Torque | 34.1N.cm |
Working System | S1 (Continuity) |
Operation Control Method | Combined Control Knob |
Speed Control Type | Infinity |
Speed Regulation Range-No Load | 2000-14000rpm |
Running Dynamic Display | LED |
Maximum Torque Of Working Head | 34N.cm |
Maximum Linear Speed Of Motor | 20.5m/s |
Working Head Material | SS316L Stainless steel |
Working Head Diameter | 70mm |
Maximum/Minimum Immersion Height | 50/236mm |
Treatment Capacity (H2O) | 500-40000ml |
Maximum Processing Viscosity | 8000mPa.s |
Timing Control Range | 1-1000min |
Machine Size | 215*310*720mm |
Weight | 9.2kg |
Model | AE500S-H(70G) |
Rated Voltage | AC220V |
Rated frequency | 50/60HZ |
Input Power | 850W |
Output Power | 500W |
Rated Torque | 34.1N.cm |
Working System | S1 (Continuity) |
Operation Control Method | Combined Control Knob |
Speed Control Type | Infinity |
Speed Regulation Range-No Load | 2000-14000rpm |
Running Dynamic Display | LED |
Maximum Torque Of Working Head | 34N.cm |
Maximum Linear Speed Of Motor | 20.5m/s |
Working Head Material | SS316L Stainless steel |
Working Head Diameter | 70mm |
Maximum/Minimum Immersion Height | 50/236mm |
Treatment Capacity (H2O) | 500-40000ml |
Maximum Processing Viscosity | 8000mPa.s |
Timing Control Range | 1-1000min |
Machine Size | 215*310*720mm |
Weight | 9.2kg |
