I . Purpose Designed For Outdoors;
Real-Time NO2, CO, O3, SO2,PM2.5,PM10,TSP,Meteorological Parameter ;
Access Air Quality Data 24H / 365 Days; Remote WLAN And 4G Connectivity;
II. Optional:Wind Speed/Direction And Noise Sensors;Battery/Solar Power Optional

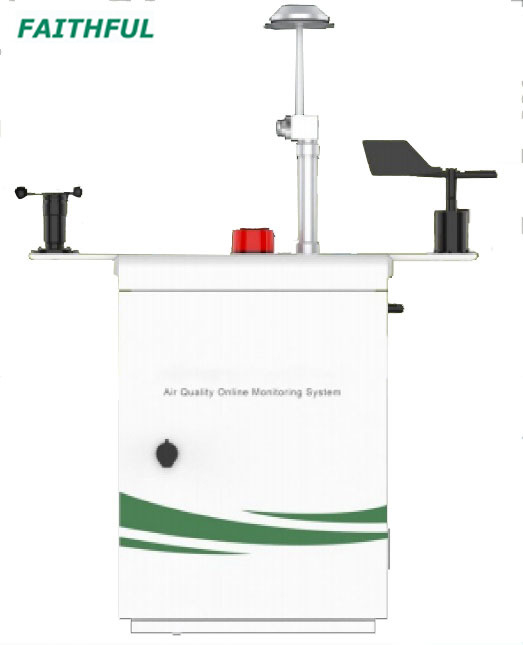

III. Air Quality Online Monitoring System Is An Instrument Based On The Principle Of Light Scattering, Providing NO2, CO, O3, SO2,PM2.5,PM10,TSP,Wind Speed & Direction, Temperature& Humidity, Noise Detection And Other Defensive And Accurate Quality Measurements;
IV. Application Scenario:
1.Street Intersections,Highways Etc
2.Petrochemicals, Mining,Steel Mills, Oil Refineries
3.Residential Complexes,Schools,Hospitals；
4.Forest Fire Alarm, Agricultural Straw Burning；
5.Garbage Disposal, Tourist Attractions；
| Product Name/Model | Air Quality Online Monitoring System/ES80A-A6 Diffusion / |
| Detection Method | Suction |
| Data Transmission | RS485 Modbus, 4G LTE |
| Preheat Time | 90 Seconds |
| Temperature | -20℃~50℃ |
| Humidity | 10%RH ~95%RH (No Condensation) |
| Power Supply | AC110Vor AC220V/50Hz, Optional Solar Power Supply |
| Power Consumption | 80W（MAX） |
| Host Size | 620*440*160MM |
| The Main Material | Cold Rolled Steel Plate |
| Installation Method | Outdoor Column Installation |
| Protection Class | IP65 |
| Gas Selection The Standard Configuration |
| Gas Factor | Measuring Range | Resolution | Indication Error | T90 |
| O3 | 1000ppb | 1ppb | ≤±5%FS | 120S |
| NO2 | 1000ppb | 1ppb | ≤±5%FS | 120S |
| SO2 | 1000ppb | 1ppb | ≤±5%FS | 120S |
| CO | 200ppm | 0.1ppm | ≤±5%FS | 120S |
| Gas Selection Optional Gases |
| Gas Factor | Measuring Range | Resolution | Indication Error | T90 |
| TVOC | 10ppm | 0.1ppm | ≤±10%FS | 120S |
| H2S | 20ppm | 0.1ppm | ≤±10%FS | 120S |
| NH3 | 20ppm | 0.1ppm | ≤±10%FS | 120S |
*Note: The Indication Error Is Measured In The Laboratory Environment.
Need Other Gases, Please Contact Us. |
| Particulate Technical Parameters |
| Project | Technical Indicators |
| Measuring Range | PM2.5（0-2000）ìg/m3 , PM10 (0-2000) ìg/m3 |
| Sampling Cutter | Cyclone Physical Cutter |
| Sampling Time | Adjustable, Default Five Minutes |
| Resolution | 1ug/m3 |
| Particle Size | PM2.5, PM10, TSP |
| Sampling Mode | Suction Type |
| Air Intake Heating | Heating And Dehumidifying According To Air Humidity |
| Malfunction Alarm | Real-Time Display |
| Zero Method | Automatic zero calibration |
| Specification Parameter Information |
|
|
|
|
| Meteorological And Other Parameters(Optional) |
| Monitoring Parameters | Range | Resolution | Accuracy |
| Temperature | -30℃--50℃ | 0.1℃ | ±1℃ |
| Humidity | 0-95%Rh | 1%Rh | ±5%Rh |
| Wind Speed | 0~60m/s | 0.1 m/s | ±1m/s |
| Wind Direction | 0-360° | 1° | / |
| Wind | Level 0-15 | Level 1 | / |
| Atmospheric Pressure | 600—1100hPa | 1 hPa | / |
| Noise | 30dB(A)~130dB(A)
(A-weighted) | / | ±3dB |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4mm (≤10mm)
±4% (>10mm) |
| Illumination | 0~200,000 Lux | / | ±7% (25℃) |
| UV Radiation | 0~400mW/ | 1mW/ | ±5% |
