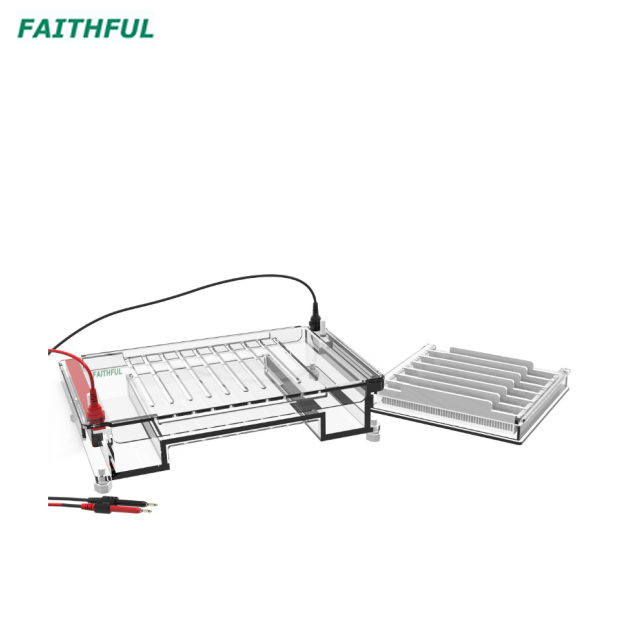

This product is designed for high-throughput nucleic acid horizontal electrophoresis.
It can process up to 350 samples in a single electrophoresis run.
The positioning slots on the gel tray allow for 4-row or 7-row sample comb configurations.
The dedicated gel caster enables convenient gel preparation with no leakage.
The perforated design of the lid allows effective heat dissipation and prevents vapor condensation.
The level adjustment knobs at the bottom enable precise leveling of the electrophoresis cell.
99.99% high-purity platinum electrodes offer superior electrical conductivity, corrosion resistance and anti-aging properties.
Gel Area (WxL):250x250 mm
250x120 mm
250x60 mm
Sample Combs:1.0 mm, 26-tooth / 52-tooth (compatible
Buffer volume: 1600 mL
with multi-channel pipette sampling)
Overall dimensions (LxWxH): 460x300x140 mm
