Large volume stainless steel cold trap with no inner coil inside, allowing for independent freeze-drying samples.
Cap type material rack, suitable for directly sealing penicillin bottles after freeze-drying.
Multiple external freezedrying bottles, suitable for simultaneous freeze-drying of multiple samples.
Design insulation cover with card slot method, reduce cold loss during pre freezing process, save energy, and prevent condensation.
Equipped with USB interface, capable of exporting freeze-drying data, facilitating userinfrmatn management.
Imported brand compressor with low cold trap temperature and strong water harvesting ability.
All stainless steel countertop, corrosion-resistant, easy to clean, unique bridge breaking design at the top of the cold trap, added insulation layer to avoid condensation and frost on the countertop.
Efficientair-cooledcondenser, using fanblades formed according to aerodynamics, improve heatcandissipationcapacityand save energy more.
Model
FD-18S
FD-18S-U
FD-18S-U Plus
FD-18T
FD-18T-U
FD-18T-U Plus
FD-18P
FD-18P-U
FD-18P-U Plus
FD-18PT
FD-18PT-U
FD-18PT-U Plus
Type

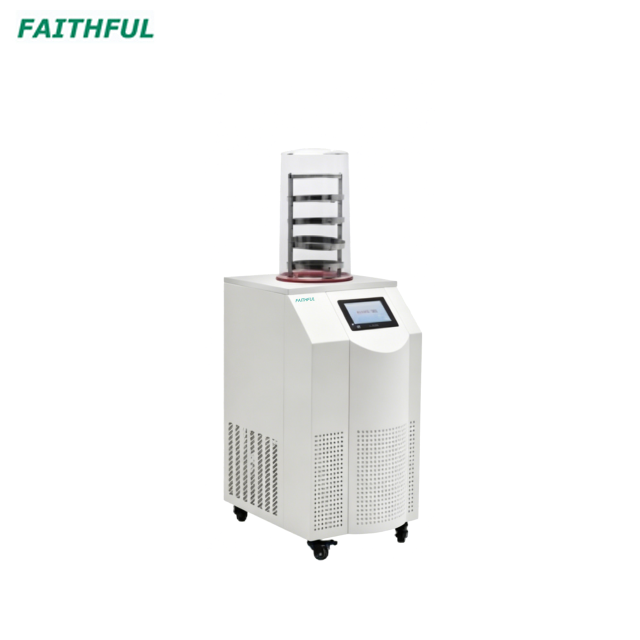

Standard chamber

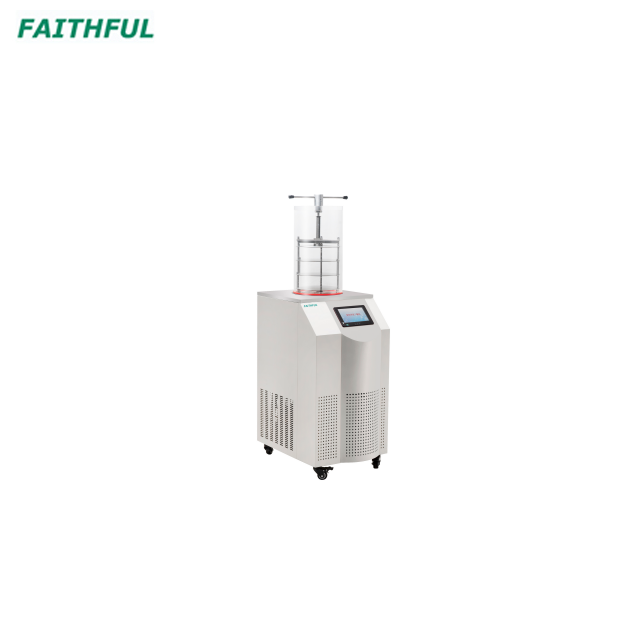

Stoppering chamber

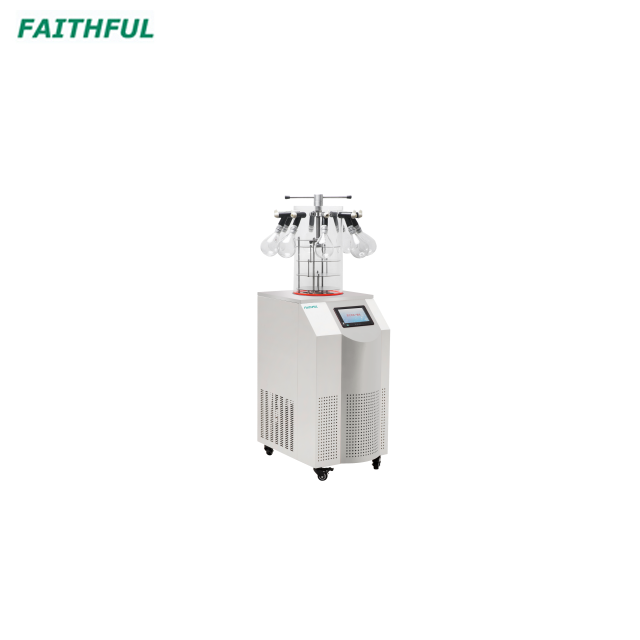

Standard chamber with 8 port manifold
Stoppering chamber with 8 port manifold
Final condenser temp (C)
-60 or -80 (Optional)
Vacuum degree (Pa)
＜10
Condenser volume (L)
28
Freeze drying area (m2)
0.18 or 0.27 (optional)
0.135
0.18 or 0.27 (optional)
0.135
Water Condenser Capacity(Kg/24H)
6
6
6
6
Qty of shelf
4 or 6
3
4 or 6
3
Material loading capacity/shelf (mL)
450
450
450
450
Material loading capacity(mL)
1800 or 2700
1350
1800 or 2700
1350
Manifold
/
/
8 pcs
8 pcs
USB interface
Y
Y
Y
Y
Drying Chamber (Standard)
Transparent acrylic
Vacuum pump
Standard model: 2XZ-4**; Speed: 2.2L/S
Control system
Microprocessor, touch screen
Ultimate Vacuum(Pa)
Economic: 1 Classic and Premium:0.6 for-60 ℃/0.3 for-80℃
