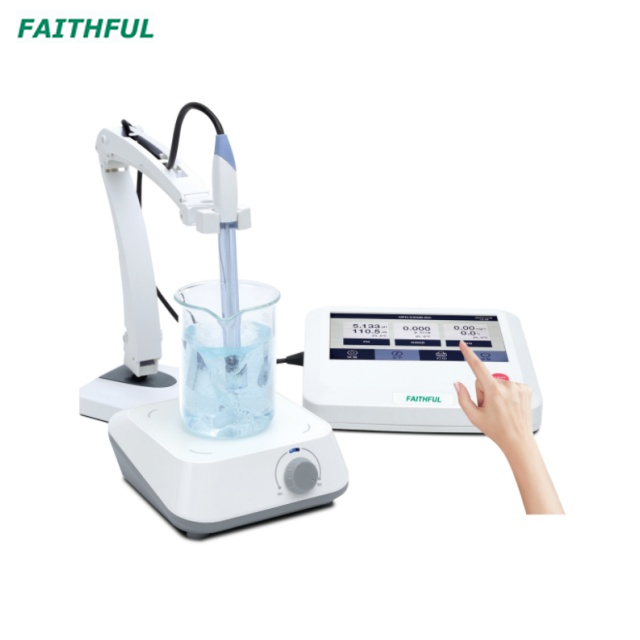

Touch screen Series | Single parameter | Multi-parameter |
Model | PH100T | EC100T | DO100T | PC100T | PD100T | CD100T | PCD100T |
Parameter | pH/mV.℃ | √ | - | - | √ | √ | - | √ |
mV(ORP).℃ | √ | - | - | √ | √ | - | √ |
Cond/TDS/Sal/Res.C | - | √ | - | √ | - | √ | √ |
DO.℃ | - | - | √ | - | √ | √ | √ |
pH | Measurement range | (-2.000 - 20.000)pH | √ | - | - | √ | √ | - | √ |
Resolution | 0.01/0.001 | √ | - | - | √ | √ | - | √ |
Accuracy | ±0.002pH ± one digit | √ | - | - | √ | √ | - | √ |
Calibration points | 1-5 pts auto | √ | - | - | √ | √ | - | √ |
ATC range | (0.0-100.0)℃/(32.0-212.0)°F | √ | - | - | √ | √ | - | √ |
ORP | Measurement range | (-1999.9-+1999.9)mV | √ | - | - | √ | √ | - | √ |
Resolution | 0.1/1 | √ | - | - | √ | √ | - | √ |
Accuracy | ±0.03%F.S ± one digit | √ | - | - | √ | √ | - | √ |
Conductivity | Measurement range | 0 - 2000.0mS/cm,Auto divided by range
Match test range:0 - 200mS/cm
TDS:0 - 100.0g/L(Factor adjustable)
Resistivity:5.000Ω·cm - 100.0MΩ·cm
Salinity:(0.00 - 100.00)ppt | - | √ | - | √ | - | √ | √ |
Calibration points | One point auto | - | √ | - | √ | - | √ | √ |
Resolution | 0.001 | - | √ | - | √ | - | √ | √ |
ATC range | (0.0 - 50.0)°C/(32.0 - 122.0)℉ | - | √ | - | √ | - | √ | √ |
Accuracy | ±0.5%FS ± one digit | - | √ |
| √ |
| √ | √ |
DO | Measurement range | (0.00 - 20.00)mg/L | - | - | √ | - | √ | √ | √ |
Accuracy | ±0.30 mg/L | - | - | √ | - | √ | √ | √ |
DO saturation | (0.0 - 200.0)% | - | - | √ | - | √ | √ | √ |
Automatic barometric pressure compensation | (0 - 200.0) kPa | - | - | √ | - | √ | √ | √ |
Automatic temperature compensation | (0.0 - 50.0)°C/(32.0 - 122.0)°F | - | - | √ | - | √ | √ | √ |
Manual salinity compensation | 0 - 45ppt | - | - | √ | - | √ | √ | √ |
Temperature | Measurement range | (-10.0- 135.0)°C/(14.0 - 275.0)°F | √ | √ | √ | √ | √ | √ | √ |
Accuracy | ±0.2°℃ | √ | √ | √ | √ | √ | √ | √ |
Others | Data export | PC/Printer/USB Stik | √ | √ | √ | √ | √ | √ | √ |
Power supply | DC12V | √ | √ | √ | √ | √ | √ | √ |
Data storage | No, parameter, value, temp, date, and time. | 500groups | 500groups | 500groups | 1000groups | 1000groups | 1000groups | 1500groups |
Test kit | Meter | √ | √ | √ | √ | √ | √ | √ |
Glass refillable combination pH probe 201G | √ | - | - | √ | √ | - | √ |
Stainless-steel temperature probe TEMP-01 | √ | - | - | √ | √ | - | √ |
Glass ATC conductivity probe CON201TG, K=1.0 | - | √ | - | √ | - | √ | √ |
Polarographic DO probe DO01-2M | - | - | √ | - | √ | √ | √ |
pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each | √ | - | - | √ | √ | - | √ |
Standard Cond solution 84μS/1413μS/12.88μS/cm,50mL, one for each | - | √ | - | √ | - | √ | √ |
DO Membrane refill solution DOS-01, 30mL,1btI | - | - | √ | - | √ | √ | √ |
DO Membrane sensor caps DOSC: 3pcs/group, 1pkg | - | - | √ | - | √ | √ | √ |
PC cable: 1pc | √ | √ | √ | √ | √ | √ | √ |
Flexible probe holder F01: 1pc | √ | √ | √ | √ | √ | √ | √ |
Magnetic stirrer: 1pc | √ | √ | √ | √ | √ | √ | √ |
Power adaptor | √ | √ | √ | √ | √ | √ | √ |
