| Model | DGF-
4A | DGF-
5A | DGF-
6A | DGF-
7A | DGF-
8A |
DGF-
4AB | DGF-
5AB | DGF-
6AB | DGF-
7AB | DGF-
8AB |
| Cycle Mode | Fan - forced circulation |
| Function | Temp. Range | RT+10-250℃ | RT+10-300℃
|
|
Temp. Resolution
Ratio | 0.1℃ |
| Temp. Motion | ±1℃ |
| Temp. Uniformity | ±3% |
| Structure | Inner Chamber | A: Iron inner chamber
AB：Stainless steel inner
chamber |
|
|
| Outer Shell | Galvanized sheet electrostatic
spraying exterior |

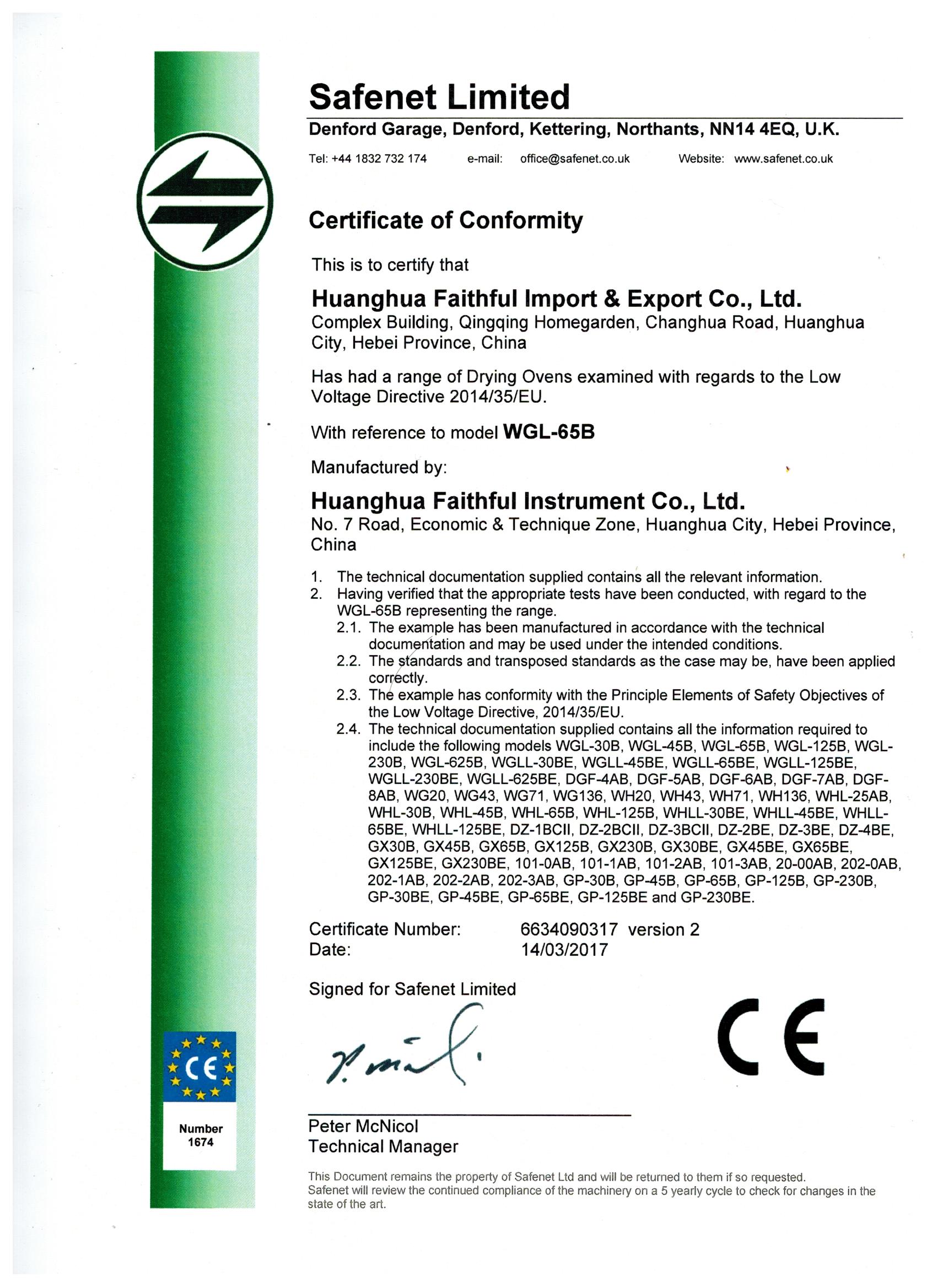

| Insulation layer | High quality rock wool board(with CE) |
| Heater | Stainless steel heating tube |
| Power Rating | 6kW | 6.6kW | 9kW | 12kW | 15kW |
| Exhaust hole | On top or side |
| Controller | Temp. Control
mode | PID intelligent control or Multi - segment
programmable control ( optional ) |
|
Temp. Setting
mode | Touch button setting |
Temp. Display
mode | LCD Digital Display |
| Timer | 0-9999min (with timing wait function)） |
| Operation Function | Fixed temperature operation,
timing function, auto stop. |
| Additional Function | Temperature deviation correction,
menu locked, power-off memory |
| Sensor | PT100 |
| Safety Device | One key to start overheat power off |
| Specification | Inner Chamber
size (W*L*H)
(mm) | 800*800
*1000 | 1000*1000
*1000 | 1000*1000
*1300 | 1200*1200
*1300 | 1600*1200
*1600 |
|
Exterior size
(W*L*H)(mm) | 940*1000
*1400 | 1040*1200
*1400 | 1230*1200
*1670 | 1330*1400
*1670 | 1750*1400
*2070 |
Packing size
(W*L*H)(mm) | 1060*1090
*1520 | 1260*1290
*1520 | 1350*1300
*1890 | 1550*1500
*1890 | 1950*1500
*1910 |
| Volume | 640L | 1000L | 1300L | 1870L | 3070L |
| Shelf Number | 11 | 11 | 11 | 11 | 12 |
| Load Per Rack | 30kg |
| Shelf Space | 70MM | 100MM
|
Power Supply
(50/60HZ) | 380V |
| NW/GW (kg） | 200 | 260 | 350 | 480 | 800 |
| Accessory | Shelf | 2 |
|
| Shelf frame | No |
| Optional Accessories | Spare shelf, Program Controller ,RS485 interface, Printer, Remote Control Products of different specificationa can be customized according to customer requirements. |
