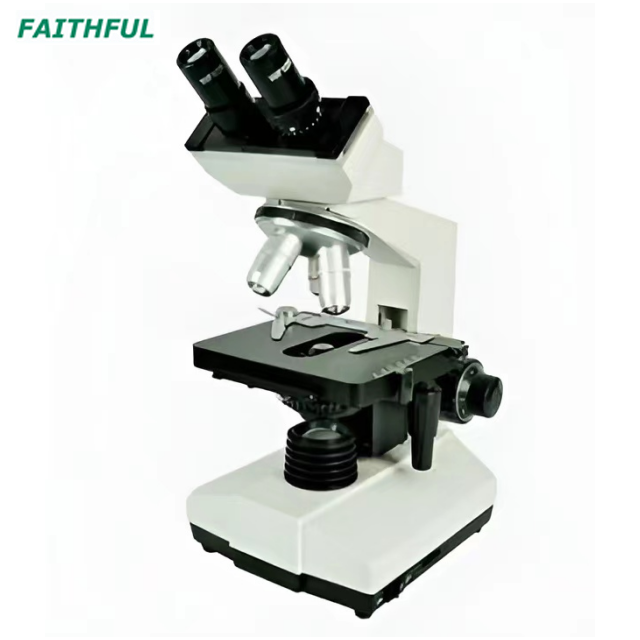

FSF-701BN
FAITHFUL
This series microscope is a bigger and basic model and high precisioninstrument designed and produced by our company.
It is sepcially designedfor clinical examination and teaching demonstration in medical and healthestablishments, Laboratories, agricultural science and technology field,research institutes.
It is used for routine. work and research in biology.bacteriology cytology and pharmacology.
This series microscope is a bigger and basic model and high precisioninstrument designed and produced by our company.
It is sepcially designedfor clinical examination and teaching demonstration in medical and healthestablishments, Laboratories, agricultural science and technology field,research institutes.
It is used for routine. work and research in biology.bacteriology cytology and pharmacology.
Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(Soil) |
Head | Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45° Inclined,360°Rotatable |
Stage | Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm |
Condenser | ABBE Condenser: N.A.1.25; Q2-430mm Iris Diaphragm and 32 Fiter |
Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 25mm, Precision:0.002mm |
Illumination | Optional: Built-in Adjustable Brightness 1W LED lamp; 6V/20W Halogen Lamp |
Optional | 1.WF10X,WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
Net Weight | 6kg |
Package | 1set/Foam + Carton Carton Dimension: 33X28X42cm 2sets/Foam+Carton Carton Dimension: 58X36X45cm |
Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(Soil) |
Head | Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45° Inclined,360°Rotatable |
Stage | Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm |
Condenser | ABBE Condenser: N.A.1.25; Q2-430mm Iris Diaphragm and 32 Fiter |
Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 25mm, Precision:0.002mm |
Illumination | Optional: Built-in Adjustable Brightness 1W LED lamp; 6V/20W Halogen Lamp |
Optional | 1.WF10X,WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
Net Weight | 6kg |
Package | 1set/Foam + Carton Carton Dimension: 33X28X42cm 2sets/Foam+Carton Carton Dimension: 58X36X45cm |
