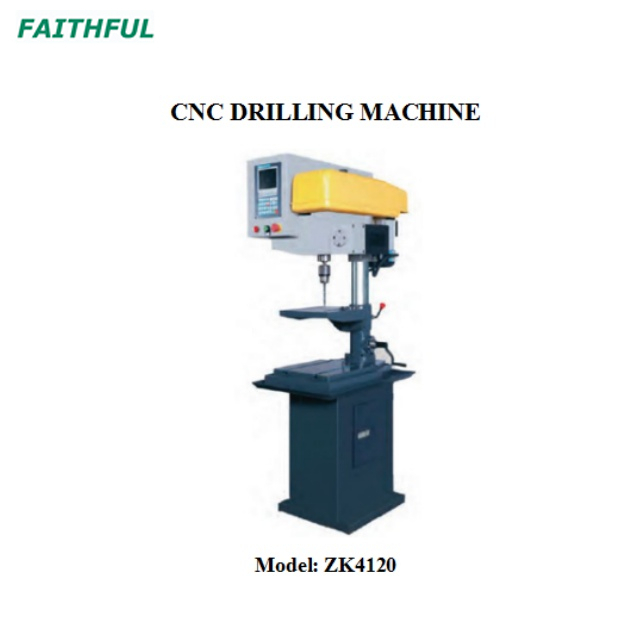

CNC DRILLING MACHINE

Availability:
Quantity:
Inquire Add to Basket

  • ZK4120

  • FAITHFUL

8.4 inch true color LCD monitor,
Bus connection interface, Both horizontal and vertical profiles. The front end reserves the U disk interface, and the back end reserves the RS232 serial communication interface.16 operation panels IO are reserved on the back side of the system Provide differential type external handwheel interface.


Z-axis travel(mm)

125

Distance between spindle end to table(mm)

630

Distance between spindle center to column surface (mm)

240

Table size mm

280 x 300

T-slot （widex number xspace）

14x2x200mm

Allowable load kg

50

Motor of spindle kw

1.1

Speed of spindle

365-3150 r/min

Spindle taper(mm)

MT2

Motor of Z axis

5 Nm

Rapid feed rate mm/min

4

Cutting feed rate mm/min

0.5

Positing feed rate mm

0.06

Repeat ability

0.04

Power requirement KW

1.3

G.W/N.W(kg)

170

Packing size(cm)

82×52×113


CNC DRILLING MACHINE.pdf
