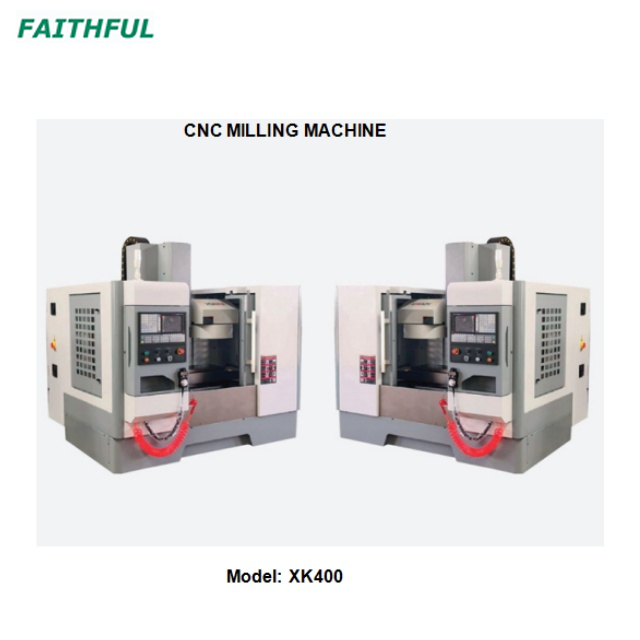

CNC MILLING MACHINE

Availability:
Quantity:
Inquire Add to Basket

  • XK400

  • FAITHFUL

Specification
X axis450mm
Y axis300mm
Z axis450mm
Distance from spindle nose to wrok tabel surface100-550mm
Distance from differernce383mm
X axis rapid feed speed12m/min
Y axis rapid feed speed12m/min
Zaxis rapid feed speed8m/min
Cutting feed1-10m/min
Three axis servo motor torque 16/6/7.7N.M
Table size900X280mm
Max.loading capacity200kg
Height of working table from floor800 mm
T-slot3x16x110mm
Connection typeBelt type
Speed8000rpm
Spindle taperBT40
Spindle motor3.7kw
Positioning accuracy (standard)±0.005/300mm
RE-positioning accuracy (standard)±0.003mm


CNC Milling machine.pdf
