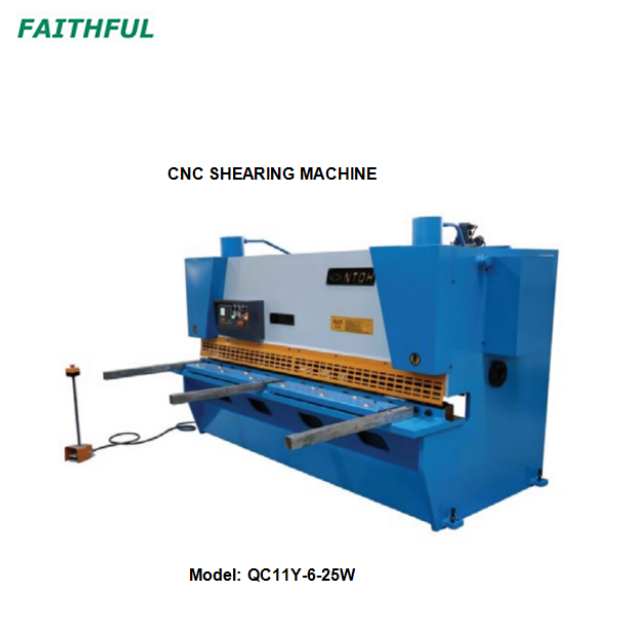

CNC Shearing Machine device is a very suitable for torsional axis shearing machine, providing solutions for most of the wiggle or gate machine both complete and economy, with high performance, flexible configuration, compact structure, easy to use, high reliability characteristicServo control, can realize the back gauge and high accuracy of control block. The gap (G-axis) is controllable. Unilateral and bilateral location to improve the positioning precision and reduce screw clearance. The action cut is controllable. Pneumatic feeding causes to convey the material to be nimble.Back gauge can automatically home.Back gauge can be adjusted through the manual keys. The pages of system parameter and diagnosis are hidden, requires a specific password can enter into.
Advanced integrated hydraulic system with an excellent reliability.
The rolling guide with 3-point support and improves the shearing quality.
Rapidly, accurately and conveniently adjusting the blade clearance with the hand wheel.
The rectangular Monoblock blades featuring long lifetime with 4 cut-ting edges.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.
The adjustable rake angle can minimize plate deformation.
Shearing in sections; shadow-line cutting.
Back gauge control.
BUS mode control servo system.
Stroke length limitation.
Double programmable digital output.
Program memory of up to 40 programs up to 25 steps per program.
One side positioning.
Retract function.
