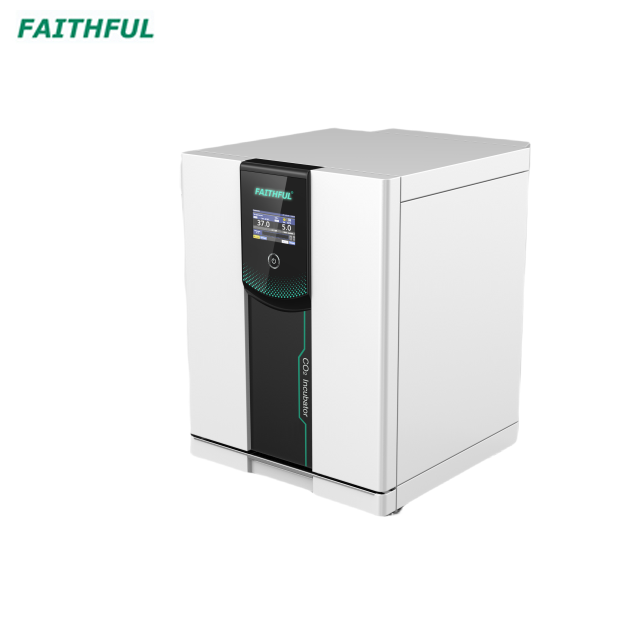

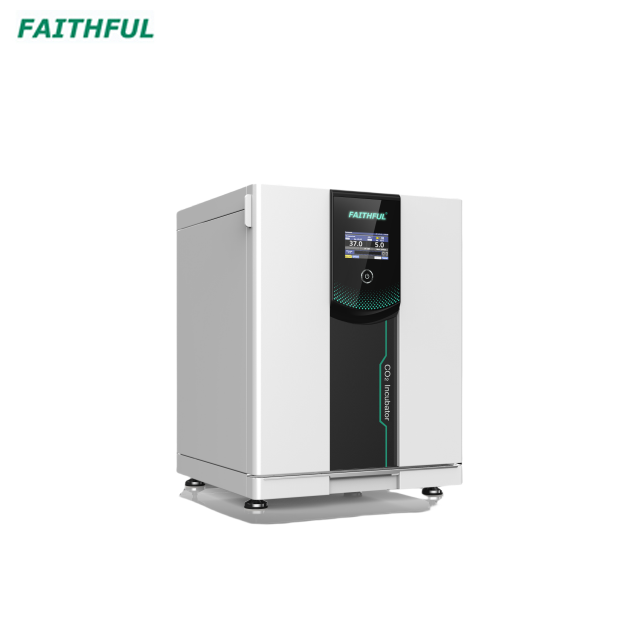

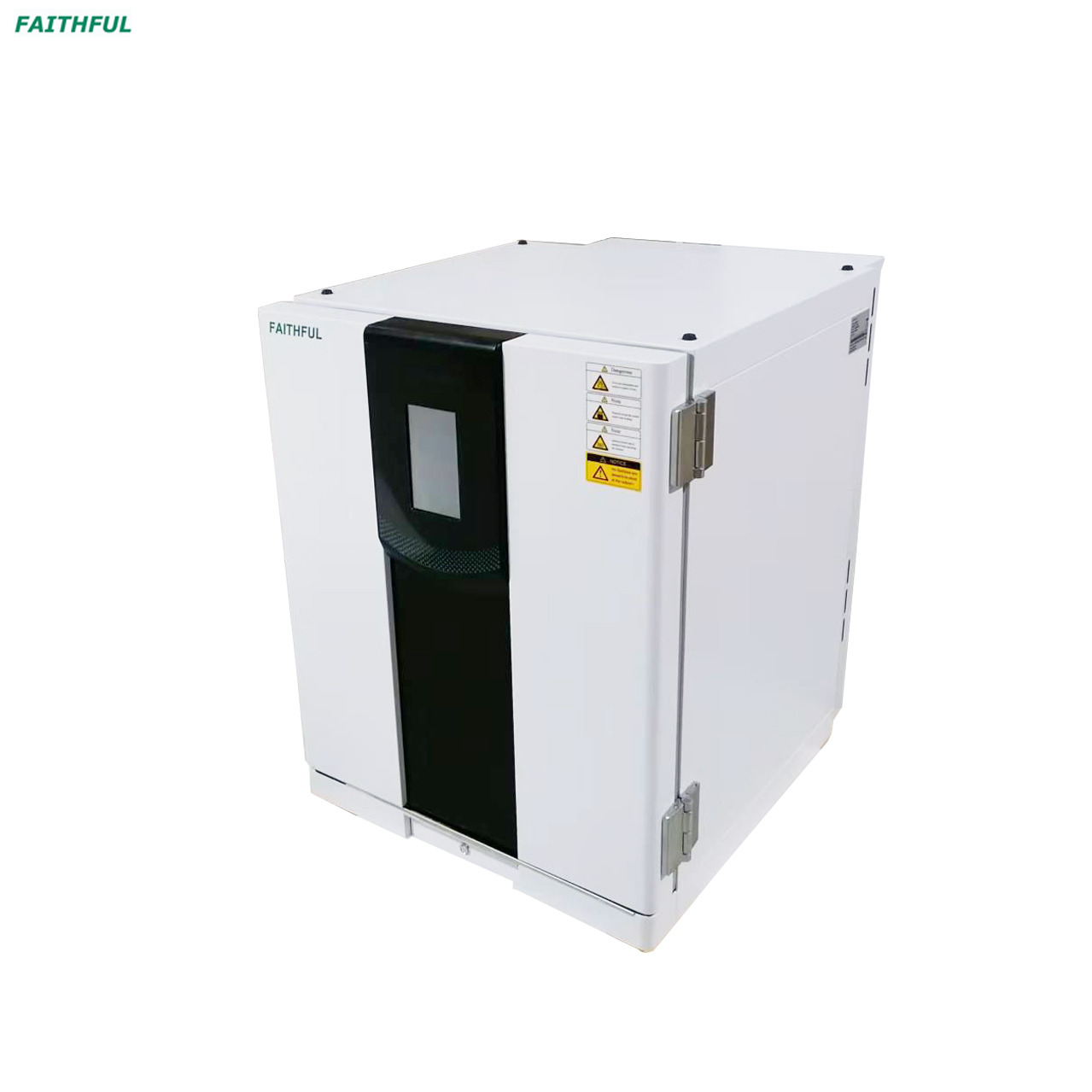

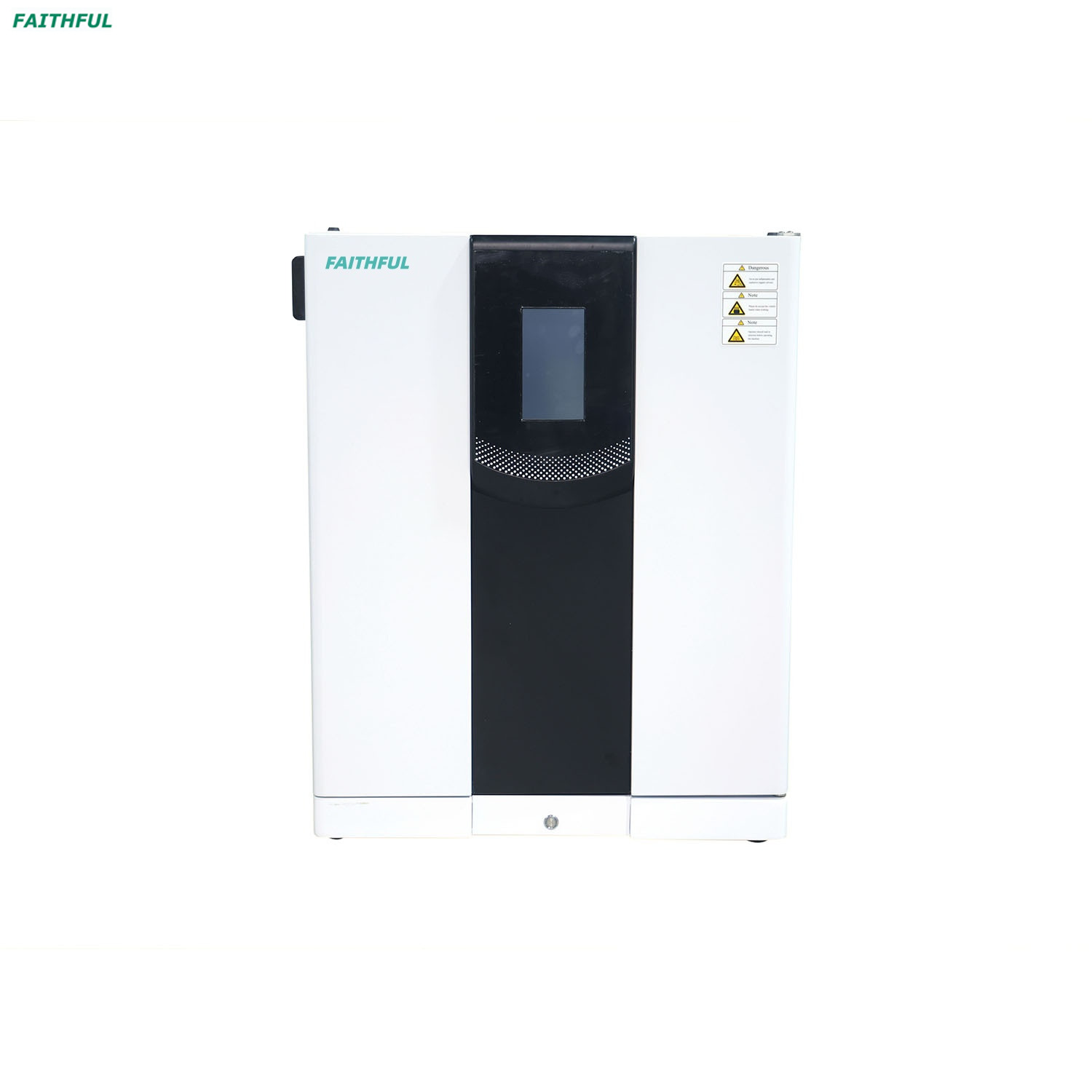

CO2 Incubator

Availability:
Quantity:
  • FC-50 FC-80 FC-150 FC-180

  • Faithful

1. Full-color 5.0-inch touch screen.

2. Standard imported infrared high-precision CO2 concentration sensor.

3. Has three levels of authority management function, with ultraviolet sterilization, wetheat sterilization, high temperature sterilization three sterilization methods.

4. Six side heating air jacket heating system, while the design of a reasonable air ductmechanism, good temperature uniformity, heating, rapid return temperature.

5. Adopts chassis reservoir design with large evaporation area and fast moisture return.With a door heating device, can avoid the inner door glass condensation. The productis equipped with high efficiency filter and intake filter to ensure the cleanliness of the airin the working room.


Model

FC-50

FC-80

FC-150

FC-180

Heating Type

Air Jacket

Temp. rango

RT+5-55℃

Temp. resolution

0.1℃

Temp. ffuctuation

±0.1℃

Temp. unitormity

±0.3℃

CO2 Sensor

Infrared Sensocimeasuring range: 0.0-21.0%

CO2 control rango

0.0-20.0%

CO2 control accuracy

±0.1%

Inner Chamber

Heating stoel

Outer Shell

Cold-Roll Steel Sheet,Surface electrostatic spraying

Insulating layer

Polyurethane

Heater

Heating sheet

Humidity Method

Disk humidifier

Rated power

0.4kW

0.5kW

0.6kW

0.7kW

Gas vent

27mm rear (with test hole function)

Other

HEPA filter

Temp. Controi Mode

PID contral

Temp. Setting Mode

5.0-inch touch screen

Temp. Display Mode

Temperature displiayed on left, concentration displayed on right screen

Timer

0-9999 minutes (with timing wait function)

Operation Function

Fixed value operation, timed operation, automatic stop

Stertlization function

Uv sterilization, wet heat steriization,Sterilization at high temperature 140/180℃

Additional function

Sensor deviation comection, temperature overshoot sell-tuning. intemal parameter locking. power olf parameter memory

Sensor

PT100, water level sensor, infrared CO2 sensor

Safety device

High temperature alarm, concentration alarm, other alarm

Irner Chamber(W'D'H)

345*375*388

404*439*454

509*472*632

540'500'670

Exterior Size(W"D"H)

500*500*655

585*585*766

593*746*842

629*791'893

Packing Sze (W"D"H)

620*620*855

705*705*966

713*866*1042

749*911*1093

Volume

50L

80L

150L

180L

Max. Shelf Number

4

5

6

7

Load per Shelf

15kg

Shelf Space

35mm

Supply(50/60HZ) Current Rating

AC220V/1.8A

AC220V/2.3A

AC220V/2.7A

AC220V/3.2A

N.WIG.W(kg)

55/70

97/112

93/108

115/130

Standard Shell number

2

Standard Sheif rack

4

Optional Accesssories

(Optional 90 ℃ wet heat sterllization carton dioxide indrared sensor ) Shelf, printer
