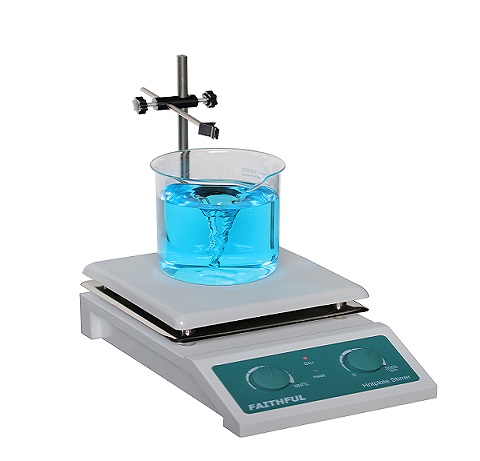

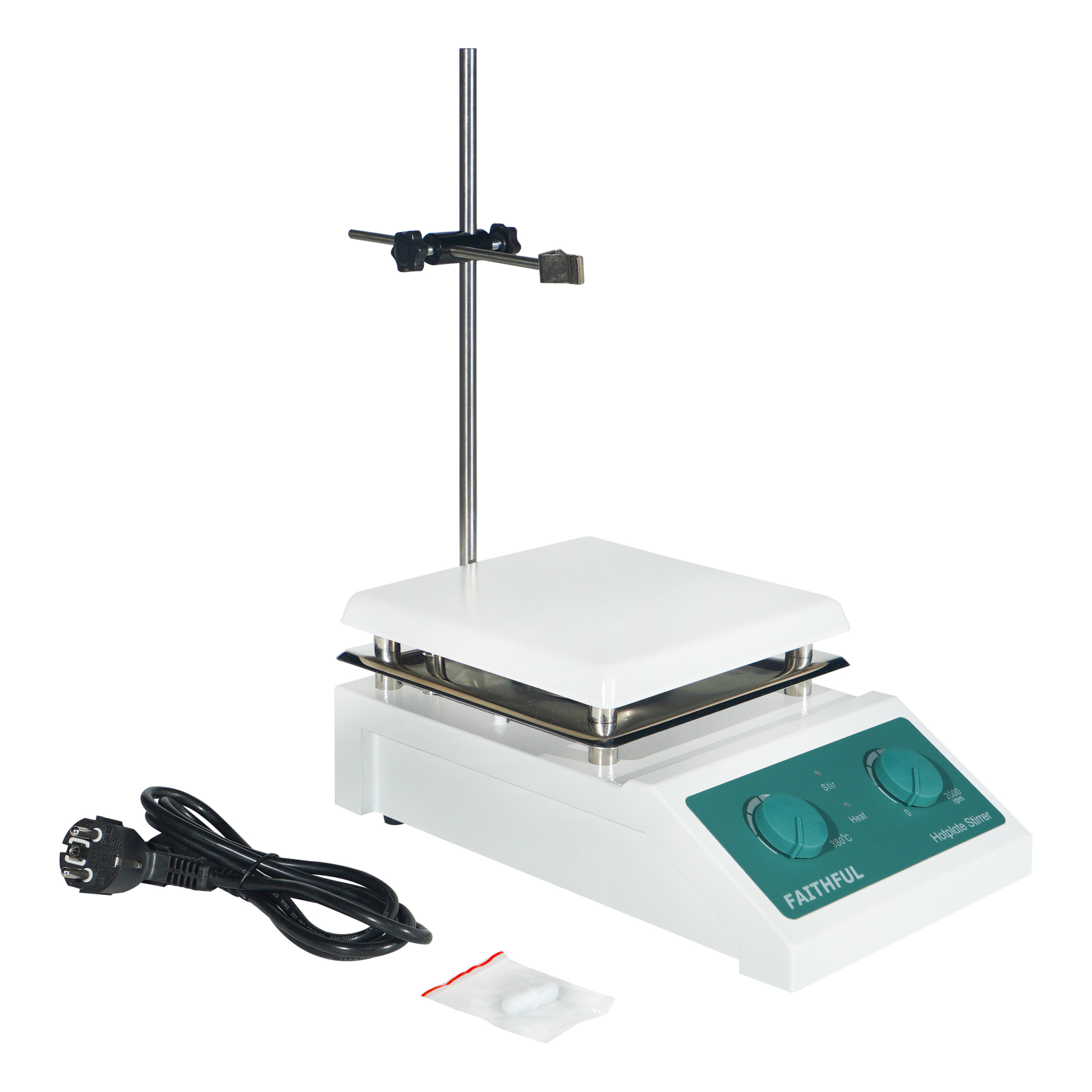

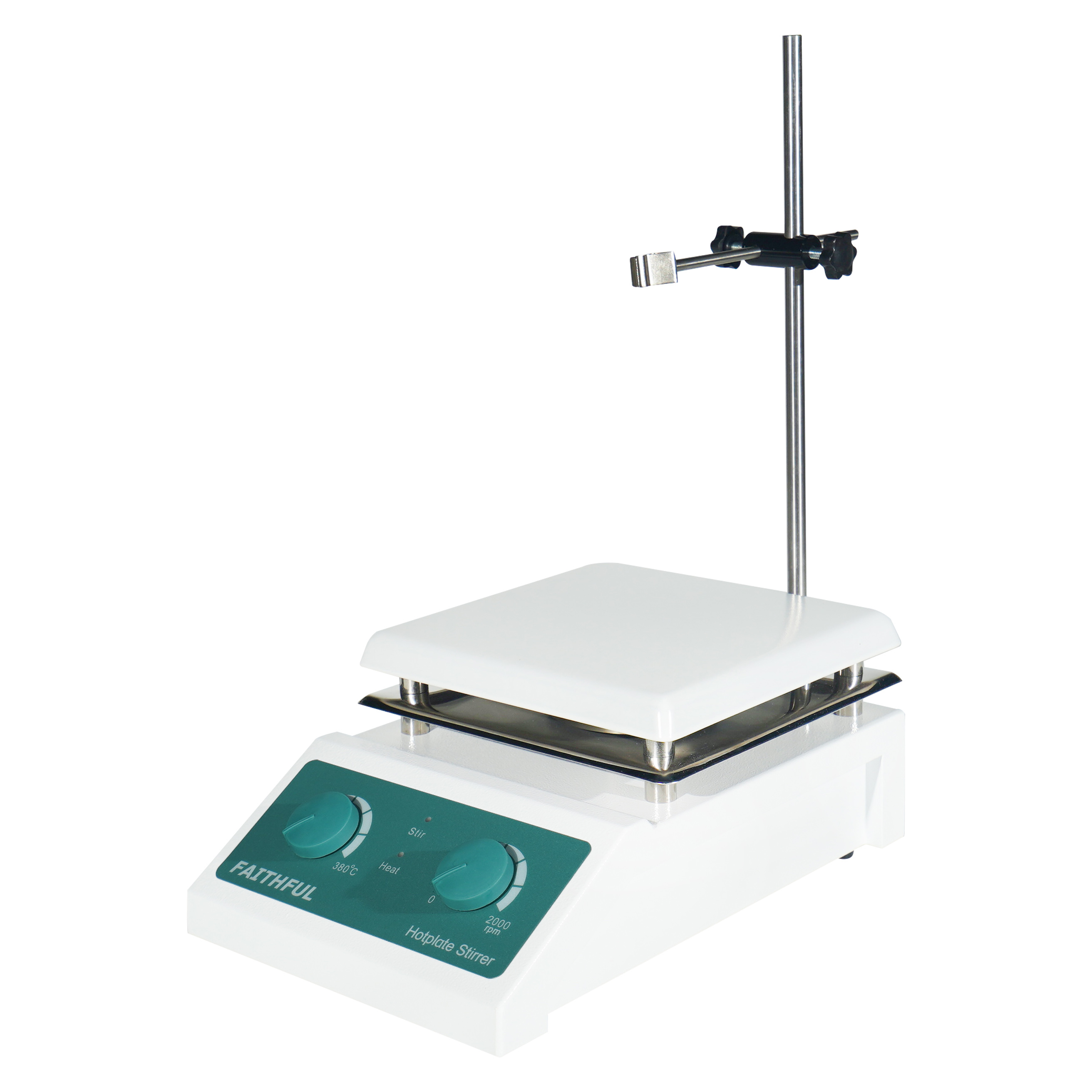

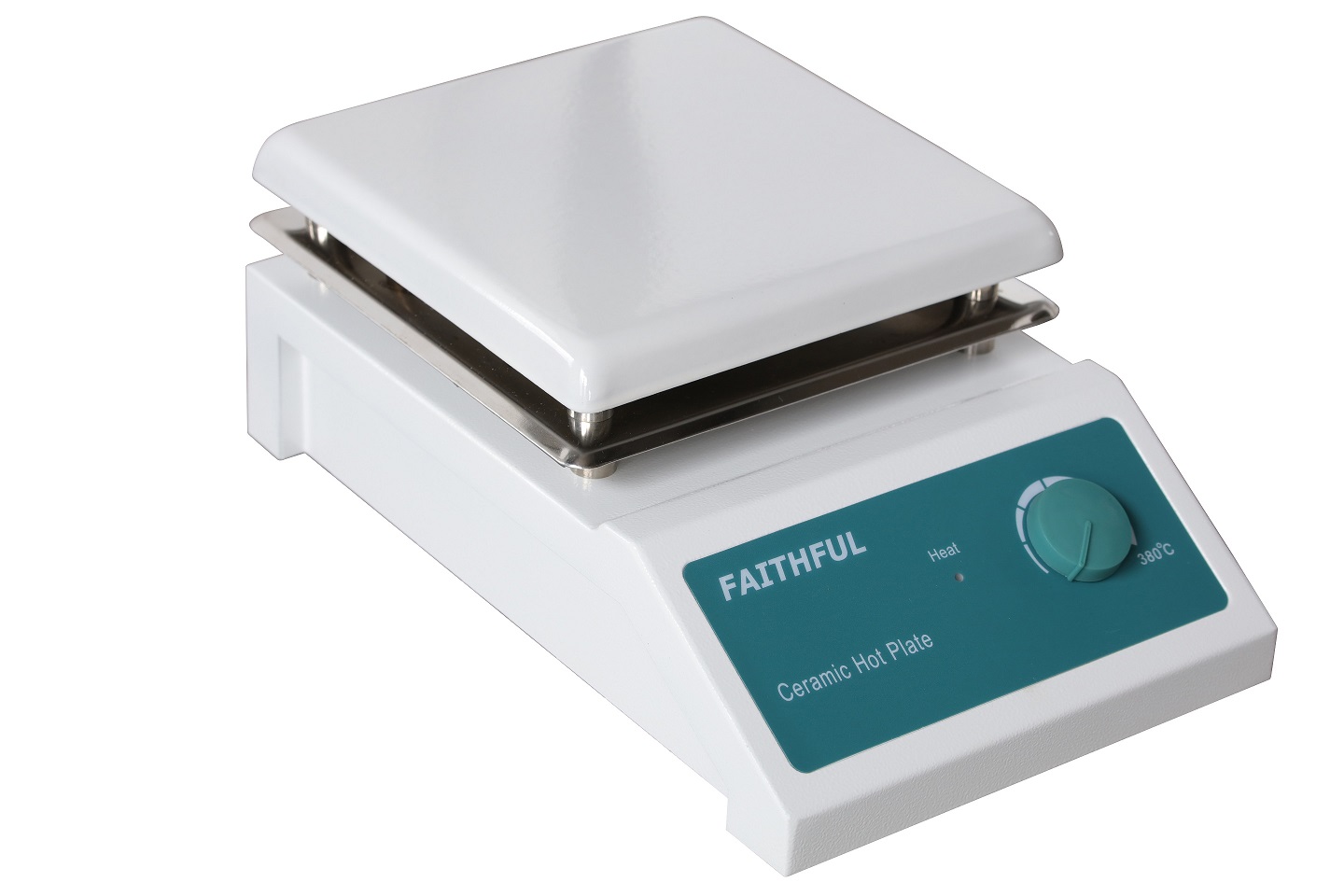

Ceramic Magnetic Stirrer

Magnetic stirring ceramic equipment with heating
Availability:
Quantity:
  • SH-4A,SH-4B,SH-4,SH-4C,SH-II-4C

  • FAITHFUL

1.Stretched shell and cover prevent leaking.

2. Heating and stirring can proceed simultaneously.

New digital model SH-II-4C, Ceramic Magnetic Stirrer with the following function:

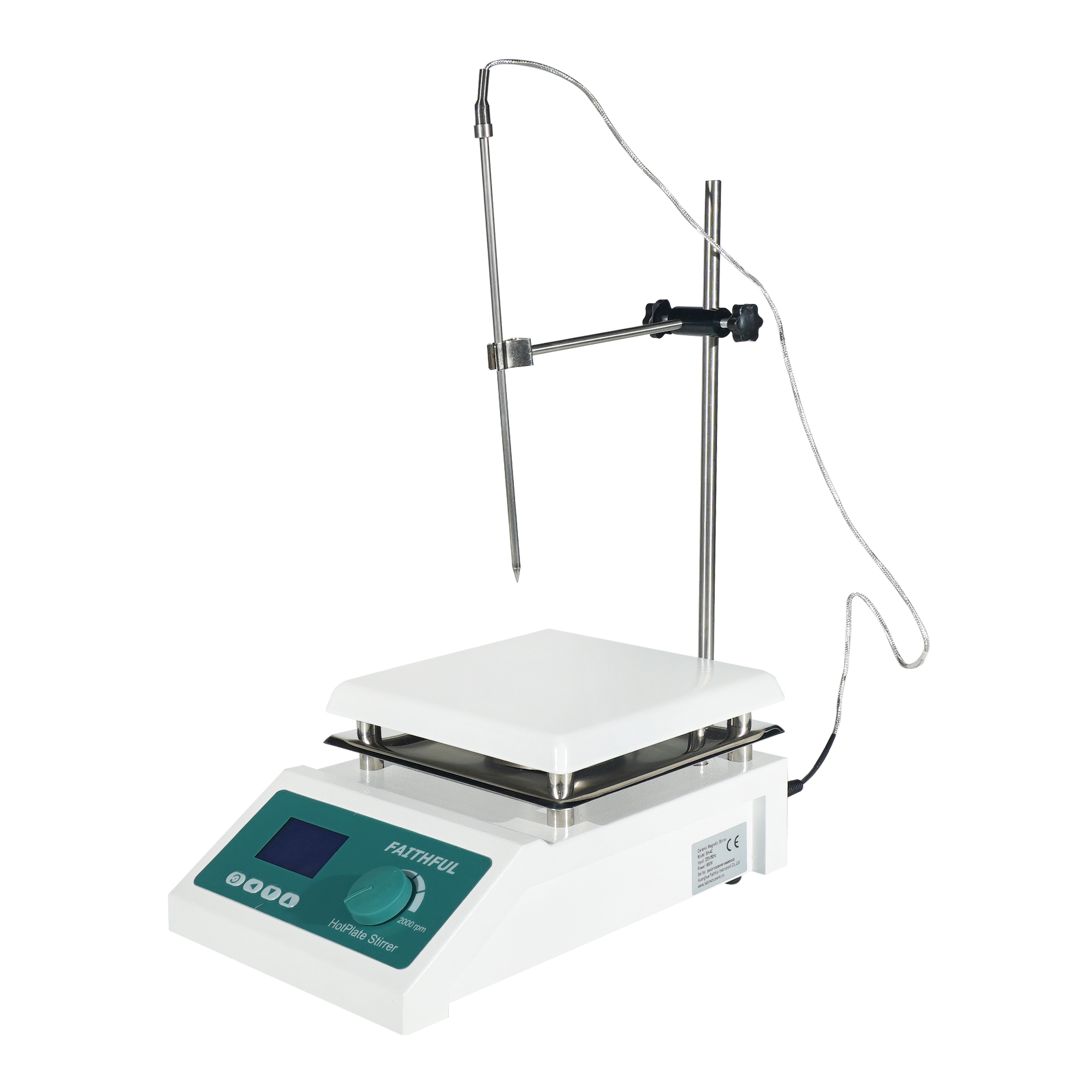

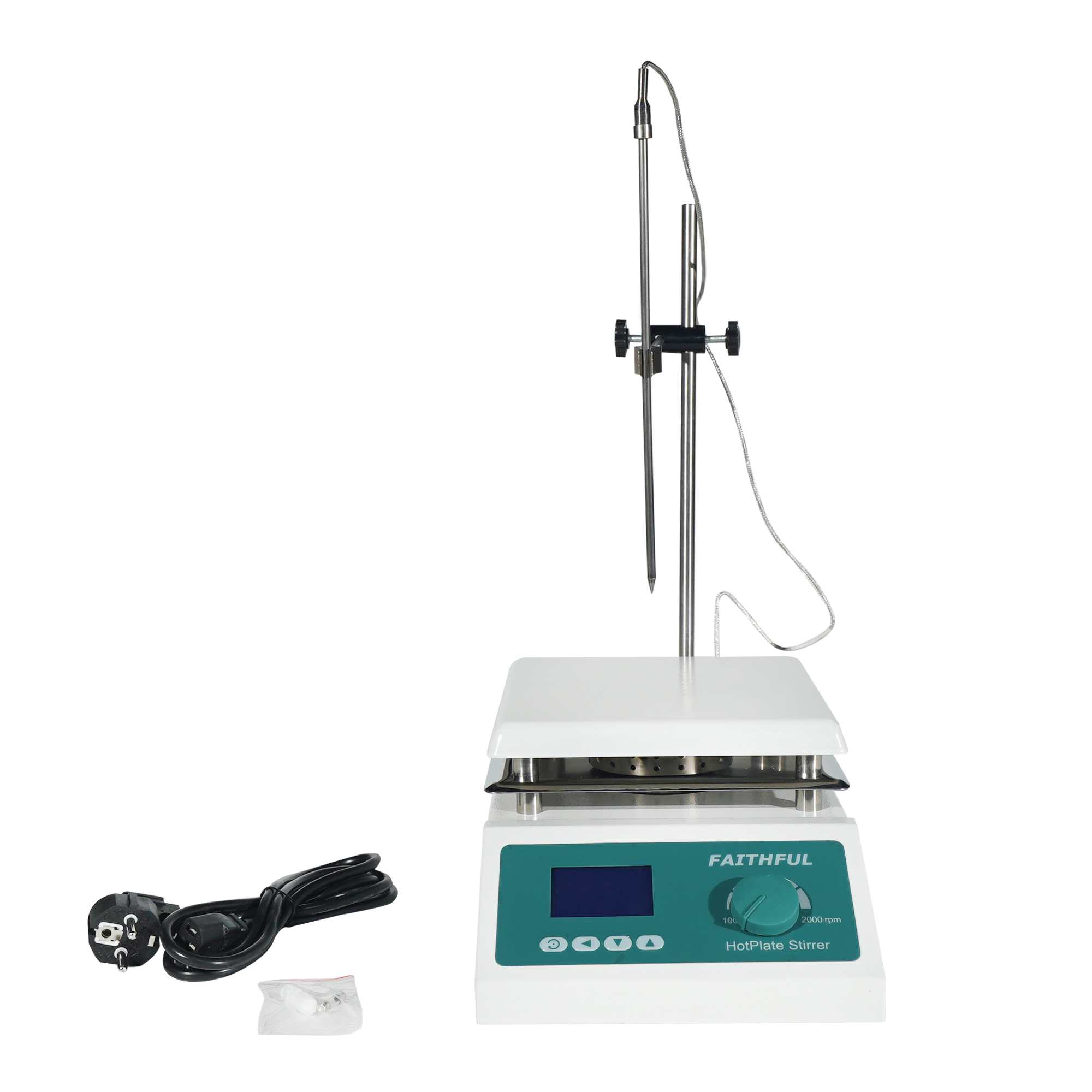

SH-4C

1. Setting temperature precisely.And stirring speed stepless adjustable.

2. Large LCD display,temperature and rotate speed can be displayed simultaneously.

3. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.

4.K mode sensor to control hot plate temperature.

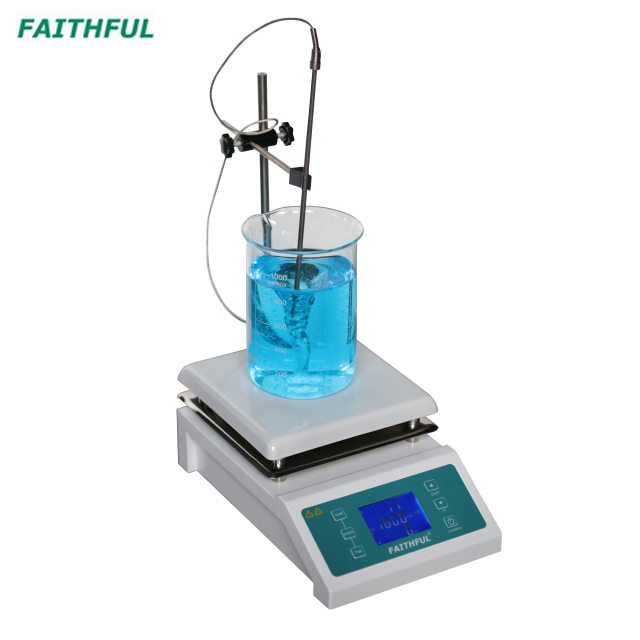

SH-II-4C

1.Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.

2.With speed switch to start or stop stirring at any time.

3. Timing function (0-9999min), time adjustable under artficial requirement. Audible and visual alam equipped.

4. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.

5. One key to shift inside and outside sensor easily and precisely.

6.Large screen LCD display can indicate temperature, rotational speed and timing at the same time.


ModelSH-4ASH-4BSH-4SH-4CSH-II-4C
ModeHeatingStirringHeating +
 Stirring
Digital+ Heating + Stirring
FunctionMax. Volume
(ML)
50005000500050005000
Speed
(r.p.m)
-200~2000
Working timeContinuous
Minimum revolution
 ( R.P.M.)
-200200200200
Max. temp
(℃)
380-380350350
StructureExteriorIron plate welding, surface spraying
Heating plate

Ceramic Coated

Driving mode-Motor
Motor power
(W)
-20202020
Heating power
(kW)
0.6-0.60.60.6

Stir barnoPTFE
ControllerContinuous
operation
yes
Setting modeScaleDigital
Speed display
mode
ScaleDigitalDigital
Timernoyes
Operation functionnoyes
SensornoPT100PT100
SpecificationExterior size
(W*L*H)
(mm)
320×190×125
Packing size
(W*L*H)
(mm)
390×240×230
Plate size
mm
190×190
Plate load10KG
Power supply
50/60Hz
Current rating
110V or 220V
NW/GW (kg) 5/6 5/6 5/6 5/6 5/6
