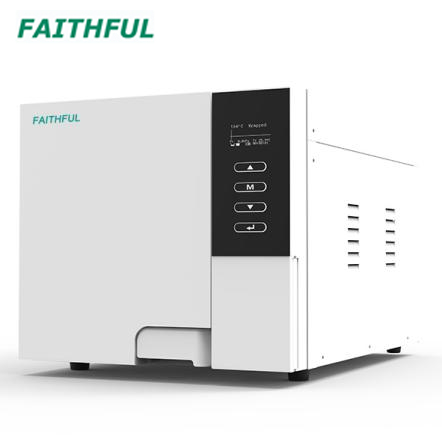

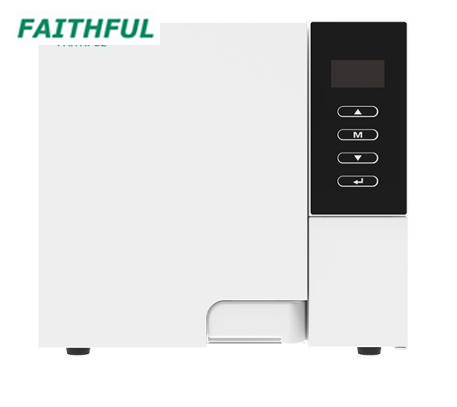

FSF-18B, FSF-23B
FAITHFUL
1. Utilizes an intelligent control system and high-performance components (including an instant steam generator and high-efficiency vacuum pump) to deliver rapid sterilization cycles.
2. The overload protection system uses mechanical and electronic locks to secure the door.
3. Allows sterilization cycle reports simply printed on thermal paper after code end.
4. Standard equipped with an internal memory able to store 10000+ cycles, and the code reports can be automatically saved via the USB driver.
5. SUS304 Stainless steel sterilizing chamber.
1. Utilizes an intelligent control system and high-performance components (including an instant steam generator and high-efficiency vacuum pump) to deliver rapid sterilization cycles.
2. The overload protection system uses mechanical and electronic locks to secure the door.
3. Allows sterilization cycle reports simply printed on thermal paper after code end.
4. Standard equipped with an internal memory able to store 10000+ cycles, and the code reports can be automatically saved via the USB driver.
5. SUS304 Stainless steel sterilizing chamber.
Model | FSF-18B | FSF-23B |
Sterilizing Chamber Volume | 18L Φ250x350mm | 23L Φ250x450mm |
Working Pressure | 210kPa/110kPa | |
Working Temperature | 121℃/134℃ | |
Temperature Accuracy | 0.1℃ | |
Max.Pressure | 2.3Bar | |
Time Range | 25-50min | 30-60min |
Drying Time | 20min | 20min |
Display | LCD | |
Interface | USB port | |
Times of Pulsating Pre-vacuum | 3 | 3 |
Vacuum Drying Function | Yes | Yes |
Optional | Built-in Printer | |
Data Storage | 10000+cycle | |
Standard Function | Safety valve, Safety lock door system,Pressure & temperature overload protection, Self-diagnosis | |
Standard Tray No. | 3 | 3 |
Tray Size (mm) | 192x285 | 192x285 |
Material of Tray | Aluminum | Aluminum |
Exterial Size (mm) | 490x455x600 | 490x455x690 |
Packing Size (mm) | 560x510x675 | 560x510x765 |
N.W./G.W. (kg) | 47/50 | 49/52 |
Model | FSF-18B | FSF-23B |
Sterilizing Chamber Volume | 18L Φ250x350mm | 23L Φ250x450mm |
Working Pressure | 210kPa/110kPa | |
Working Temperature | 121℃/134℃ | |
Temperature Accuracy | 0.1℃ | |
Max.Pressure | 2.3Bar | |
Time Range | 25-50min | 30-60min |
Drying Time | 20min | 20min |
Display | LCD | |
Interface | USB port | |
Times of Pulsating Pre-vacuum | 3 | 3 |
Vacuum Drying Function | Yes | Yes |
Optional | Built-in Printer | |
Data Storage | 10000+cycle | |
Standard Function | Safety valve, Safety lock door system,Pressure & temperature overload protection, Self-diagnosis | |
Standard Tray No. | 3 | 3 |
Tray Size (mm) | 192x285 | 192x285 |
Material of Tray | Aluminum | Aluminum |
Exterial Size (mm) | 490x455x600 | 490x455x690 |
Packing Size (mm) | 560x510x675 | 560x510x765 |
N.W./G.W. (kg) | 47/50 | 49/52 |
