Class N Semi-automatic Autoclave - Buy Product on Huanghua Faithful Instrument Co.,LTD

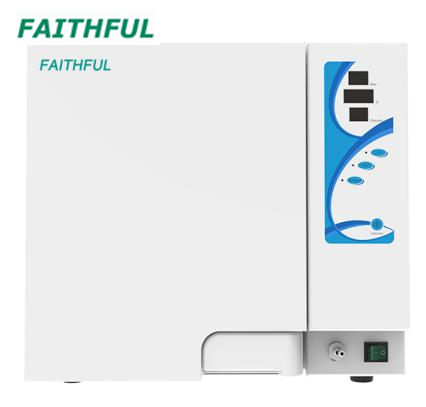

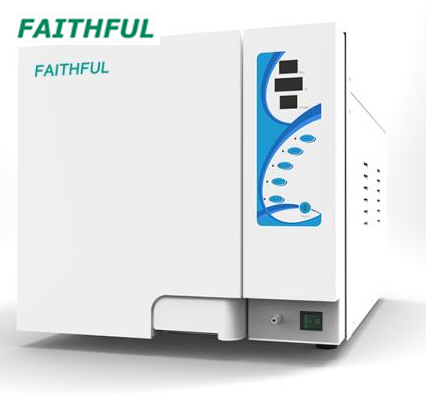

Class N Semi-automatic Autoclave

Product Classification

Product Description：

1.Two fixed sterilization programs, 121°C/1.1Bar and 134°C/2.1Bar.

2. High precision temperature control within 0.1°C.

3.Pressure safety lock,only allows the door to open when the pressure is 0.

4.Safety door lock,only allows the cycle to start when the door is properly locked.

5.Automatically discharge of water and steam after cycle over.

6. SUS304 Stainless steel sterilizing chamber.

Model	FSF-18E	FSF-23E
Sterilizing Chamber Volume	18L Φ250x350mm	23L Φ250x450mm
Working Pressure	1.1Bar@121℃,2.1Bar@134℃
Working Temperature	121℃/134℃
Temperature Accuracy	0.1℃
Max.Pressure	2.3Bar
Time Range	30-60min @121℃/10-20min @10-20min
Display	LED
USB Interface	No
Standard Function	Safety valve, Pressure lock system,Pressure & temperature overload protection
Standard Tray No.	2	2
Tray Size (mm)	285x190x18	285x190x18
Material of Tray	Aluminum	Aluminum
Exterial Size (mm)	490x455x600	490x455x690
Packing Size (mm)	560x510x675	560x510x765
N.W./G.W. (kg)	47/50	49/52
