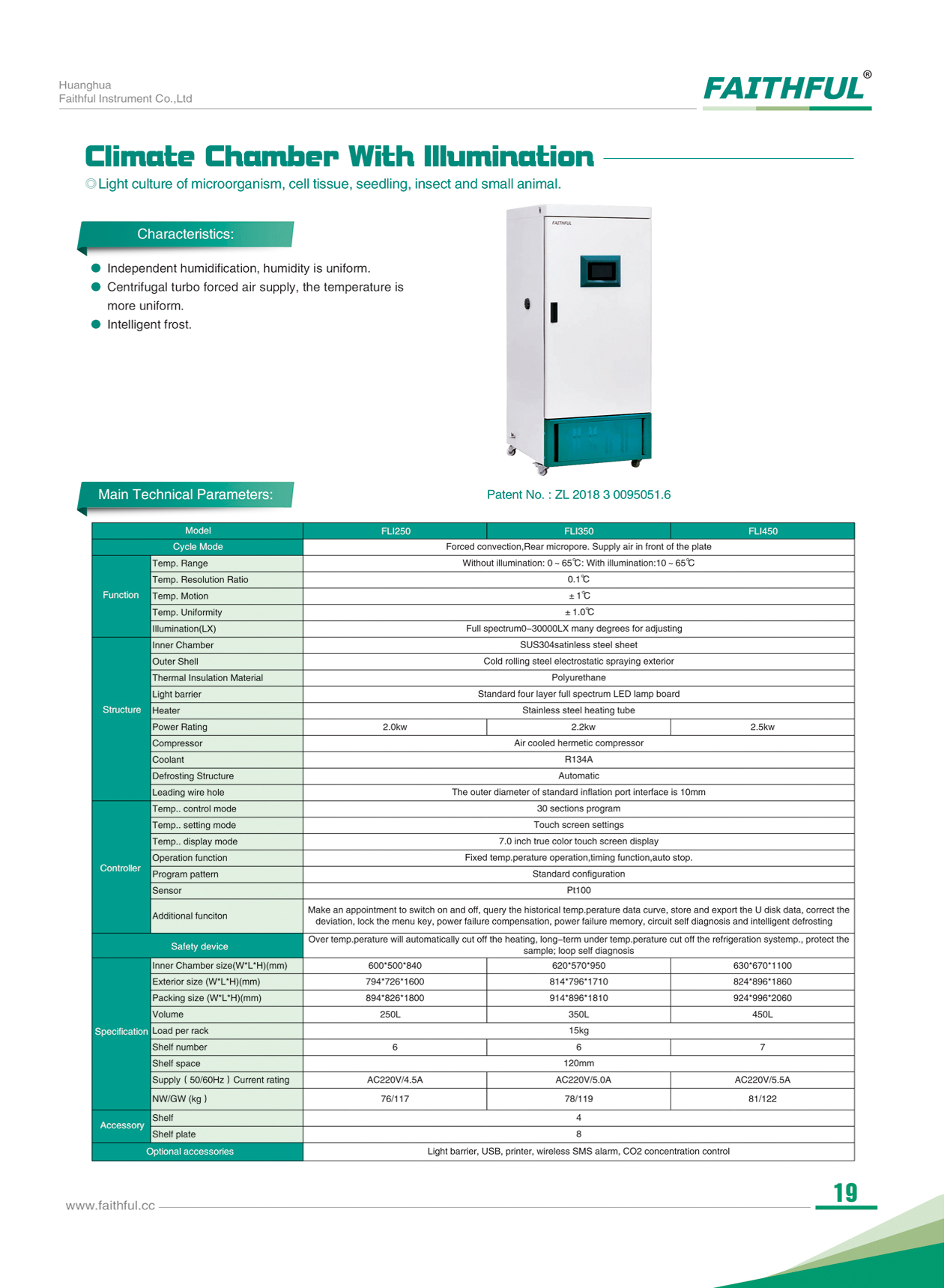

Climate Chamber With Illumination

4-side Illumination

GZX250EF

GZX300EF

GZX400EF

Cycle Mode

Forced convection

Function

Tem. Range

Without illumination: 0-65℃;with illumination: 10-65℃

Tem. Resolution Ratio

0.1℃

Tem. Motion

±1℃

Tem. Uniformity

±1.5℃

±1.5℃

±2.0℃

Illuminance (LX)

0-15000LX 6 degrees for adjusting

Structure

Inner Chamber

sus304 mirror stainless steel

Outer Shell

cold rolling steel electrostatic spraying exterior

Insulation layer

Polyurethane

Heater

Stainless steel heater

Power Rating

1.0kW

  1.1kW

 1.2kW

Compressor

Air-cooled hermetic compressor

Coolant

R134A

Defrosting Structure

Automatic

Leading wire hole

No

Controller

Tem. control mode

30 sections LCD program

Tem. setting mode

Touch button setting

Tem. display mode

Measuring temperature: LCD upper row;Setting temperature: the lower row

Timer

0～99.9h×30（with timing wait function ）

Operation Function

Fixed temperature operation, timing function,auto stop/ appointment start, program run

Program Pattern

Standard configuration

Sensor

Pt100

Additional Function

Deviation correction, menu locked, power failure back-up, power failure memory, intelligent defrosting

Safety Device

Over temperature alarm, circuit diagnosis

Specification

Inner Chamber size(W*L*H)(mm)

500*530*950

550*580*950

590*620*1100

Exterior size (W*L*H)(mm)

690*705*1650

740*755*1650

780*795*1800

Packing size (W*L*H)(mm)

890*905*1870

940*955*1870

980*990*2020

Volume

250L

300L

400L

Load Per Rack

15KG

Shelf Number

6

6

7

Shelf Space

120mm

Current Rating （50/60Hz）

AC220V/4.5A

 AC220V/5.0A

AC220V/5.5A

NW/GW (kg）

76/117

78/119

81/122

Accessories

Shelf

2

 Optional accessories

interface,printer, program temperature control device,remote control, wireless SMS alarm, USB data storage
