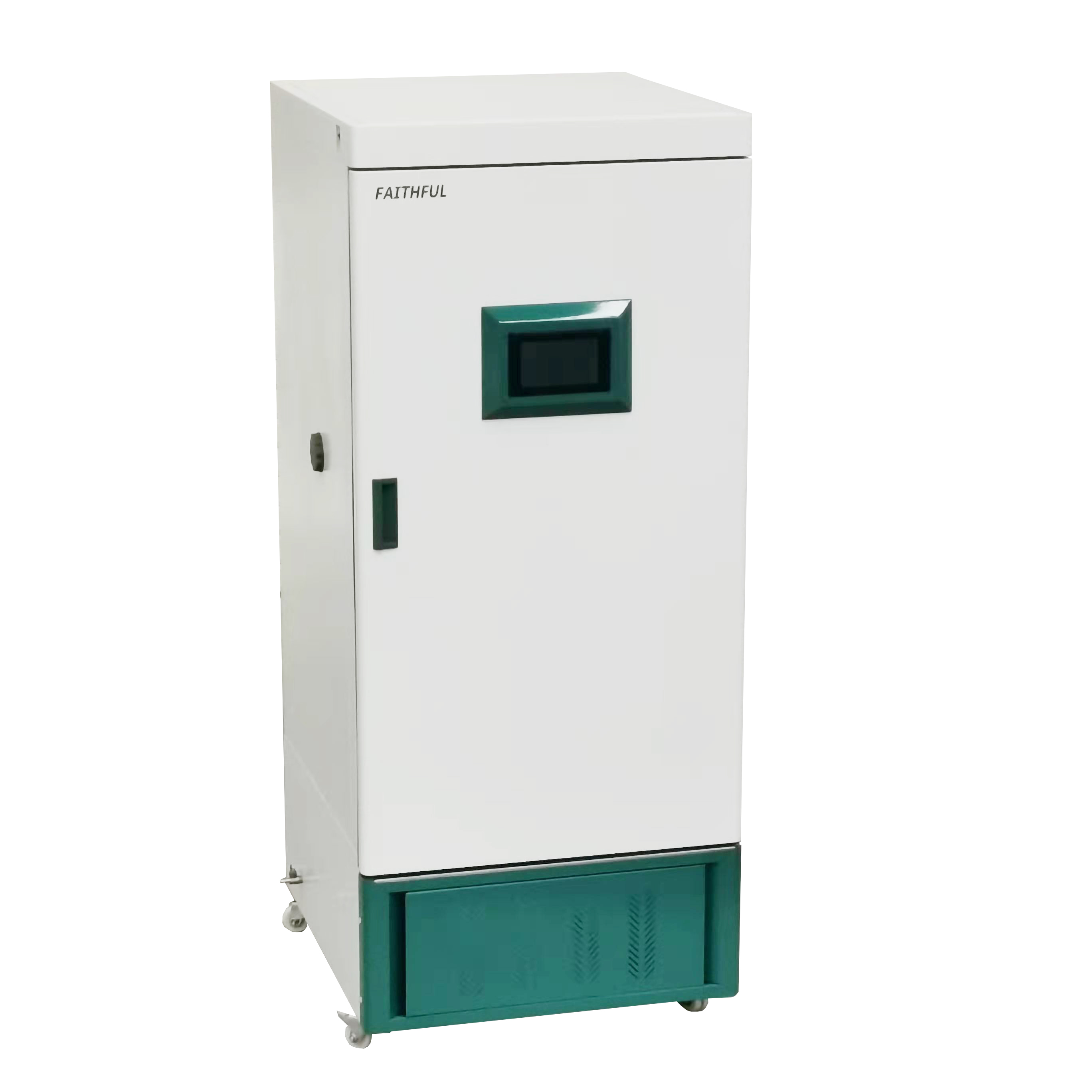

FPG250, FPG350, FPG450
FAITHFUL
●Double door structure, with high quality stalinite to observe sample.
●7.0 inch true color touch screen display, convenient to view historical temperature data and appointment auto start and stop.
● Full spectrum Multi-stage adjustable, 30 sections programmed Temp. LUX ,RH controller.
●Full spectrum LED top light source design, high ilumination, low thermal radiation, long service life, removable Light partition, adjustable layer space.
●Internal humidification system. Small humidifier particles, high humidity uniformity, small water consumption, with automatic water intake, water shortage alarm function.
●The evaporator temperature is collectively controlled by the backflow valve and expansion valve, greatly prolonging the service life of the compressor.
●Imported high quality temperature sensor and compressor.
●Double door structure, with high quality stalinite to observe sample.
●7.0 inch true color touch screen display, convenient to view historical temperature data and appointment auto start and stop.
● Full spectrum Multi-stage adjustable, 30 sections programmed Temp. LUX ,RH controller.
●Full spectrum LED top light source design, high ilumination, low thermal radiation, long service life, removable Light partition, adjustable layer space.
●Internal humidification system. Small humidifier particles, high humidity uniformity, small water consumption, with automatic water intake, water shortage alarm function.
●The evaporator temperature is collectively controlled by the backflow valve and expansion valve, greatly prolonging the service life of the compressor.
●Imported high quality temperature sensor and compressor.
| Model | FPG250 | FPG350 | FPG450 | |
| Cycle Mode | Forced convection, Rear micropore. Supply air in front of the plate | |||
| Function | Temp. Range | Without illumination:0～65℃; With illumination:10～65℃ | ||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp.Motion | ±0.5℃ | |||
| Temp. Uniformity | ±1.0℃ | |||
| illumination(LX) | Full spectrum 0-30000LX many degrees for adjusting | |||
| Humidity Range | 40%～95%RH | |||
| Humidity Motion | ±5% RH | |||
| Structure | Inner Chamber | SUS304satinless steel sheet | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Thermal Insulation Material | Polyurethane | |||
| Light barrier | Standard four layer full spectrum LED lamp board | |||
| Heater | Stainless steel heating tube | |||
| Power Rating | 2.0kw | 2.2kw | 2.5kw | |
| Compressor | Air cooled hermetic compressor | |||
| Coolant | R134A | |||
| Defrosting Structure | Automatic | |||
| Humidity control mode | Automatic | |||
| Leading wire hole | The outer diameter of standard inflation port interface is 10mm | |||
| Controller | Temp. control mode | 30 sections program | ||
| Temp. setting mode | Touch screen settings | |||
| Temp. display mode | 7.0 inch true color touch screen display | |||
| Operation function | Fixed tempperature operation,timing function,auto stop. Appointment start, program operaiton | |||
| Program pattern | Standard configuration | |||
| Sensor | PT100 Temp. Sensor, Imported chip humidity sensor | |||
| Additional funciton | Reservation switch,historical tempperature and humidity data curve query, U disk data storage and export,Deviation correction,menu locked,power failure back-up,power failure memory,intelligent defrosting | |||
| Safety device | Over tempperature will automatically cut off the heating, long-term under tempperature cut off the refrigeration systemp, protect the sample; loop self diagnosis | |||
| Specification | Inner Chamber size(W*L*H)(mm) | 600*500*840 | 630*580*960 | 630*670*1100 |
| Exterior size (W*L*H)(mm) | 794*726*1600 | 824*806*1720 | 824*896*1860 | |
| Packing size (W*L*H)(mm) | 893*863*1850 | 943*923*1960 | 823*1033*2110 | |
| Volume | 250L | 350L | 450L | |
| Load per rack | 15kg | |||
| Shelf space | 120mm | |||
| Supply（50/60Hz）Current rating | AC220V/9.1A | AC220V/10A | AC220V/11.5A | |
| NW/GW (kg） | 225/255 | 260/300 | 310/350 | |
| Accessory | Shelf | 4 | ||
| Shelf plate | 8 | |||
| Optional accessories | Light barrier, USB interface and upper computer software, printer, wireless SMS alarm, CO2 concentration control | |||
| Model | FPG250 | FPG350 | FPG450 | |
| Cycle Mode | Forced convection, Rear micropore. Supply air in front of the plate | |||
| Function | Temp. Range | Without illumination:0～65℃; With illumination:10～65℃ | ||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp.Motion | ±0.5℃ | |||
| Temp. Uniformity | ±1.0℃ | |||
| illumination(LX) | Full spectrum 0-30000LX many degrees for adjusting | |||
| Humidity Range | 40%～95%RH | |||
| Humidity Motion | ±5% RH | |||
| Structure | Inner Chamber | SUS304satinless steel sheet | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Thermal Insulation Material | Polyurethane | |||
| Light barrier | Standard four layer full spectrum LED lamp board | |||
| Heater | Stainless steel heating tube | |||
| Power Rating | 2.0kw | 2.2kw | 2.5kw | |
| Compressor | Air cooled hermetic compressor | |||
| Coolant | R134A | |||
| Defrosting Structure | Automatic | |||
| Humidity control mode | Automatic | |||
| Leading wire hole | The outer diameter of standard inflation port interface is 10mm | |||
| Controller | Temp. control mode | 30 sections program | ||
| Temp. setting mode | Touch screen settings | |||
| Temp. display mode | 7.0 inch true color touch screen display | |||
| Operation function | Fixed tempperature operation,timing function,auto stop. Appointment start, program operaiton | |||
| Program pattern | Standard configuration | |||
| Sensor | PT100 Temp. Sensor, Imported chip humidity sensor | |||
| Additional funciton | Reservation switch,historical tempperature and humidity data curve query, U disk data storage and export,Deviation correction,menu locked,power failure back-up,power failure memory,intelligent defrosting | |||
| Safety device | Over tempperature will automatically cut off the heating, long-term under tempperature cut off the refrigeration systemp, protect the sample; loop self diagnosis | |||
| Specification | Inner Chamber size(W*L*H)(mm) | 600*500*840 | 630*580*960 | 630*670*1100 |
| Exterior size (W*L*H)(mm) | 794*726*1600 | 824*806*1720 | 824*896*1860 | |
| Packing size (W*L*H)(mm) | 893*863*1850 | 943*923*1960 | 823*1033*2110 | |
| Volume | 250L | 350L | 450L | |
| Load per rack | 15kg | |||
| Shelf space | 120mm | |||
| Supply（50/60Hz）Current rating | AC220V/9.1A | AC220V/10A | AC220V/11.5A | |
| NW/GW (kg） | 225/255 | 260/300 | 310/350 | |
| Accessory | Shelf | 4 | ||
| Shelf plate | 8 | |||
| Optional accessories | Light barrier, USB interface and upper computer software, printer, wireless SMS alarm, CO2 concentration control | |||
