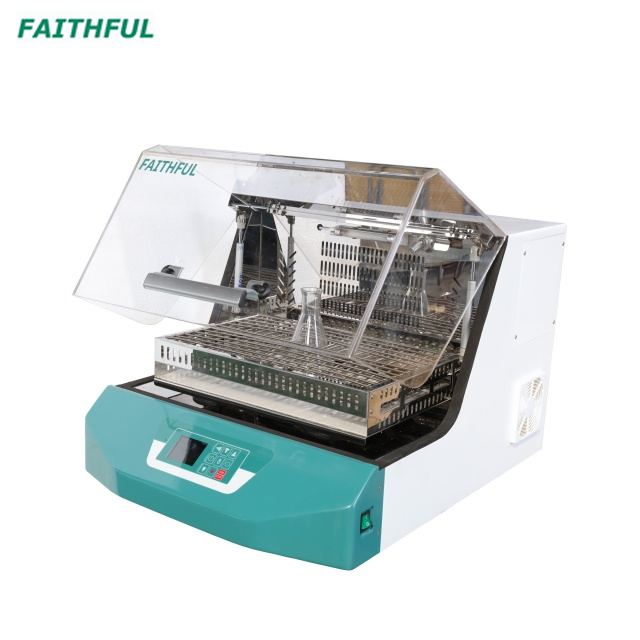

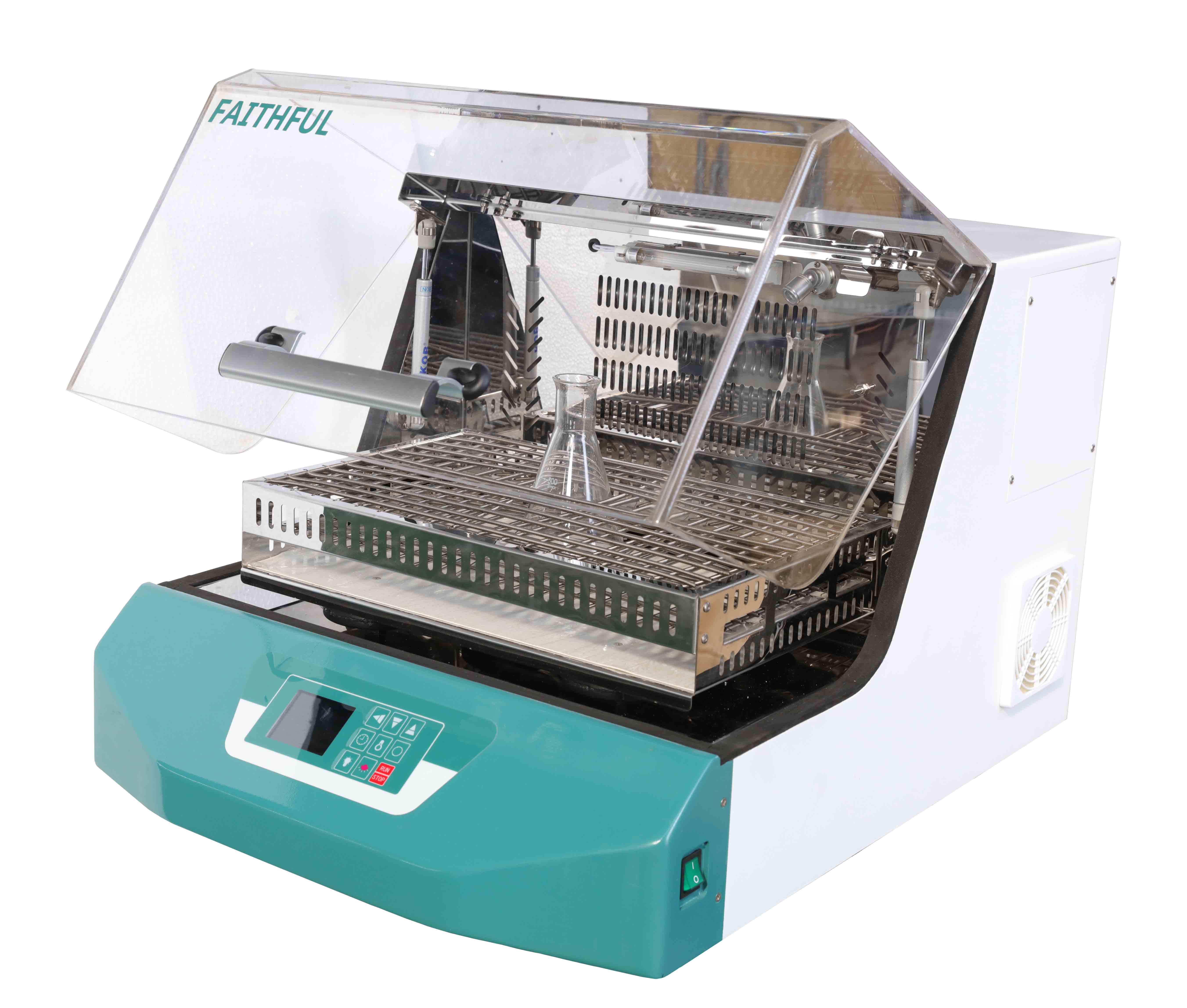

FS-50B,FS-70B
FAITHFUL
1. Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.
2. Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection can automatically resume operation after power on.
3. Unique air duct breeze circulation, Large observation window.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
5.With function of cutting off UV lamp by open door.
6.Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
1. Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.
2. Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection can automatically resume operation after power on.
3. Unique air duct breeze circulation, Large observation window.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
5.With function of cutting off UV lamp by open door.
6.Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
| Model | FS-50B | FS-70B | ||
| Shaking Mode | Cyclotron Oscillation | |||
| Function | Amplitude | Ф20mm | ||
| Temp. Resolution | 0.1℃ | |||
| Temp. Motion | ±0.1℃ | |||
| Temp. Uniformity | ±1℃ | |||
| Temp. Range | RT+5～65℃ | 4～65℃(25℃） | ||
| Rotary Speed | 30～300rpm | 30～300rpm | ||
| Rotary Speed Precision | ±1rpm | |||
| Structure | Chamber Material | Mirror Stainless Steel | ||
| Outer Shell | ABS | |||
| Observation Window Material | Imported resin | |||
| Thermal Insulation Material | Polyurethane | |||
| Cooling System | No | Yes | ||
| Coolant | No | R134a | ||
| Heater | Stainless steel heating tube | |||
| Drive Mode | Three-axis level | |||
| Oscillating Plate | Spring Wire Rack | |||
| Air Circulation Mode | Horizontal convection | |||
| Power Rating | 0.6kW | 0.8kW | ||
| Controller | Temp. Control Mode | LCD PID intelligent control | ||
| Cyclotron Control Mode | ||||
| Setting Mode | Automatic changes of rotation direction | |||
| Temp. Display Mode | Touch button setting | |||
| Speed Display Mode | LCD display | |||
| Timer | 0～9999min | |||
| Operation Function | Fixed value operation、timing function、bidirectional automatic switchover、auto stop、 quick stop start | |||
| Temperature Sensor | Pt100 | |||
| Speed Sensor | Hoare | |||
| Gating System | Yes | |||
| Additional Function | Deviation correction, menu keys locked, power-off memory | |||
| Safety Device | over temperature alarm, menu locked, gating system ,power-off protection , plugging turn protection | |||
| Specification | Inner Chamber Size (W*L*H) (mm) | 455*380*290 | 560*390*320 | |
| Exterior Size (W*L*H)(mm) | 500*640*480 | 600*770*500 | ||
| Packing Size (W*L*H) (mm) | 802*620*685 | 913*720*698 | ||
| Shelf Size（mm） | 380*320 | 480*315 | ||
| Max capacity of Shelf for single specification(ml/pc) | 100ml*16/250ml*9/500ml*5/1000ml*4 | 100ml*24/250ml*12/500ml*8/1000ml*6 | ||
| Number of flask clamp as standard （ml/pc） | 250*8 | 250*12 | ||
| Inside Volume | 50L | 70L | ||
| Shelf Load Bearing | ≤10kg/layer | ≤15kg/layer | ||
| Shelf Layer | 1 | |||
| Power Supply （50/60Hz）Current Rating | AC220V/2.5A | AC220V/3.5A | ||
| NW/GW (kg） | 45/55 | 65/85 | ||
| Optional flask clip tray wireless short message alarm system | 100ml*16/250ml*9/500ml*5/1000ml*4 | 100ml*24/250ml*12/500ml*6/1000ml*6 | ||
| Model | FS-50B | FS-70B | ||
| Shaking Mode | Cyclotron Oscillation | |||
| Function | Amplitude | Ф20mm | ||
| Temp. Resolution | 0.1℃ | |||
| Temp. Motion | ±0.1℃ | |||
| Temp. Uniformity | ±1℃ | |||
| Temp. Range | RT+5～65℃ | 4～65℃(25℃） | ||
| Rotary Speed | 30～300rpm | 30～300rpm | ||
| Rotary Speed Precision | ±1rpm | |||
| Structure | Chamber Material | Mirror Stainless Steel | ||
| Outer Shell | ABS | |||
| Observation Window Material | Imported resin | |||
| Thermal Insulation Material | Polyurethane | |||
| Cooling System | No | Yes | ||
| Coolant | No | R134a | ||
| Heater | Stainless steel heating tube | |||
| Drive Mode | Three-axis level | |||
| Oscillating Plate | Spring Wire Rack | |||
| Air Circulation Mode | Horizontal convection | |||
| Power Rating | 0.6kW | 0.8kW | ||
| Controller | Temp. Control Mode | LCD PID intelligent control | ||
| Cyclotron Control Mode | ||||
| Setting Mode | Automatic changes of rotation direction | |||
| Temp. Display Mode | Touch button setting | |||
| Speed Display Mode | LCD display | |||
| Timer | 0～9999min | |||
| Operation Function | Fixed value operation、timing function、bidirectional automatic switchover、auto stop、 quick stop start | |||
| Temperature Sensor | Pt100 | |||
| Speed Sensor | Hoare | |||
| Gating System | Yes | |||
| Additional Function | Deviation correction, menu keys locked, power-off memory | |||
| Safety Device | over temperature alarm, menu locked, gating system ,power-off protection , plugging turn protection | |||
| Specification | Inner Chamber Size (W*L*H) (mm) | 455*380*290 | 560*390*320 | |
| Exterior Size (W*L*H)(mm) | 500*640*480 | 600*770*500 | ||
| Packing Size (W*L*H) (mm) | 802*620*685 | 913*720*698 | ||
| Shelf Size（mm） | 380*320 | 480*315 | ||
| Max capacity of Shelf for single specification(ml/pc) | 100ml*16/250ml*9/500ml*5/1000ml*4 | 100ml*24/250ml*12/500ml*8/1000ml*6 | ||
| Number of flask clamp as standard （ml/pc） | 250*8 | 250*12 | ||
| Inside Volume | 50L | 70L | ||
| Shelf Load Bearing | ≤10kg/layer | ≤15kg/layer | ||
| Shelf Layer | 1 | |||
| Power Supply （50/60Hz）Current Rating | AC220V/2.5A | AC220V/3.5A | ||
| NW/GW (kg） | 45/55 | 65/85 | ||
| Optional flask clip tray wireless short message alarm system | 100ml*16/250ml*9/500ml*5/1000ml*4 | 100ml*24/250ml*12/500ml*6/1000ml*6 | ||
