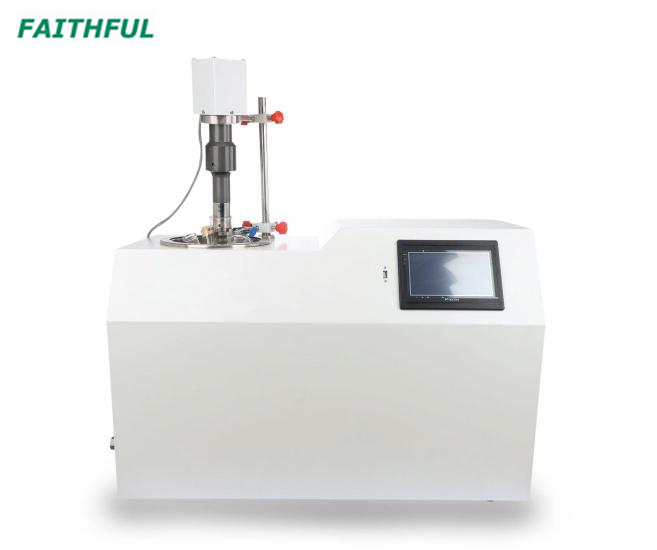

Constant Temperature Ultrasonic Homogenizer

Availability:
Quantity:
  • FSF-1000UC, FSF-500UC, FSF-250UC

  • Faithful

Intelligent : According to the reaction environment, the best ultrasonic effect can be achieved automatically through automatic frequency tracking.

High Efficiency : Ultrasonic technology combined with constant temperature control system makes the reaction more complete.

Flexible Parameters : Ultrasonic power, time and reaction temperature are adjustable.

Optional Mode : High-power ultrasonic and constant temperature system can be used in combination or separately.

Simple Operation : Special multi-mouth reaction bottle can meet the requirements of filling various gases to participate in the reaction, and can also be continuously added.

Intelligent Storage : Data can be set, stored and working status can be controlled.

High Safety : It has fault self-diagnosis and alarm prompt functions.


Model

FSF-1000UC

FSF-500UC

FSF-250UC

Ultrasonic Power MAX

1800W

900W

650W

Reaction Bottle Volume

1000ml

500ml

250ml

Probe Diameter

Ф20mm

Ф10mm

Ф6mm

Adjustable Power Range

30%-100%

15%-100%

5%-100%

Ultrasonic Frequency

20±1KHz

22±1KHz

22±1KHz

Ultrasonic Total Time

1-999min

Ultrasonic Time

1-99S

Interval Time

1-99S

Compressor Power

500W

Heating Power

1000W

Temperature Control Method

PID automatic temperature control

Temperature Measurement Method

Dual-channel temperature measurement, monitoring the real-time temperature of the reaction system and the constant temperature working tank.

Temperature Control Range

0-99℃

Temperature Control Fluctuation

≦±1℃

Constant Temperature Volume

6L

Abnormal Alarm Function

Yes, the device has fault self-diagnosis and alarm prompt functions

Operation Record Method

The device has a working curve screen, which records the temperature and other parameter changes during operation

Equipment Control Method

7-inch TFT touch screen and single-chip integrated control.

Equipment Operation Method

Direct operation on the touch screen to set parameters such as temperature, power, time, etc.

USB Communication Port

The device has a USB communication port, plug in a USB flash drive, and save the curve and other information in the form of pictures to the USB flash drive

Remote Communication Serial Port

This function is optional, and users who need it can purchase it (including the host computer software) and connect it to the computer.

Reaction Bottle

The conventional bottle is a four-mouth bottle, and users who need it can purchase a five-mouth bottle.
