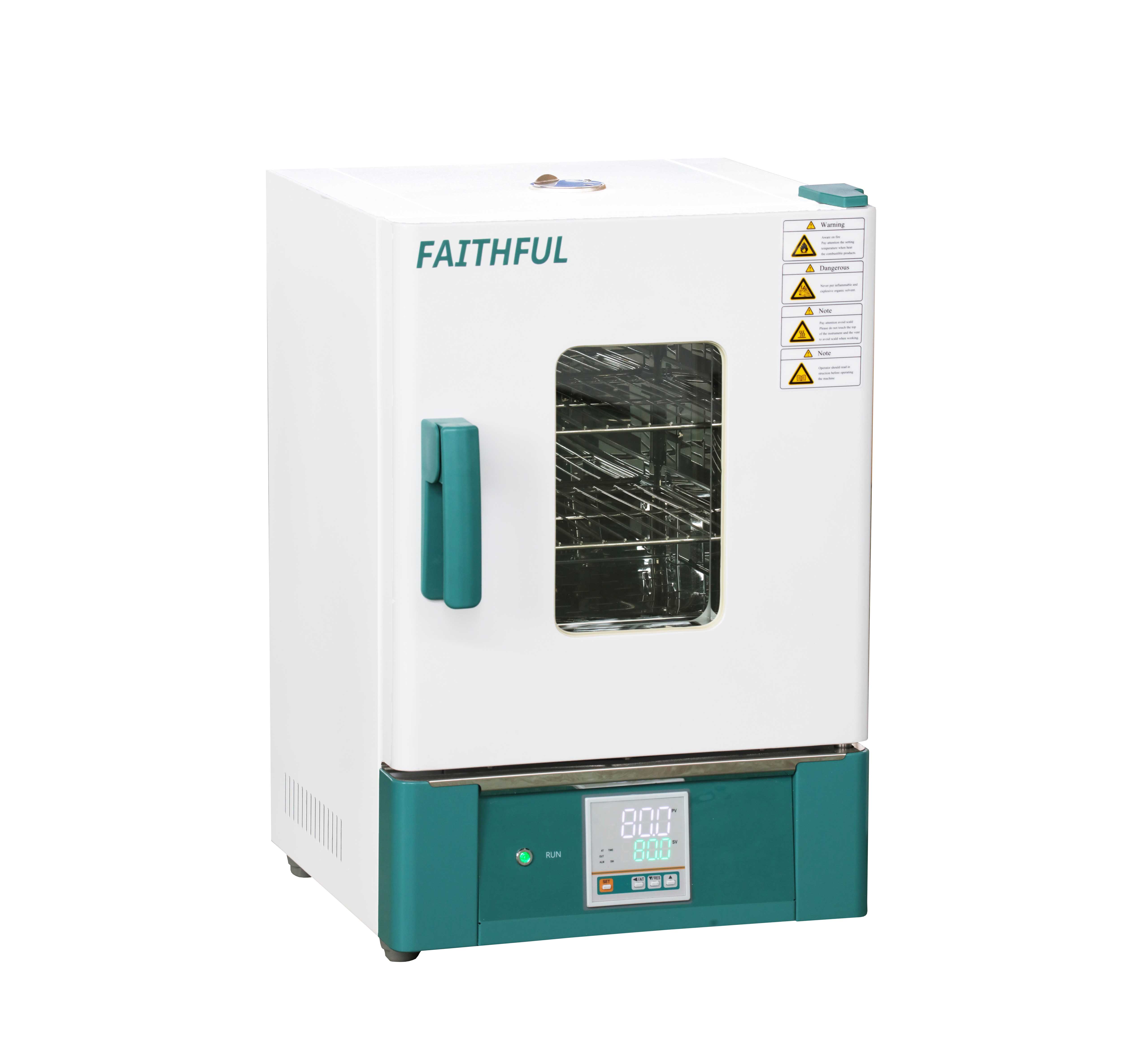

WHL-30B,WHL-45B,WHL-65B,WHL-85B,WHL-125B,WHLL-30BE,WHLL-45BE,WHLL-65BE,WHLL-85BE,WHLL-125BE
FAITHFUL
Product characteristic:
1. In the workroom, the hot air is convective naturally and cyclically.
2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.
3. Standard highlight LED instrument running light.
4. New anti-hot handle.
WHLL-BE series have the following characteristics other than the above functions.
1. LCD temperature controller. SSR to make sure the safety
2. Over-temperature protection system
3.High precision digital independent temperature limiter
Product characteristic:
1. In the workroom, the hot air is convective naturally and cyclically.
2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.
3. Standard highlight LED instrument running light.
4. New anti-hot handle.
WHLL-BE series have the following characteristics other than the above functions.
1. LCD temperature controller. SSR to make sure the safety
2. Over-temperature protection system
3.High precision digital independent temperature limiter

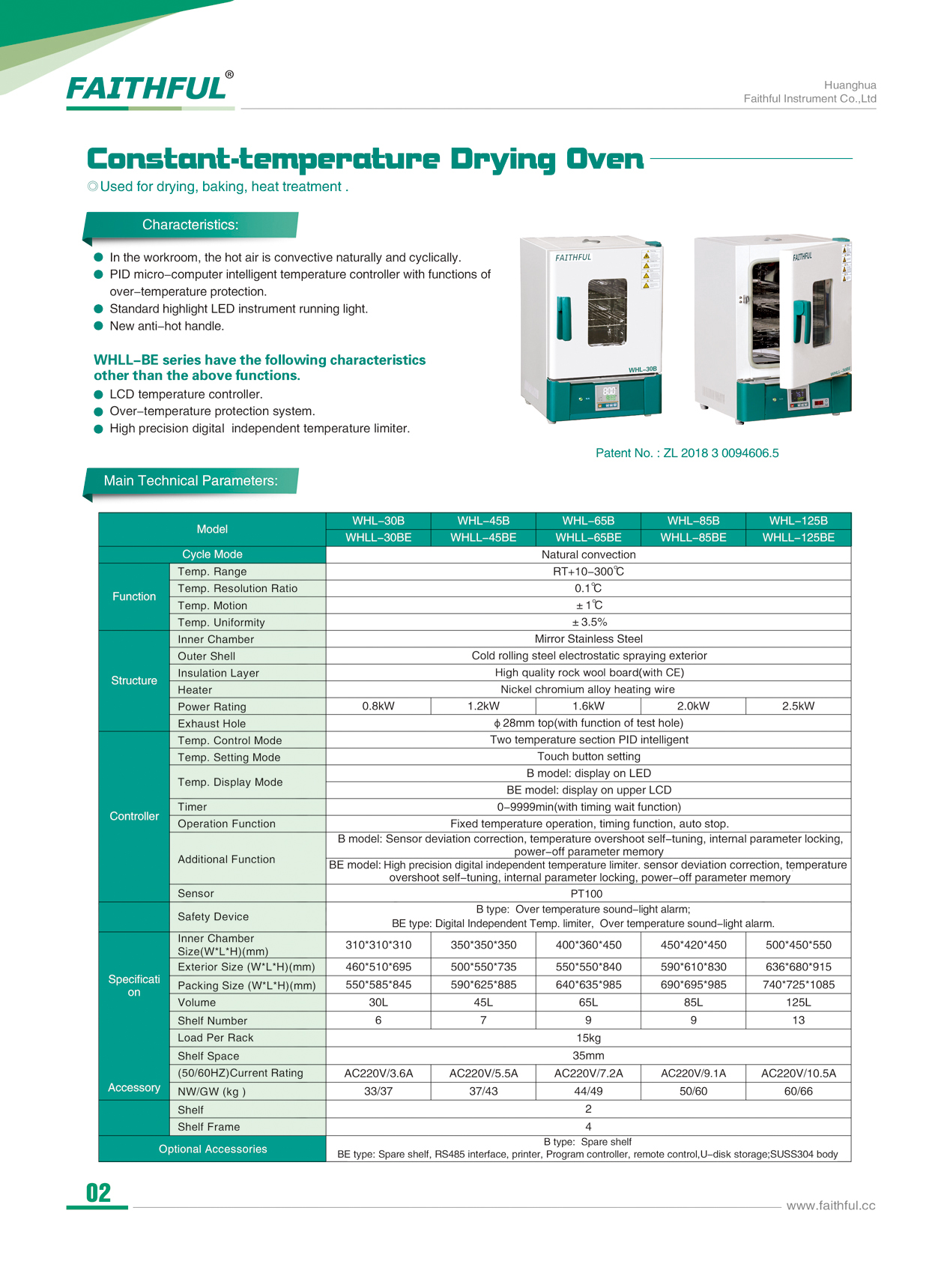

| Model | WHL- 30B | WHL- 45B | WHL- 65B | WHL- 85B | WHL- 125B | |
| WHLL- 30BE | WHLL- 45BE | WHLL- 65BE | WHLL- 85BE | WHLL- 125BE | ||
| Cycle Mode | Natural convection | |||||
| Function | Temp. Range | RT+10-300℃ | ||||
| Temp.Resolution Ratio | 0.1℃ | |||||
| Temp. Motion | ±1℃ | |||||
| Temp. Uniformity | ±3.5% | |||||
| Structure | Inner Chamber | Mirror Stainless Steel | ||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||||
| Insulation layer | High quaility rock wool board (with CE) | |||||
| Heater | Nickel chromium alloy heating wire | |||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.5kW | |
| Exhaust hole | φ35mm top(with function of test hole) | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | B model: display on LED | |||||
| BE model: display on LCD | ||||||
| Timer | 0-9999min(with timing wait function) | |||||
| Operation function | Fixed temperature operation, fixed timing operation, auto stop. | |||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||
| BE model: High precision digital independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| Sensor | pt100 | |||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 |
| Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | |
| Volume | 30L | 45L | 65L | 85L | 125L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | |
| Load per rack | 15kg | |||||
| Shelf space | 40mm | |||||
| (50/60HZ) Current rating | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 10.5A | AC220V/ 10.5A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/60 | 60/66 | |
| Accessory | Shelf | 2 | ||||
| Shelf frame | 4 | |||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf,RS485 Interface, Printer, Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen tmperature controller. | |||||
| Model | WHL- 30B | WHL- 45B | WHL- 65B | WHL- 85B | WHL- 125B | |
| WHLL- 30BE | WHLL- 45BE | WHLL- 65BE | WHLL- 85BE | WHLL- 125BE | ||
| Cycle Mode | Natural convection | |||||
| Function | Temp. Range | RT+10-300℃ | ||||
| Temp.Resolution Ratio | 0.1℃ | |||||
| Temp. Motion | ±1℃ | |||||
| Temp. Uniformity | ±3.5% | |||||
| Structure | Inner Chamber | Mirror Stainless Steel | ||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||||
| Insulation layer | High quaility rock wool board (with CE) | |||||
| Heater | Nickel chromium alloy heating wire | |||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.5kW | |
| Exhaust hole | φ35mm top(with function of test hole) | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | B model: display on LED | |||||
| BE model: display on LCD | ||||||
| Timer | 0-9999min(with timing wait function) | |||||
| Operation function | Fixed temperature operation, fixed timing operation, auto stop. | |||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||
| BE model: High precision digital independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| Sensor | pt100 | |||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 |
| Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | |
| Volume | 30L | 45L | 65L | 85L | 125L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | |
| Load per rack | 15kg | |||||
| Shelf space | 40mm | |||||
| (50/60HZ) Current rating | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 10.5A | AC220V/ 10.5A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/60 | 60/66 | |
| Accessory | Shelf | 2 | ||||
| Shelf frame | 4 | |||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf,RS485 Interface, Printer, Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen tmperature controller. | |||||
