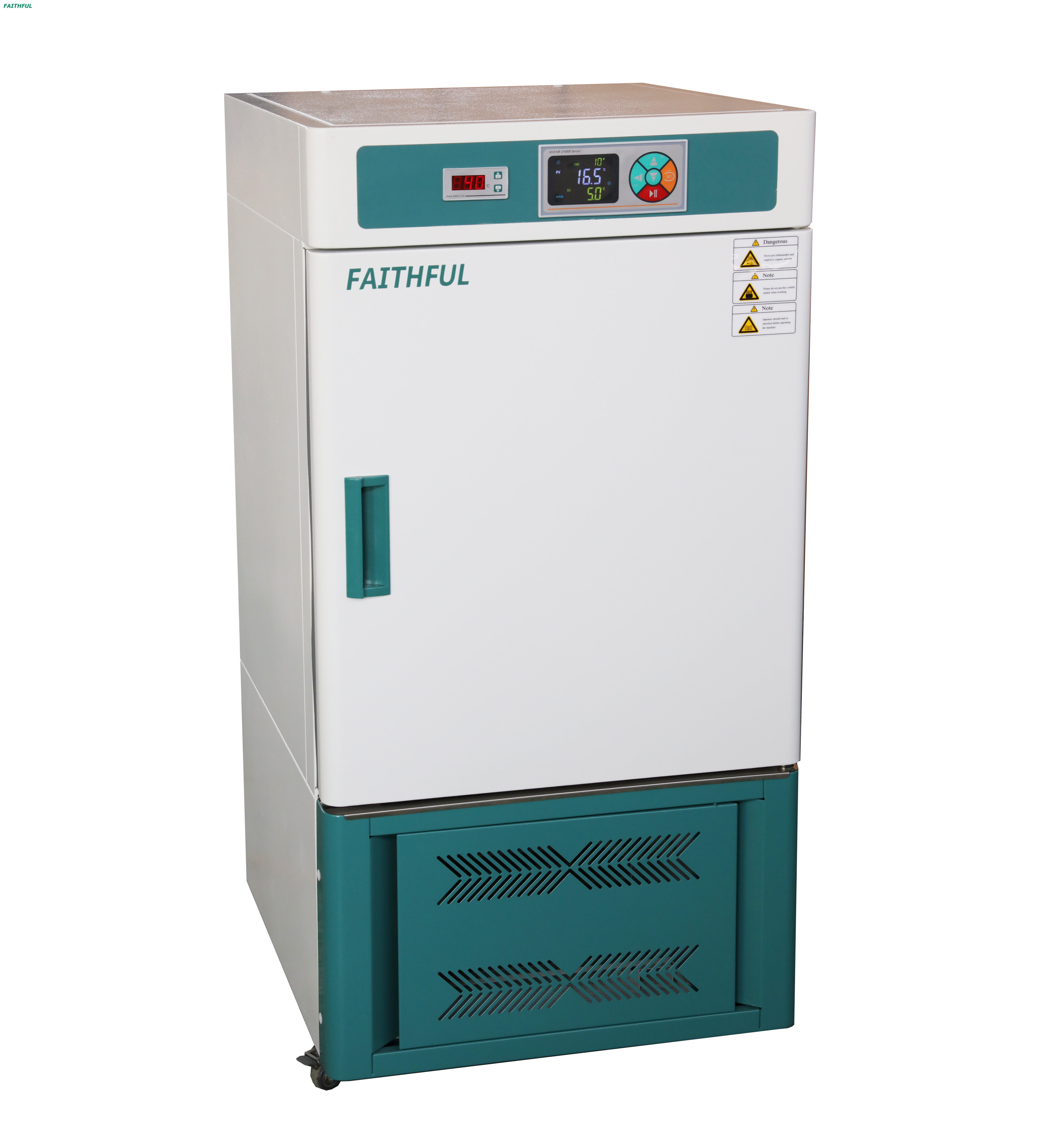

Cooling Incubator/BOD Incubator

Availability:
  • Faithful

Product Description:

1.Unique internal wind circulation structure design, fan breeze circulation.

2. The double door structure, with high quality glass easy to observe the samples, the outer door with magnetic strip, good sealing.

3. Colour LCD display  and 30-stage program temperature control, double evaporators and automatic control intelligent defrosting to ensure long-term operating without defrost. Standard independent temperature limiter, double protection for test safety.

BLTmodel additional characteristics:

1.5.0 inch touch display 30-stage program control, round move, ladder operating.

2.Sensor failure alarm.

3.UV Lamp



ModelSPX-70BVSPX-150BVSPX-250BV
SPX-70BLTSPX-150BLTSPX-250BLT
Cycle ModeForced convection
FunctionTemp. range-5~80℃
Temp. Resolution Ratio0.1℃
Temp. Motion

High Temp.:±0.5℃      Low Temp.:±1℃

 (Temperature stability at 37°C not worse than +/- 0.5°C.)

Temp. Uniformity±0.5℃
StructureInner ChamberMirror Stainless Steel
Outer ShellAISI304
Insulation layerPolyurethane
HeaterStainless steel heating tube
Power rating0.8kW1.0kW1.2kW
CompressorAir cooled hermetic compressor
CryogenR134a
Defrost structureDouble evaporator switching defrosting
Test hole43mm
Controlled external power supplyUniversal socket (one) Built in waterproof socked (one)
Temp.Control modeBIV:Color screen LCD program  BL:5.0 inch touch screen
Temp. setting modeTouch button setting or Touch screen type
Temp. display modeMeasuring temperature: LCD upper screen; setting temperature: the lower row
Timer0~99.9h×30 Segment
Operation functionProgram operation
SensorPT100
Additional funcitonBIV model:LED light, Deviation correction, Menu key lock, Power failure parameter memory
BL model additional character: loop self diagnosis
Safety deviceOver temperature alarm, digital  temperature limiter
SpecificationInner Chamber size(W*L*H)(mm)460*350*500500*500*600600*500*840
Exterior size (W*L*H)(mm)620*610*1190660*760*1290760*760*1530
Packing size (W*L*H)(mm)738*698*1358856*778*1458878*865*1698
Volume80L150L250L
Load per rack15kg
Shelf number91218
Shelf space35mm
Power Supply Current ratingAC220V/2.3AAC220V/3.6AAC220V/5.5A
NW/GW (kg)69/9286/114100/139
Shelf2
optional accessoriesSpare Shelf, RS485 interface, Printer, Program controller, Remote control, U-disk storage
