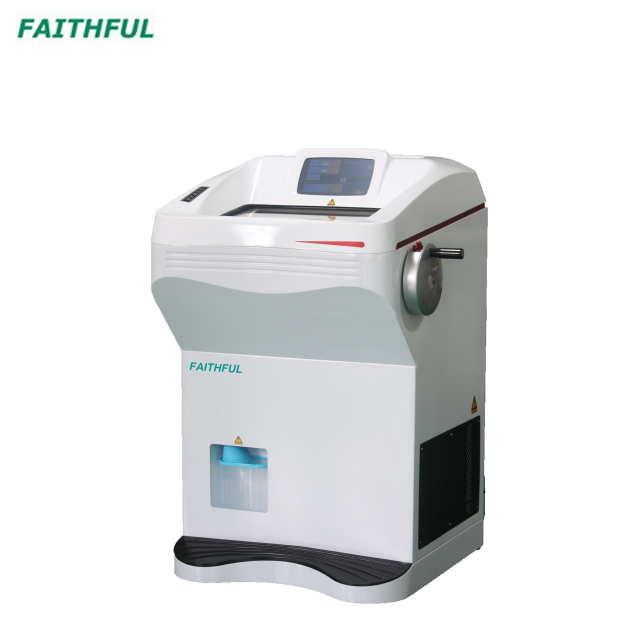

YD-2235
FAITHFUL
l Extra large freeze chamber has UV light sterilization, automatic defrost, and standby mode.
l LED touch screen.
l Double compressor system allows for fast freezing and robust lifespan of cryostat, and total 5 parts including Chamber.
l Knife holder is fully adjustable with anti-rolling plate and blade guard.
l Trimming/Cutting button makes it easy to switch from trim and section mode
l Temperature can drop to working condition in 40 minutes after switching on.
l Two defrost methods.
l Self-explanatory symbols for all functions and displays.
l Temperature control.
l Sensor self-diagnosis function.
l Wide freezing shelf can put 36 specimens discs and including 8 stations with the Peltier fast-freeze mechanism (blue).
l Extra large freeze chamber has UV light sterilization, automatic defrost, and standby mode.
l LED touch screen.
l Double compressor system allows for fast freezing and robust lifespan of cryostat, and total 5 parts including Chamber.
l Knife holder is fully adjustable with anti-rolling plate and blade guard.
l Trimming/Cutting button makes it easy to switch from trim and section mode
l Temperature can drop to working condition in 40 minutes after switching on.
l Two defrost methods.
l Self-explanatory symbols for all functions and displays.
l Temperature control.
l Sensor self-diagnosis function.
l Wide freezing shelf can put 36 specimens discs and including 8 stations with the Peltier fast-freeze mechanism (blue).
Freeze chamber temperature range | 0°C~-50°C |
Blade holder and clamp temperature range | 0°C~-50°C |
Cooling down time to -50°C | 40 min |
Freeze shelf routine temperature | 0°C~-50°C |
Lowest temperature of Peltier unit of freeze shelf | -60°C |
Peltier working time | 15 min |
Maximum specimen size | 55mm*80mm |
Specimen vertical stroke | 65mm |
Specimen horizontal stroker | 22mm |
Coarse feeding speed | 0.9mm/s, 0.45mm/s |
Section thickness range | 1–100μm |
0.5-100μm adjustable | |
0.5-5μm, in 0.5μm increment; 5-20μm, in 1μm increment | |
20-50μm, in 2μm increments; 50-100μm, in 5μm increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm -increments | |
Trimming thickness range | 0μm-600μm |
0μm-600μm adjustable | |
0-50μm, in 5μm increments; 50-100μm, in 10μm increments;10-600μm, in 50μm increments | |
Form 100-200μm in 20μm -increments | |
Form 200-500μm in 50μm -increments | |
Retraction range | 0-60μm adjustable, in 2μm increments |
Voltage and frequency | AC220V ± 10% 50Hz (standard) |
Power | 500W |
Weight | 150kg |
Dimension (W*D*H) | 700 x 760 x 1160mm |
Freeze chamber temperature range | 0°C~-50°C |
Blade holder and clamp temperature range | 0°C~-50°C |
Cooling down time to -50°C | 40 min |
Freeze shelf routine temperature | 0°C~-50°C |
Lowest temperature of Peltier unit of freeze shelf | -60°C |
Peltier working time | 15 min |
Maximum specimen size | 55mm*80mm |
Specimen vertical stroke | 65mm |
Specimen horizontal stroker | 22mm |
Coarse feeding speed | 0.9mm/s, 0.45mm/s |
Section thickness range | 1–100μm |
0.5-100μm adjustable | |
0.5-5μm, in 0.5μm increment; 5-20μm, in 1μm increment | |
20-50μm, in 2μm increments; 50-100μm, in 5μm increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm -increments | |
Trimming thickness range | 0μm-600μm |
0μm-600μm adjustable | |
0-50μm, in 5μm increments; 50-100μm, in 10μm increments;10-600μm, in 50μm increments | |
Form 100-200μm in 20μm -increments | |
Form 200-500μm in 50μm -increments | |
Retraction range | 0-60μm adjustable, in 2μm increments |
Voltage and frequency | AC220V ± 10% 50Hz (standard) |
Power | 500W |
Weight | 150kg |
Dimension (W*D*H) | 700 x 760 x 1160mm |
