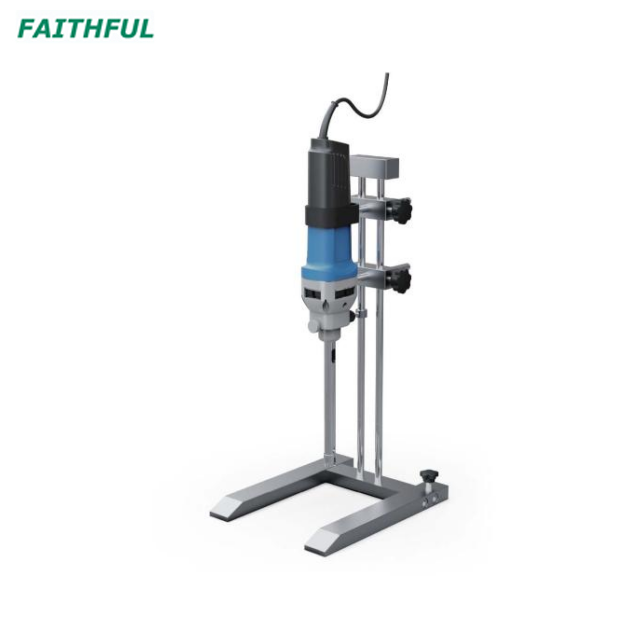

D-500 High Shear Homogenizer

Home » Product » Lab Equipment » Homogenizer » D-500 High Shear Homogenizer

Product Classification

High quality 316L stainless steel with corrosion and autoclave resistance

Rotor with simple design can be dismounted, cleaned, and sterilized conveniently

6 speed levels

Applicable for sample with viscosity up to 10000mPa.s

Replaceable rotors and stators sharing the same shaft, cost-effective

Automatic overload protection mechanism maximizes the working life of motor.

Smooth motor start, stable acceleration without spillage risk

Model	D-500
Speed range	10000-30000rpm
Max linear velocity	22.7-36m/sec
Speed Level	6 stage
Working volume	10-40000mL
Max. viscosity	10000mPa·s
Material of dispersing shaft	SS 316L stainless steel, PTFE
Noise Level	79dB(A)
Protection class	IP20
Voltage, frequency	110-120V/60Hz, 220-240V/50-60Hz
Power	500W
Motor type	AC carbon brush motor
Dimension [WxDxH]	75x75x280mm
Permissible ambient temperature and humidity	0-40℃, 85%RH

Model	D-500
Speed range	10000-30000rpm
Max linear velocity	22.7-36m/sec
Speed Level	6 stage
Working volume	10-40000mL
Max. viscosity	10000mPa·s
Material of dispersing shaft	SS 316L stainless steel, PTFE
Noise Level	79dB(A)
Protection class	IP20
Voltage, frequency	110-120V/60Hz, 220-240V/50-60Hz
Power	500W
Motor type	AC carbon brush motor
Dimension [WxDxH]	75x75x280mm
Permissible ambient temperature and humidity	0-40℃, 85%RH
