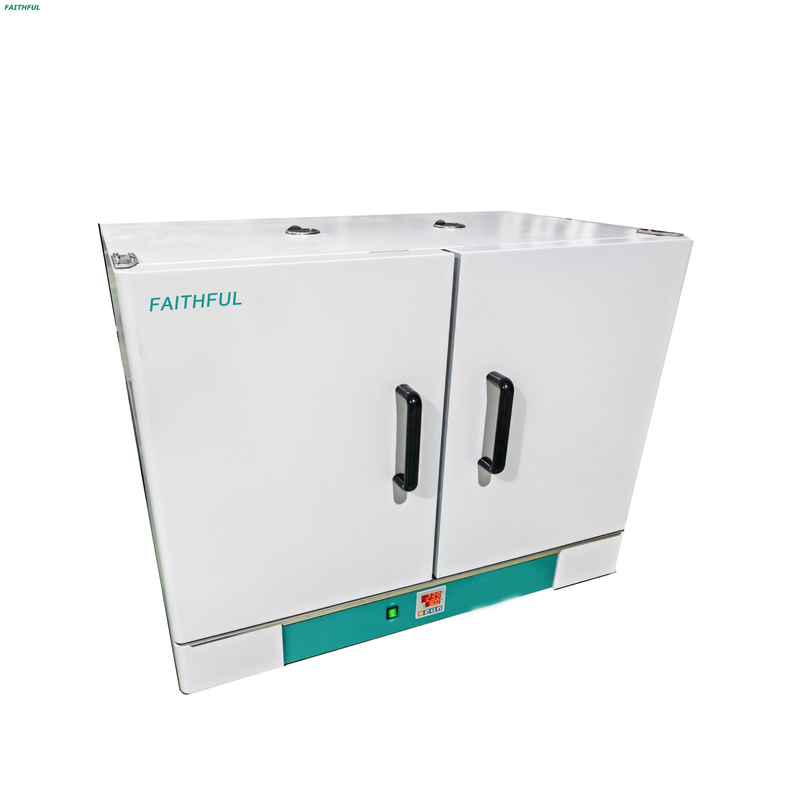

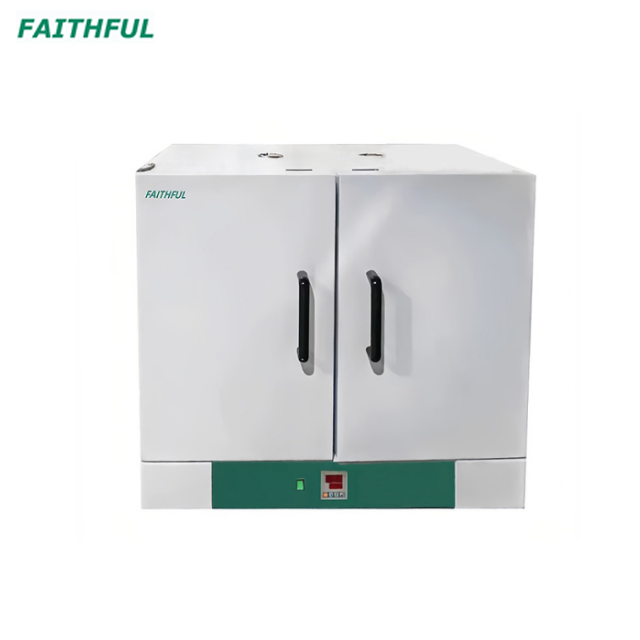

DGF-250B Drying Oven

Product Classification

1.PID or program temperature control controller,with over-temperature alarm system.

2.Double doors ensure that use is convenient.

3.Forced air system,with Low-noise fan,centrifugal cycle mothod,high temperature uniformity.

Faithful Technology Park, No.26 Road, East Development

Zone, Huanghua, Cangzhou, Hebei Province, China 061100
86-317-5337349
86-317-5328349
sales@faithful.cc / info@faithful.cc

Faithful has established enviable reputation for its ability to design and manufacture high quality products.

冀公网安备13098302131132

Model		DGF-250B	DGF-450B
Cycle Mode		Forced Convection
Function	Temp. Range	RT+10-250℃
	Temp. Resolution Ratio	0.1℃
	Temp.Motion	±0.5℃
	Temp.Uniformity	±2.5%
Structure	Inner Chamber	Mirror Stainless Steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation Layer	Composite silicate insulation board
	Heater	Nickel-chromium alloy heating wire
	Power Rating	2.4kW	3.6kW
	Exhaust Hole	φ32mm X 2 top (with function of test hole )
Controller	Temp. Control Mode	PID Intelligent
	Temp. Setting Mode	Touch button setting
	Temp. Display Mode	Measuring temperature:display on upper LCD screen, setting temperature: display on the lower row
	Timer	0-9999min(with timing wait function)
	Operation Function	Fixed temperature operation, timing function,auto stop
	Additional Function	Sensor deviation correction, temperature overshoot self-tuning,internal parameter locking, power-off parameter memory
	Sensor	PT100
Safety Device		Over temperature sound-light alarm
Specification	Inner Chamber Size(WLHmm)	950450550	950600790
	Exterior Size(WLHmm)	1087727807	10878771047
	Packing Size(WLHmm)	1137777942	11379271182
	Volume	250L	450L
	Max Shelf Number	6 Layers	10 Layers
	Shelf Space
	Load Per Rack	15kg
	Supply(50/60HZ)Current Rating	AC220V/11.0A	AC220V/16.4A
	NW/GW(kg)	94/120	150/190
	Shelf Number	2
Optional Accessories		Shelf
