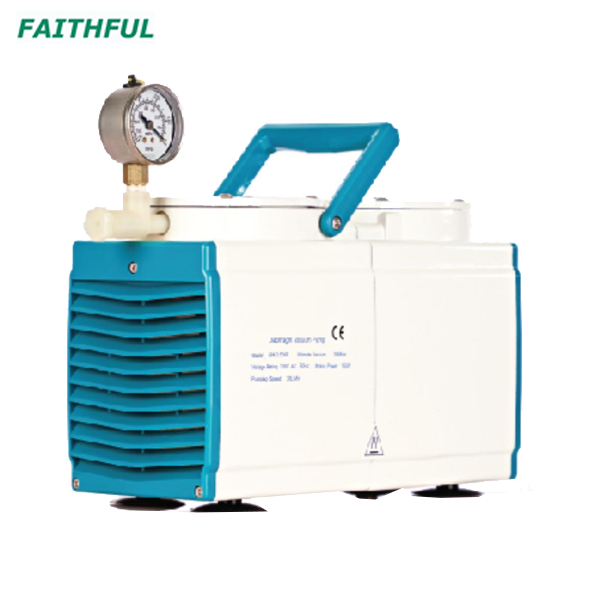

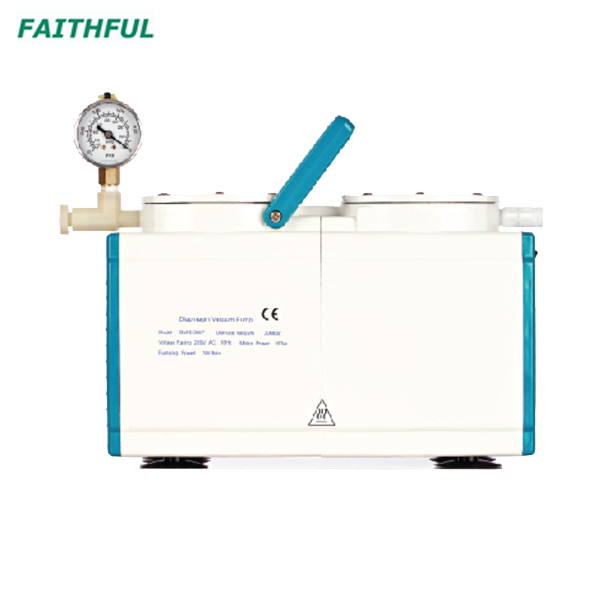

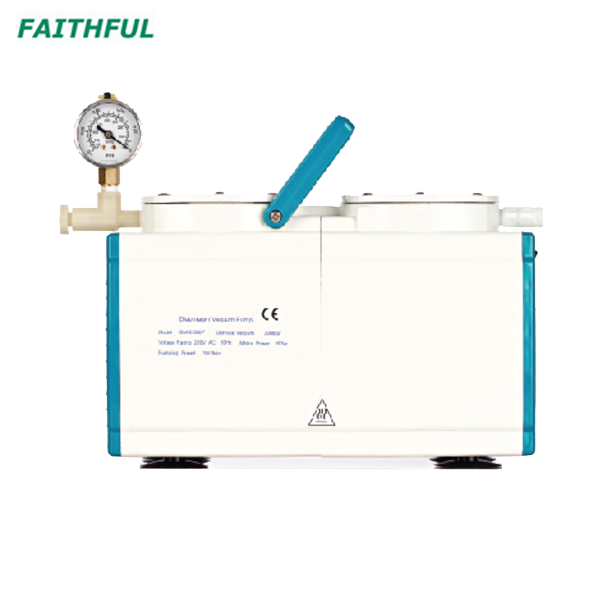

Diaphragm Vacuum Pump GM-0.5BF

Availability:
Quantity:
Inquire Add to Basket

  • GM-0.5BF

  • FAITHFUL

Superior Chemical Resistance: PTFE air chamber and airflow path ensure exceptional resistance to corrosion and organic solvents.

High-Performance Components: Imported bearings for smooth, quiet operation; FFPM rubber valve sheet for chemical resistance and durability.

Advanced Engineering: High-grade electrical system with auto-cooling for 24/7 continuous operation; boosts lab efficiency with high-precision vacuum.


Model

GM-0.5BF

Speed of Evacuation (L/Min)

30

Ultimate Pressure Vacuum

≥0.097Mpa 30mbar

Voltage Rating

220V/110V;50HZ/60HZ

Motor Power(W)

160W

Inlet (mm)

Φ6

Temperature of Working Environment (℃)

7-40

Function

Vacuum

Pump Head

2

Temp.of the Body

＜55℃

Dimensions (LxWxH) (mm)

350x130x215

Noise Level (dB)

＜60

Weight (kg)

10

Diaphragm

PTFE

Valves

NBR






download GM-0.5BF.pdf
