Diaphragm Vacuum Pump GM-2

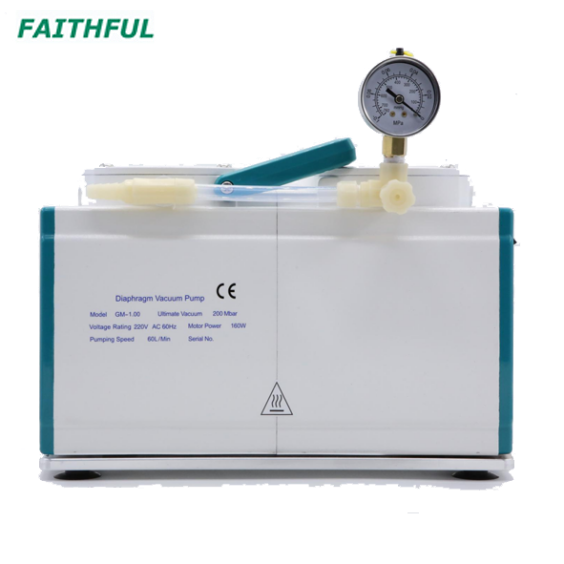

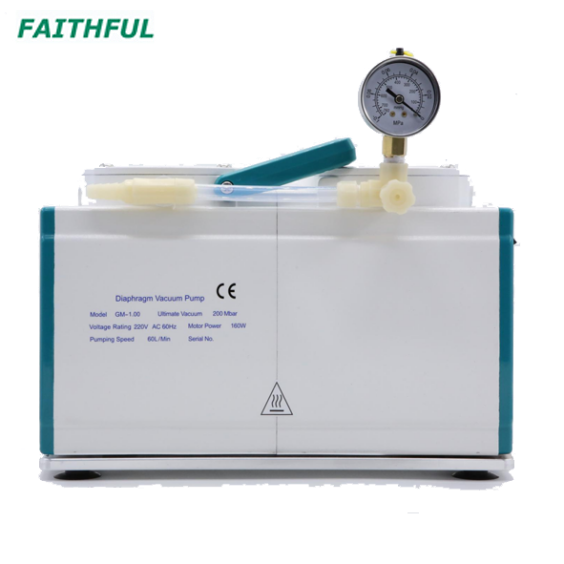

In the picture, the blue is the ordinary model, and the green is the anti-corrosion model.
Availability:
Quantity:
  • GM-2

  • FAITHFUL

Ordinary

l High Performance: Adjustable pressure design for optimal vacuum/airflow. Imported bearings enable smooth, quiet, and efficient operation.

l Reliable & Safe: Automatic cooling system allows 24/7 continuous operation. Motor (CE-certified) includes overheat protection (auto-shutoff at 130°C).

l Compact & Durable: Nylon-coated anti-corrosive pump parts resist chemical damage. Lightweight, space-saving design with easy maintenance.

Anticorrosive

l Extreme Chemical Resistance: Withstands strong acids (including aqua regia), alkalis, oxidizers, reductants, and organic solvents.

l Wide Temperature Range: Operates reliably from -190°C to 260°C.

l Non-Stick Surface: Prevents adhesion of solid materials and impurities, ensuring easy cleaning and maintenance.



Model

GM-2

Speed of Evacuation (L/Min)

120

Ultimate Pressure Vacuum

≥0.08Mpa 200mbar

Voltage Rating

220V/110V;50HZ/60HZ

Motor Power(W)

300W

Inlet (mm)

Φ9

Outlet (mm)

Φ9

Temperature of Working Environment (℃)

7-40

Function

Vacuum & Pressure

Pump Head

2

Temp.of the Body

<55℃

Dimensions (LxWxH) (mm)

390x150x250

Noise Level (dB)

<60

Weight (kg)

19

Diaphragm

NBR

Valves

NBR
