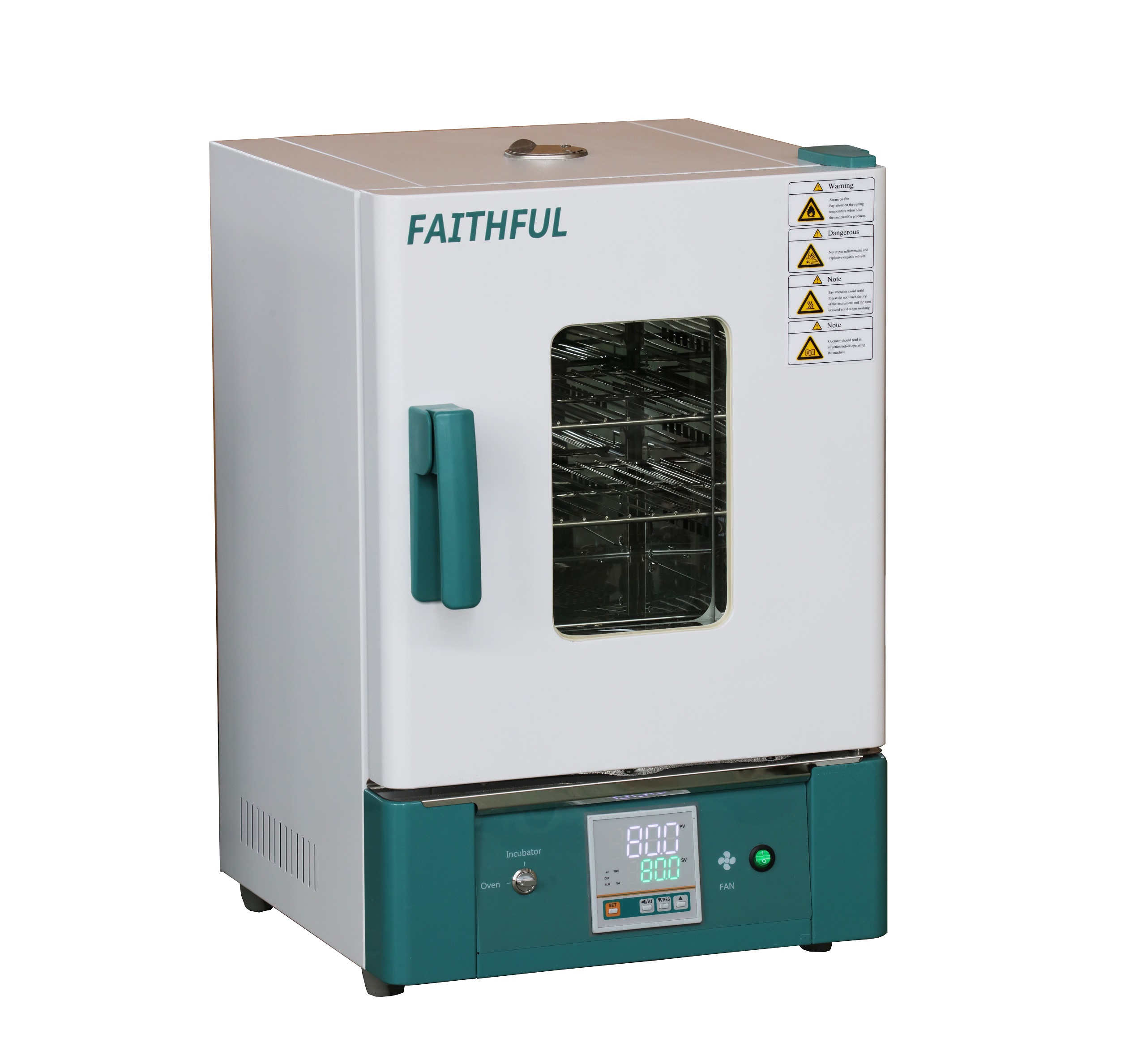

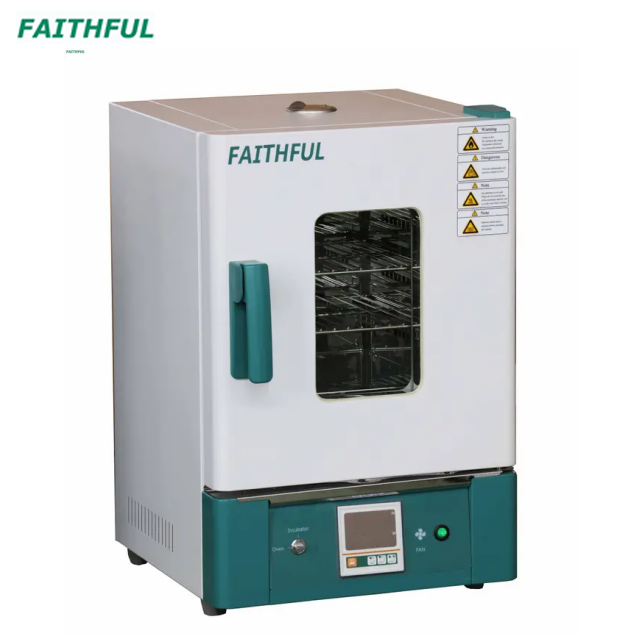

GP-30B,GP-45B,GP-65B,GP-85B,GP-125B,GP-230B，GP-30BE,GP-45BE,GP-65BE,GP-85BE,GP-125BE,GP-230BE，GP-30BE(304),GP-45BE(304),GP-65BE(304),GP-85BE(304),GP-125BE(304),GP-230BE(304)
FAITHFUL
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With Oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display
4. New anti-hot handle.
GP-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With Oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display
4. New anti-hot handle.
GP-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.

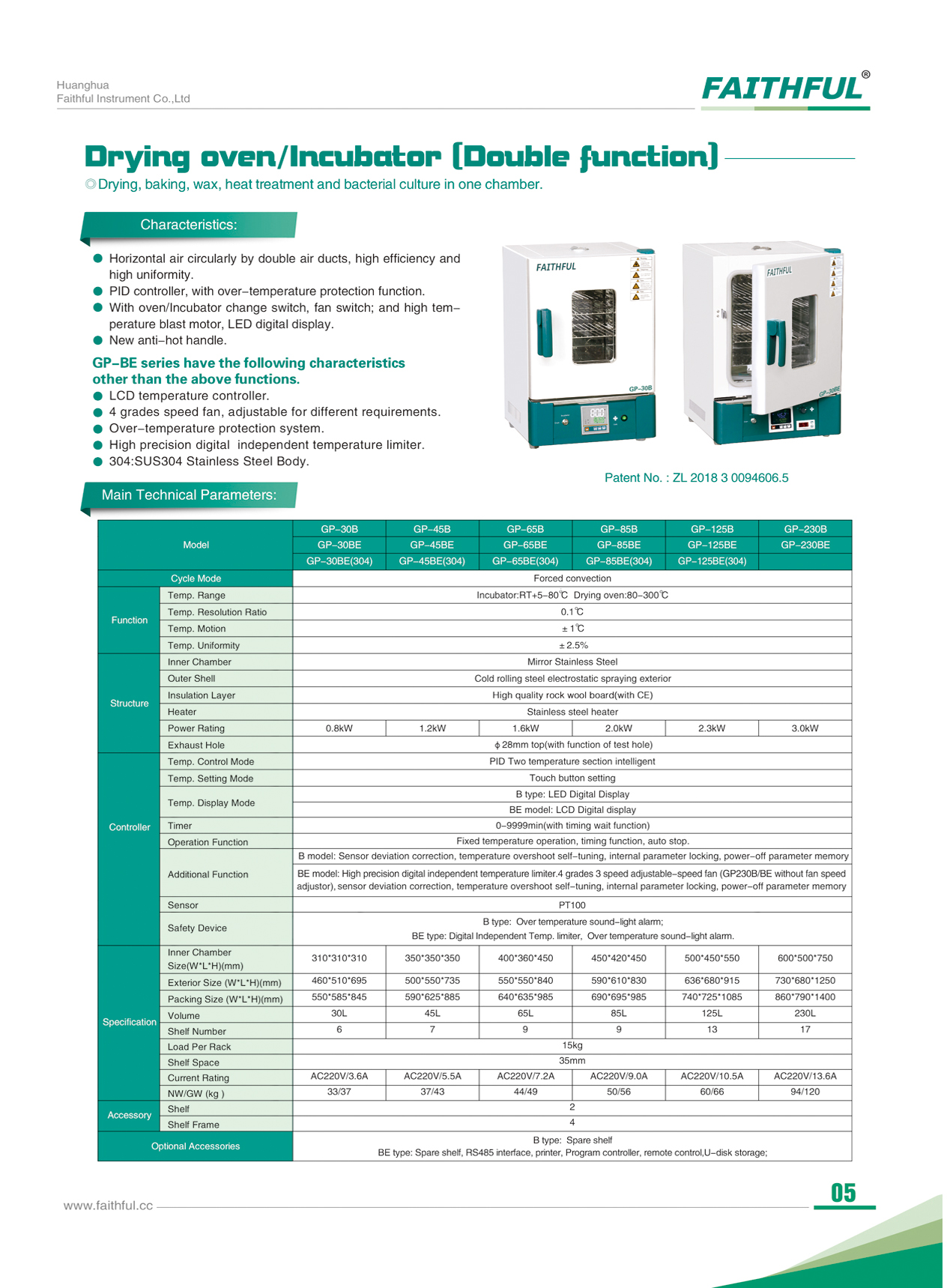

| Model | GP- 30B | GP- 45B | GP- 65B | GP- 85B | GP- 125B | GP- 230B | |
| GP- 30BE | GP- 45BE | GP- 65BE | GP- 85BE | GP- 125BE | GP- 230BE | ||
| GP- 30BE(304) | GP- 45BE(304) | GP- 65BE(304) | GP- 85BE(304) | GP- 125BE(304) | |||
| Cycle Mode | Forced convection | ||||||
| Function | Temp. range | Incubator:RT+5-80℃ Drying oven:80-300℃ | |||||
| Temp. Resolution Ratio | 0.1℃ | ||||||
| Temp. Motion | ±1℃ | ||||||
| Temp. Uniformity | ±2.5% | ||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior 304: SUS 304 embossed stainless steel shell | ||||||
| Insulation layer | High quality rock wool board(with CE) | ||||||
| Heater | Stainless steel heater | ||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | |
| Exhaust hole | φ35mm top(with function of test hole) | ||||||
| Controller | Temp. control mode | PID Two temperature section intelligent PID | |||||
| Temp. setting mode | Touch button setting | ||||||
| Temp. display mode | B type: LED Digital Display | ||||||
| BE model: LCD Digital display | |||||||
| Timer | 0-9999min(with timing wait function) | ||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | ||||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| BE model: High precision digital independent temperature limiter, 4 grades &3 speed adjustable speed fan (GP230B/BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||
| Sensor | Pt100 | ||||||
| Safety device | B type: Over temperature sound-light alarm BE type: Digital independent temp. limiter, Over temperature sound-light alarm | ||||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 |
| Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | 730*680 *1250 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885 *1287 | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | |
| Load per rack | 15kg | ||||||
| Shelf space | 40mm | ||||||
| Current rating | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 9.0A | AC220V/ 10.5A | AC220V/ 13.6A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
| Accessory | Shelf | 2 | |||||
| Shelf frame | 4 | ||||||
| optional accessories | B type: Spare shelf BE type: Spare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage; wireless SMS alarm, 3.5-inch color touch screen temperature controller. | ||||||
