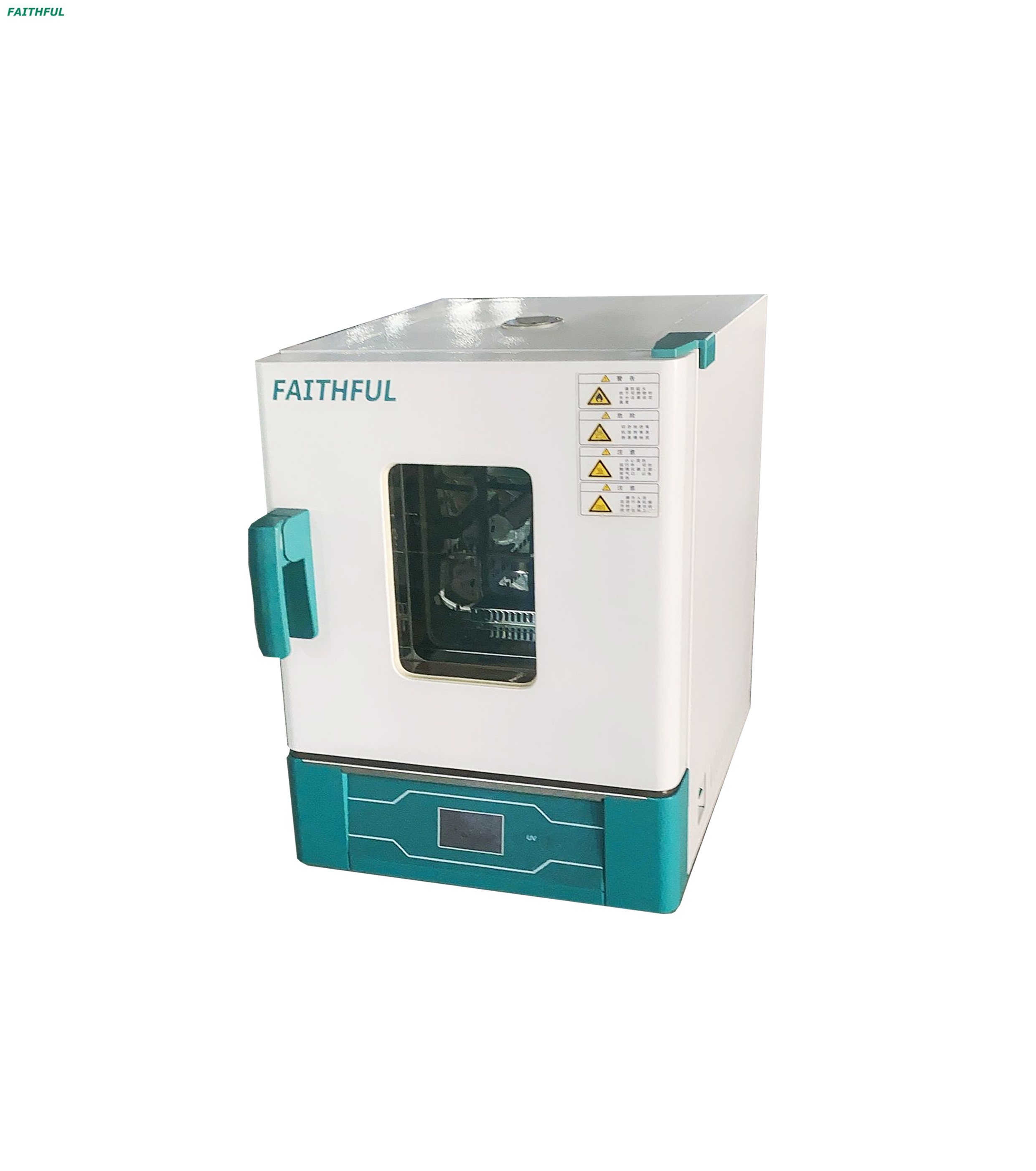

FDS-30BE,FDS-65BE
FAITHFUL
1. Horizontal air circularly by double air ducts,high efficiency and high uniformity.
2. 3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop automatically , operation is convenient.
3. High temperature UVC lamp. It can be sterilized not only by high temperature but also by UV lamp.
4. Over temperature sound-light alarm,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.
1. Horizontal air circularly by double air ducts,high efficiency and high uniformity.
2. 3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop automatically , operation is convenient.
3. High temperature UVC lamp. It can be sterilized not only by high temperature but also by UV lamp.
4. Over temperature sound-light alarm,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.
Model | FDS-30BE | FDS-65BE | |
Cycle Mode | Forced convection | ||
Function | Temp. Range | RT+10-300°C | |
Temp. Resolution Ratio | 0.1°C | ||
Temp. Motion | ±1°C | ||
Temp. Uniformity | ±2.5% | ||
Structure | Inner Chamber | Mirror Stainless Steel | |
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||
Insulation Layer | High quality rock wool board | ||
Heater | Stainless steel heater | ||
High Temperature Germicidal | Standard high temperature germicidal lamp | ||
Power Rating | 0.8kW | 1.6kW | |
Exhaust Hole | φ35mm top(with function of test hole) | ||
Controller | Temp.Control Mode | Two temperature section PID intelligent | |
Temp.Setting Mode | 3.5 inch touch screen | ||
Temp.Display Mode | Touch screen preset 4 mode settings, | ||
Timer | 0-9999min(with timing wait function) | ||
Operation Function | Fixed temperature operation, fixed timing operation, auto stop | ||
Additional Function | Over temperature sound-light alarm, Sensor deviation correction, | ||
Sensor | pt100 | ||
Safety Device | Over temperature alarm and cut off heating | ||
Specification | Inner Chamber Size(W*L*H)(mm) | 310*310*310 | 400*360*450 |
Exterior Size(W*L*H)(mm) | 450*500*690 | 540*550*830 | |
Packing Size(W*L*H)(mm) | 540*575*855 | 635*625*995 | |
Volume | 30L | 65L | |
Shelf number | 6 | 9 | |
Load Per Rack | 15kg | ||
Shelf Space | 35mm | ||
Power Rating(50/60HZ) | AC220V/3.6A | AC220VI7.2A | |
NW/GW(kg) | 33/37 | 44/49 | |
Accessory | Shelf | 2 | |
Shelf Frame | 4 | ||
Optional Accessories | Spare shelf, RS485 communication interface, high temperature resistant UVC germicidal lamp |
