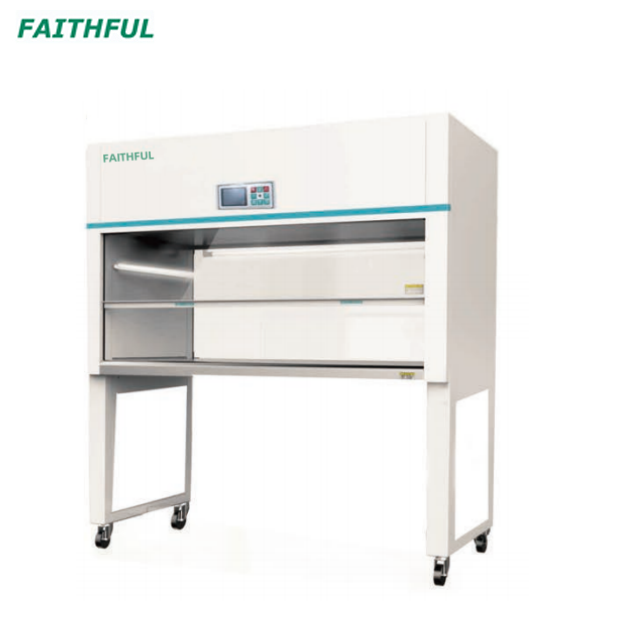

Economic Typr Laminar Flow Cabinet

Home » Product » Lab Equipment » Laminar Flow Cabinet » Laminar Flow Cabinet(Vertical Type) » Economic Typr Laminar Flow Cabinet

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Classification

Model:
CJ-1DL, CJ-1SL, CJ-2DL, CJ-2SL
Brand:
FAITHFUL

Characteristics:

1. Vertical laminar flow type, 304 stainless steel table, can effectively prevent external gas penetration into the operating clean area.

2. Centrifugal fan, stable speed, low noise, light touch air volume control system, five section wind speed control, wind speed 0.2-0.6m/s adjustable.

3. High quality without partition air high efficiency filter, good purification effect.

4. LCD color screen controller (with sterilization reservation function, sterilization timer, built-in socket instrument controllable switch, front window status display, can set three interlock , cumulative work timing, remote control).

5. High quality no ozone UVC sterilization lamp, good sterilization effect, good durability.

6. Patent No.: ZL2015.3.0282033.5

Laminar Flow Cabinet economic type laminar flow cabinet CJ-1DL CJ-1SL CJ-2DL CJ-2SL

Model		CJ-1DL	CJ-1SL	CJ-2DL	CJ-2SL
Applicable to the station		One person one side	One person two sides	Two person one side	Two person two sides
Airflow direction		Vertical
Function	Cleanliness	ISO Class 5, Class 100
	Collection efficiency	0.3um particle ≥99.995%
	Colony Count	≤0.5/Vessel(φ90mm Petri dish)
	Wind Speed	0.2-0.6(m/s)
	Noise	≤62db
	Vibration Semi-Peak Value	≤3um
	Illumination	≥300LX (Operation center)
	Work surface load (Max)	50kg
Composition	Work Surface	SUS304 Stainless Steel
	Outer Shell	Cold-rolled steel electrostatic spraying exterior
	Operation Door	Tempered Glass
	HEPA Filter(mm)	82060050, one piece		61061050, two pieces
	Fluorescent Lamp	15W*2
	UV Lamp	15W*2
	Rated Power	250W		500W
Controller	Display	LCD
	Wind speed controller	Intelligent multi-level adjustable
	Additional Function	Built-in universal socket: 2pcs, HEPA Filter, UV lamp lifetime alarm, adjustable castors,one key to turn on and off UV Lamp
Specifications	Inner Size(WDH)mm	870690520	870690520	1360690520	1360690520
	Exterior Size(WDH)mm	10107501600	10107801600	15007501600	15007801600
	Packing Size(WDH)mm	11608721765	11609021765	16508721765	16509021765
	Max power of universal socket	Single socket：300W
	Current Rating (50/60Hz)	AC220V/1.1A		AC220V/2.3A
	NW/GW kg	130/170	130/170	170/210	170/210

Model		CJ-1DL	CJ-1SL	CJ-2DL	CJ-2SL
Applicable to the station		One person one side	One person two sides	Two person one side	Two person two sides
Airflow direction		Vertical
Function	Cleanliness	ISO Class 5, Class 100
	Collection efficiency	0.3um particle ≥99.995%
	Colony Count	≤0.5/Vessel(φ90mm Petri dish)
	Wind Speed	0.2-0.6(m/s)
	Noise	≤62db
	Vibration Semi-Peak Value	≤3um
	Illumination	≥300LX (Operation center)
	Work surface load (Max)	50kg
Composition	Work Surface	SUS304 Stainless Steel
	Outer Shell	Cold-rolled steel electrostatic spraying exterior
	Operation Door	Tempered Glass
	HEPA Filter(mm)	82060050, one piece		61061050, two pieces
	Fluorescent Lamp	15W*2
	UV Lamp	15W*2
	Rated Power	250W		500W
Controller	Display	LCD
	Wind speed controller	Intelligent multi-level adjustable
	Additional Function	Built-in universal socket: 2pcs, HEPA Filter, UV lamp lifetime alarm, adjustable castors,one key to turn on and off UV Lamp
Specifications	Inner Size(WDH)mm	870690520	870690520	1360690520	1360690520
	Exterior Size(WDH)mm	10107501600	10107801600	15007501600	15007801600
	Packing Size(WDH)mm	11608721765	11609021765	16508721765	16509021765
	Max power of universal socket	Single socket：300W
	Current Rating (50/60Hz)	AC220V/1.1A		AC220V/2.3A
	NW/GW kg	130/170	130/170	170/210	170/210
