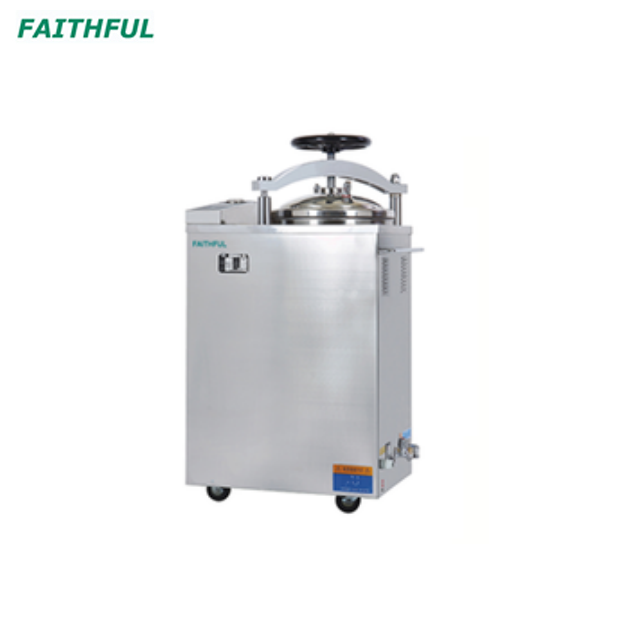

Electric-heated Vertical Steam Sterilizer -FSF-HG

Vertical Pulsation Vacuum Steam Sterilizer-FSF-HG Series
Availability:
Quantity:
  • FSF-35HG FSF-50HG FSF-75HG FSF-100HG

  • FAITHFUL

Characteristics:

1.Fully stainless steel structure.

2.Hand wheel type of quick-open door structure.

3. Door safety lock system.

4.Automatically controlled by computer.

5.Digital display of working status, touch of key.

6.Over temperature & over pressure auto-protection.

7.Steam-water inner circulation system: no steam dis- charge, and the environment for sterilizing will be clean and dry.

8. Self-inflating type seal.

9.Safe protection of water lacking.

10. The drying system is optional, which can be equipped according to the customers' request.

11. Automatically shut off with beep reminding after sterilization.

12.With two stainless steel sterilizing baskets.



Model

FSF-35HG

FSF-50HG

FSF-75HG

FSF-100HG

Chamber Volume

35L

Φ318*415mm

50L

Φ340*550mm

75L

Φ400*600mm

100L

Φ440*650mm

Design Pressure

0.3Mpa

Design Temperature

150℃

Max.Working Temperature

138℃

Max.Working Pressure

0.25MPa

Timer Range

0-99min or 0-99h 59 min

Power

1*2.5KW/AC 220V.50HZ

2*1.5KW/AC 220V.50HZ

3*1.5KW/AC 220V.50HZ

Overall Dimension(mm)

710*490*1150

710*490*1150

750*510*1250

750*510*1250

Transport Dimension(mm)

740*550*1310

740*550*1310

780*600*1420

780*600*1420

G.W/N.W(kg)

120/95

124/100

137/111

155/129
