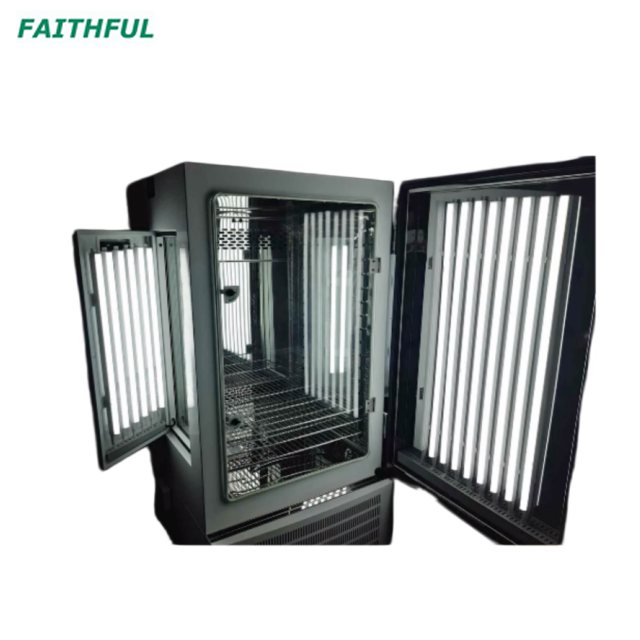

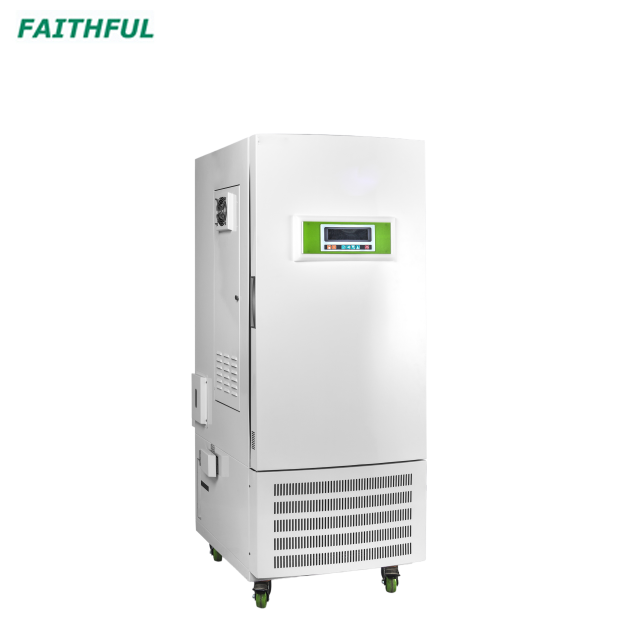

FAC-N Climate Chamber

Chamber Volume

175L

275L

375L

475L

800L

1075L

Temp. Range

With light:10～55℃    Without light:0～55℃(optional 0~70℃)

Temp. Stability

≦±1℃

Display Resolution

0.1℃

Temp. Uniformity

≦±1℃

Humidity Range

30~95%RH

Humidity Deviation

±3%RH

Light Intensity (LX)

0~12000

6 levels control

0-20000

6 levels control

0-25000
6 levels control

0-30000
6 levels control

0-30000
6 levels control

0-30000
6 levels control

Power Rating

1650W

2200W

2700W

2900W

4200W

4200W

Power Supply

AC220V, 50HZ

Operating Temperature

+5～35℃

Chamber Size(W×D×H)cm

45*42*93

58*51*94

59*55*116

70*55*125

96*61*137

95*70*160

Exterior Size(W×D×H)cm

65*73*175

77*74*171

78*87*191.5

88*87*189.5

110*93*227

101*90*234

Number of Grids(Std/Max)

3/16

3/16

3/21

3/22

3/22

3/22
