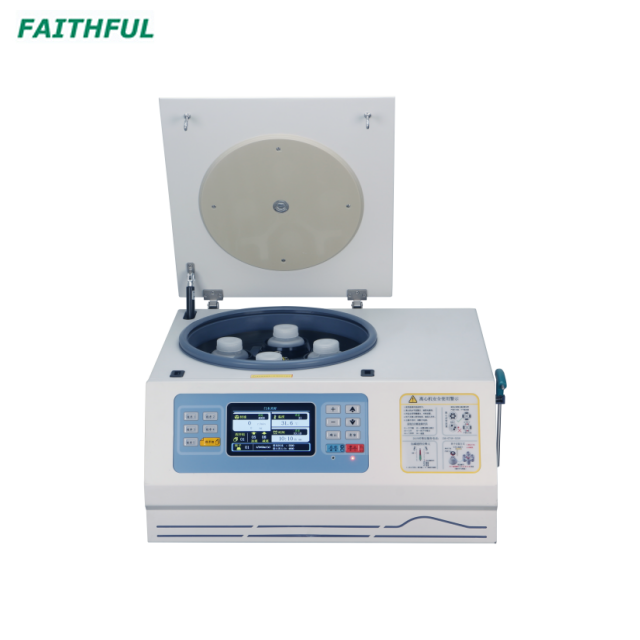

FDTR35C Low Speed Table Refrigerated Centrifuge

Home » Product » Analytical Equipment » Centrifuge » Low Speed Centrifuge » FDTR35C Low Speed Table Refrigerated Centrifuge

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Classification

Model:
FDTR35C
Brand:
FAITHFUL

Equipped with five groups of programs.

Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.

Automatic electronic door lock.

One key short-time centrifuge button.

HD large LCD display and the parameters can be revised during operation without shutdown.

Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

10 gear acceleration /deceleration with linear drive.

Two modes can be set: start timing/arrival revolution timing.

With rotor automatic identification system .

Over speed,over heat,unbalance protections with auto lid lock.

Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Special noise reduction system.

Equipped with a rotor lid that can be quickly locked for easy use.

Technical Parameter:

Model	FDTR35C
Max Speed	5500rpm
Max RCF	4675×g
Max Capacity	4×250ml
Timer	1s～99h59min59s
Revolutions/min	±10r/min
Temp.Range	-20℃～40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50/60Hz 10A
Power	1000W
Noise Level	≤60dB (A)
Exterior Size	680×660×395 (mm)
Net Weight	108kg
Rotor Automatic identification	Yes

Rotor Parameters

Angle Rotor No.1	Angle Rotor No.2
Max, speed: 5500rpm Max RCF: 3645xg Rotor capacity: 6×50ml(W)	Max, speed: 5000rpm Max RCF: 4919xg Rotor capacity: 40×15ml(W)
Swing-out Rotor No.3	Swing-out Rotor No.4
Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 4×50ml	Max, speed: 4000rpm Max RCF:2951xg Rotor capacity: 4×100ml
Swing-out Rotor No.5	Swing-out Rotor No.6
Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 8×50ml	Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 8×100ml
Swing-out Rotor No.7	Swing-out Rotor No.8
Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity:16×10/15ml(Optional)	Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 24×10/15ml(Optional)(W)
Swing-out Rotor No.9	Swing-out Rotor No.10
Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity:32×10/15ml(Optional)	Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 48×2~7ml(Blood collection tube)
Swing-out Rotor No.11	Swing-out Rotor No.12
Max, speed: 4000rpm Max RCF: 2951xg Rotor capacity: 64×5ml(Blood collection tube)	Max, speed: 4000rpm Max RCF: 3040xg Rotor capacity: 4×250ml(Round bottom)
Swing-out Rotor No.13	Swing-out Rotor No.14
Max, speed: 4000rpm Max RCF: 3040xg Rotor capacity:4×250ml(Round bottom) (with biosafety lid)	Max, speed: 4000rpm Max RCF: 3040xg Rotor capacity:Auto uncap 64×2~7ml(Blood collection tube)
Swing-out Rotor No.15	Swing-out Rotor No.16
Max, speed: 4000rpm Max RCF: 3040xg Rotor capacity:4×250ml square bucket 4×4×50ml conical bottom ,4×10× 15ml conical bottom	Max, speed: 4000rpm Max RCF: 3040xg Rotor capacity:Micro-plate 2×2×96 hole
