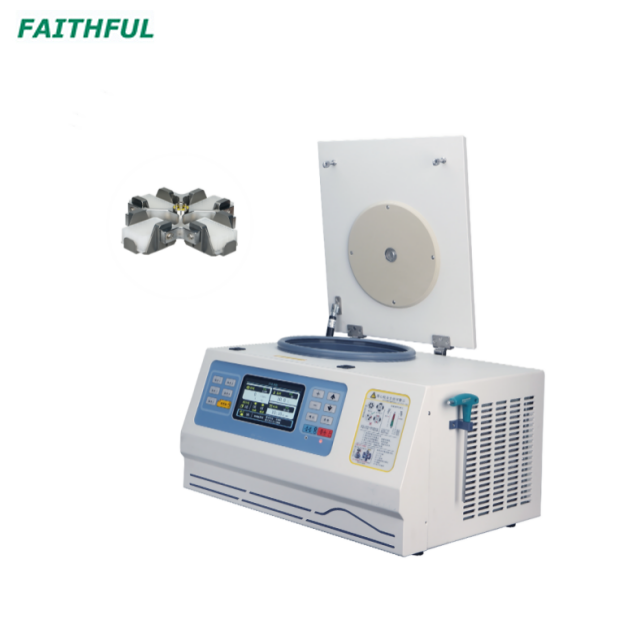

FDTR46C Low Speed Table Refrigerated Centrifuge

Home » Product » Analytical Equipment » Centrifuge » Low Speed Centrifuge » FDTR46C Low Speed Table Refrigerated Centrifuge

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Classification

Model:
FDTR46C
Brand:
FAITHFUL

Equipped with five groups of programs.

Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.

Automatic electronic door lock.

One key short-time centrifuge button.

HD large LCD display and the parameters can be revised during operation without shutdown.

Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

10 gear acceleration /deceleration with linear drive.

Two modes can be set: start timing/arrival revolution timing.

With rotor automatic identification system .

Over speed,over heat,unbalance protections with auto lid lock.

Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Special noise reduction system.

Equipped with a rotor lid that can be quickly locked for easy use.

Technical Parameters

Model	FDTR46C
Max Speed	6500rpm
Max RCF	5495×g
Max Capacity	4×750ml
Timer	1s～99h59min59s
Revolutions/min	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 15A
Power	1500W
Noise Level	≤ 60dB（A）
Exterior Size	730×660×400 (mm)
Net Weight	120kg
Automatic rotor Identification	Yes

Rotor Parameters

Angle Rotor No.1	Angle Rotor No.2
Max, speed: 6500rpm Max RCF: 5091xg Rotor capacity: 6×50ml(W)	Max, speed: 5500rpm Max RCF: 5071xg Rotor capacity: 40×15ml(W)
Swing-out Rotor No.3	Swing-out Rotor No.4
Max, speed: 4200rpm Max RCF: 3648xg Rotor capacity: Auto uncap 120×2~7ml (Blood collection tube)	Max, speed: 4200rpm Max RCF: 3648xg Rotor capacity: 4×750ml(Round bucket)
Swing-out Rotor No.5	Swing-out Rotor No.7
Max, speed: 4200rpm Max RCF: 3648xg Rotor capacity: 4×750ml(Square bucket)	Max, speed: 4200rpm Max RCF: 3510xg Rotor capacity:Auto uncap 104×2-7ml(blood collection tube)
Swing-out Rotor No.8	Swing-out Rotor No.9
Max, speed: 4200rpm Max RCF: 3510xg Rotor capacity: 4×500ml(Round bucket)	Max, speed: 4200rpm Max RCF: 3510xg Rotor capacity:4×500ml(Round bucket)(with biosafetey lid)
Swing-out Rotor No.10	Swing-out Rotor No.10
Max, speed: 4200rpm Max RCF: 3510xg Rotor capacity: 4×500ml Square bucket	Max, speed: 4200rpm Max RCF: 3510xg Rotor capacity: 4×500ml (Conical bottom)(Corning tube)
Pipe Rack No.11	Swing-out Rotor No.12
Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity:Auto uncap 64× 2-7ml(blood collection tube)	Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity: 4×250ml(Round bucket)
Swing-out Rotor No.13	Swing-out Rotor No.14
Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity:4×250ml(Round bucket)(with biosafety lid)	Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity: 4×250ml(Square cup) 4×4× 50mL conical bottom, 4× 10× 15ml conical bottom
Swing-out Rotor No.15	Swing-out Rotor No.16
Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity:4×250ml(Conical bottom)(Corning tube)	Max, speed: 4200rpm Max RCF: 3352xg Rotor capacity: 6×250ml(Round bucket)

Bucket No.17	Basket No.18
Max, speed: 4500rpm Max RCF: 4335xg Rotor capacity: 4×750ml (Round bucket) (with biosafety lid) 4× 14× 15ml conical bottom, 4×7×50ml conical bottom	Max, speed: 4500rpm Max RCF: 4335xg Rotor capacity: Micro-plate 4× 2× 96 hole
Swing-out Rotor No.19		Swing-out Rotor No.20
Max, speed: 4500rpm Max RCF: 4335xg Rotor capacity: Auto uncap 2-7ml× 120 (blood collection tubes)		Max, speed: 4500rpm Max RCF: 4335xg Rotor capacity: 500ml blood bag (include blood bag adapters)
Swing-out Rotor No.21
Max, speed: 6500rpm Max RCF: 5495xg Rotor capacity:Micro-plate (D)2×2×96 hole
