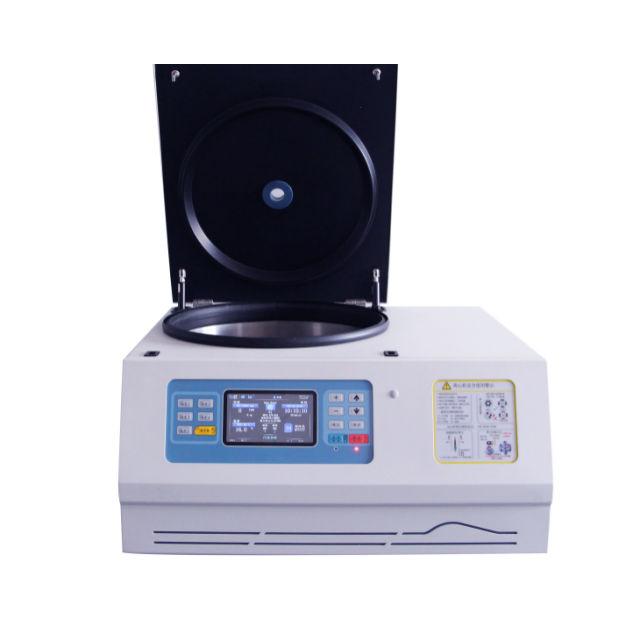

FGR16C High Speed Table Refrigerated Centrifuge

Home » Product » Analytical Equipment » Centrifuge » High Speed Centrifuge » FGR16C High Speed Table Refrigerated Centrifuge

Product Classification

Automatically calculate RCF,RPM and RCF switching freely.

Can store 99 groups of program and with shortcut key.

Up to 10 level acceleration/ deceleration with Linear drive.

With five groups of user-defined preset programs that can be called by one key.

Long press the start/instantaneous key to realize instantaneous centrifugation.

Two modes can be set: start timing/ arrival revolution timing.

Imported energy-efficient ECO friendly refrigeration system.

Microcomputer control with HD large LCD touch screen,driven by AC frequency conversion brush-less motor.

With rotor automatic identification system.

Full steel inner cavity protective cover.

Over speed,over heat, unbalance etc protections and ensure safe operation.

Equipped with rotor lid that can be quickly locked.

Ergonomic, low opening height, close the centrifuge lid with one time press.

Special noise reduction system.

Model	FGR16C
Max Speed	16000rpm
Max RCF	27375×g
Max Capacity	4×1000ml
Timer	1s～99h59min59s
Revolutions	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 20A
Power	2300W
Noise Level	≤ 65dB(A)
Size	770×700×435 (mm)
Net Weight	140kg
Automatic Rotor Identification	Yes

Angle Rotor No.1	Angle Rotor No.2
Max, speed: 16000rpm Max RCF: 27375xg Rotor capacity: 48×1.5/2.0ml(Double row)	Max, speed: 15500rpm Max RCF: 26859xg Rotor capacity: 30×1.5/2.0ml(Single row)
Angle Rotor No.3	Angle Rotor No.4
Max, speed: 15000rpm Max RCF: 22010xg Rotor capacity: 18×5ml(Single row)	Max, speed: 12000rpm Max RCF: 15213xg Rotor capacity: 8×50ml(Conical/round bottom)
Angle Rotor No.5	Angle Rotor No.6
Max, speed:12500rpm Max RCF: 18550xg Rotor capacity: 6×100ml	Max, speed: 10000rpm Max RCF: 15383xg Rotor capacity: 12×50ml (Conical/round bottom)
Angle Rotor No.7	Swing-out Rotor No.8
Max, speed: 10000rpm Max RCF:15093xg Rotor capacity: 6×250ml	Max, speed: 4200rpm Max RCF: 3983xg Rotor capacity: 4×1000ml(Square bucket)
Swing-out Rotor No.9	Adapter No.1
Max, speed: 4200rpm Max RCF: 3983xg Rotor capacity:4×1000ml(Square bucket)(biosafety lid)	Rotor capacity: Micro-plate bucket 4×2×96 hole 4×500ml(Conical bottom)
Adapter No.2	Adapter No.3
Rotor capacity: 4× 10×50ml(Conical/round bottom) 4x250ml(Conical bottom)	Rotor capacity:4×24× 15ml(Conical/round bottom) 8×250ml(Round bottom)
Adapter No.4	Adapter No.5
Rotor capacity: 4×750ml(Round bottom) 140x 10ml(Blood collection tube)	Rotor capacity: 4×500ml(Round bottom) 196 × 2-7ml(Blood collection tube)
