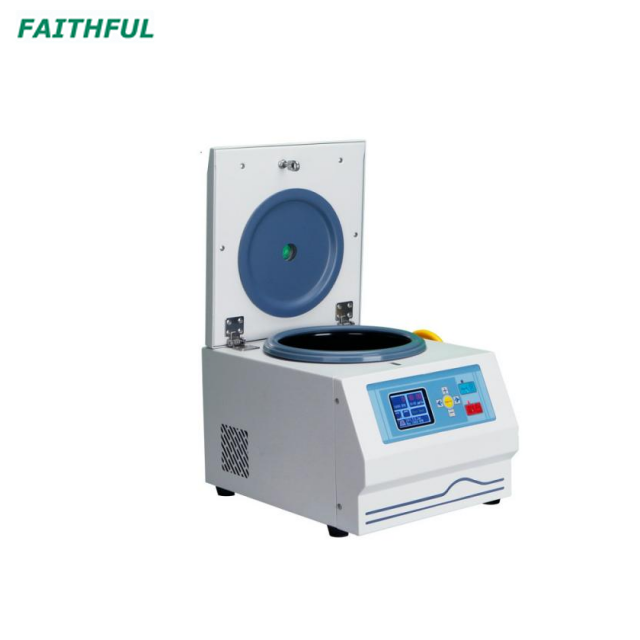

FGT116C High Speed Table Centrifuge

Availability:
Quantity:
  • FGT116C

  • FAITHFUL

With five groups of optional programs and can store 99 program groups.

Electric lid lock.

Long press the start/short-time key to realize instantaneous centrifugation.

Up to 10 level acceleration/ deceleration with Linear drive.

HD large LCD Touch Panel and the parameters can be revised during operation without shutdown.

Microcomputer control,AC frequency conversion brush-less motor with fast speed and stable operation.

Two modes can be set: start timing/ arrival revolution timing.

With rotor automatic identification system.

Over speed,over heat,unbalance etc protections.

Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anticorrosion coating treatment.

It is equipped with a rotor cover that can be quickly locked for easy use.

Ergonomic, low opening height, close the centrifuge cover with one press.

Special noise reduction system.

Technical Parameter:


Model

FGT116C

Max Speed

16500rpm

Max RCF

21615×g

Max Capacity

12×5ml

Timer

1s~99h59min59s

Temp Range

±10r/min

Voltage

AC 220±22V 50Hz 10A or custom

Power

350W

Noise Level

≤ 62dB(A)

Size

270×390×240 (mm)

Net Weight

21kg


Rotor Parameters


Angle Rotor No.1

Angle Rotor No.2

Max, speed: 16500rpm

Max RCF: 20880xg

Rotor capacity: 16×1.5/2.0ml

Max, speed: 16000rpm

Max RCF: 17344xg

Rotor capacity:12×5ml

Angle Rotor No.3

Angle Rotor No.4

Max, speed: 15000rpm

Max RCF: 21615xg

Rotor capacity: 24×1.5/2.0ml

Max, speed: 15000rpm

Max RCF: 14866xg

Rotor capacity:4×8×0.2ml PCR Row

Angle Rotor No.5

Capillary Rotor No.6

Max, speed: 14000rpm

Max RCF: 15032xg

Rotor capacity: 8×8×0.2ml PCR Row

Max, speed: 12000rpm

Max RCF: 13845xg

Rotor capacity:Capillary rotor 24 hole
