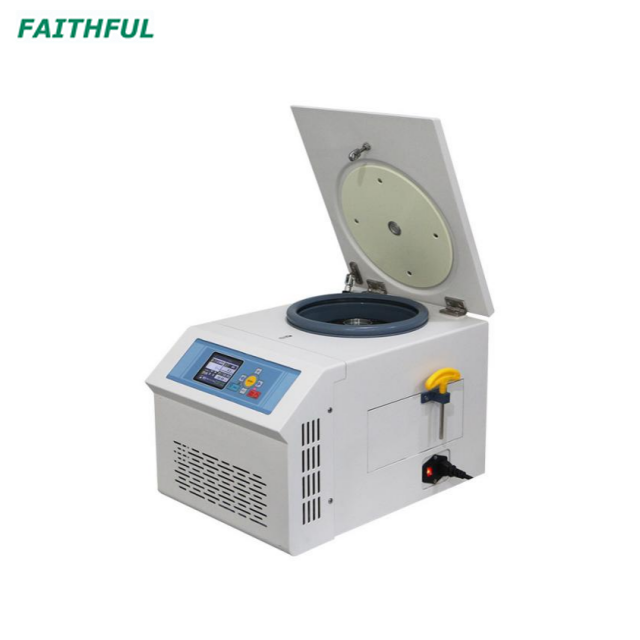

FGTR116C High Speed Table Refrigerated Centrifuge

Availability:
Quantity:
  • FGTR116C

  • FAITHFUL

 Automatically calculate RCF,RPM and RCF switching freely.

Can store 40 groups of program and with shortcut key.

Up to 10 level acceleration/deceleration with Linear drive.

With five groups of user-defined preset programs that can be called by one key.

Long press the start/instantaneous key to realize instantaneous centrifugation.

Two modes can be set: start timing/ arrival revolution timing.

Imported energy-efficient ECO friendly refrigeration system.

Microcomputer control with HD large LCD touch screen,driven by AC frequency conversion brush-less motor.

Full steel inner cavity protective cover

Over speed,over heat,unbalance etc protections and ensure safe operation.

With accompanying professional tools.

The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

Equipped with rotor lid that can be quickly locked.

Ergonomic, low opening height, close the centrifuge lid with one time press.

Special noise reduction system.

Technical Parameter:

Model

FGTR116C

Max Speed

16500rpm

Max RCF

21615×g

Max Capacity

12×5ml

Timer

1s~99h59min59s

Revolutions/min

±10r/min

Temp Range

-20℃~40℃

Temp Accuracy

±1.0℃

Voltage

AC 220±22V 50Hz 10A

Power

550W

Noise Level

≤ 60dB(A)

Size

315×475×310(mm)

Net Weight

36kg

Automatic Rotor Identification

No



Rotor Parameters


Angle Rotor No.1

Angle Rotor No.2

Angle Rotor No.3

Max, speed: 16500rpm

Max RCF: 20880xg

Rotor capacity: 16×1.5/2.0ml

Max, speed: 16000rpm

Max RCF: 17344xg

Rotor capacity: 12×5ml

Max, speed: 15000rpm

Max RCF: 21615xg

Rotor capacity: 24×1.5/2.0ml

Angle Rotor No.4

Angle Rotor No.5

Angle Rotor No.6

Max, speed: 15000rpm

Max RCF: 14866xg

Rotor capacity: 4×8×0.2ml PCR Row

Max, speed: 14000rpm

Max RCF: 15032xg

Rotor capacity: 8×8×0.2ml PCR Row

Max, speed: 12000rpm

Max RCF: 13845xg

Rotor capacity: Capillary rotor 24 hole
