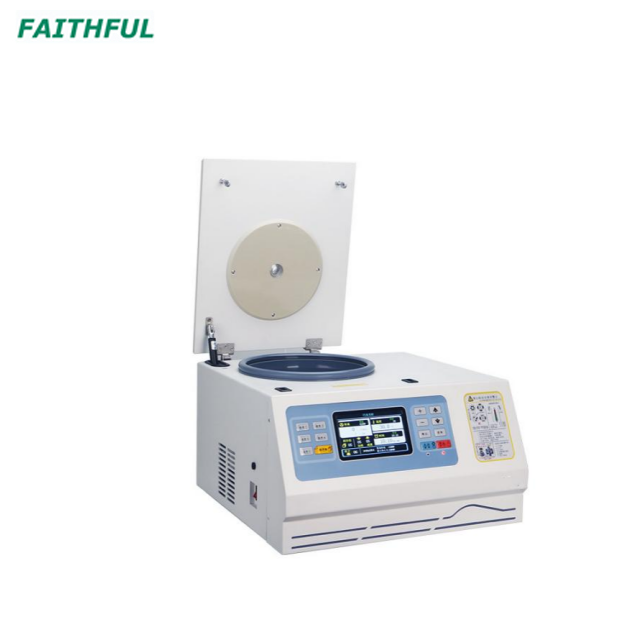

FGTR216C High Speed Table Refrigerated Centrifuge

Availability:
Quantity:
  • FGTR216C

  • FAITHFUL

 With five groups of optional programs and can store 99 program groups .

Long press the start/short-time key to realize instantaneous centrifugation.

Up to 10 level acceleration/ deceleration with Linear drive.

HD large LCD display and the parameters can be revised during operation without shutdown.

Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

Two modes can be set: start timing/arrival revolution timing.

ECO friendly refrigeration system with Special thermal insulation process.

With rotor automatic identification system .

Over speed,over heat,unbalance etc protections .

Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Special noise reduction system.

Electric lid lock.

Technical Parameter:

Model

FGTR216C

Max Speed

16500rpm

Max RCF

26145×g

Max Capacity

6×50ml

Timer

1s~99h59min59s

Revolutions/min

±10r/min

Temp Range

-20℃~40℃

Temp Accuracy

±1.0℃

Voltage

AC 220±22V 50Hz 10A

Power

800W

Noise Level

≤ 60dB(A)

Size

610×560×370 (mm)

Net Weight

73kg

Automatic Rotor Identification

Yes


Rotor Parameters


Max, speed: 16500rpm

Max RCF: 26145xg

Rotor capacity:24×1.5/2.0ml

Max, speed: 16000rpm

Max RCF: 17344xg

Rotor capacity: 12×5ml

Angle Rotor No.3

Angle Rotor No.4

Max, speed: 14000rpm

Max RCF: 19940xg

Rotor capacity: 32×1.5/2.0ml

Max, speed: 14000rpm

Max RCF: 15032xg

Rotor capacity: 8×8×0.2ml PCR Row

Angle Rotor No.5

Angle Rotor No.6

Max, speed: 13500rpm

Max RCF: 17482xg

Rotor capacity: 6×30ml(Round bottom)

Max, speed: 13000rpm

Max RCF: 15228xg

Rotor capacity: 12×10ml

Angle Rotor No.7

Angle Rotor No.8

Max, speed: 13000rpm

Max RCF: 18327xg

Rotor capacity: 48×1.5/2.0ml

Max, speed: 12000rpm

Max RCF: 16227xg

Rotor capacity: 6×50ml(Round bottom)

6x15ml conical bottom
