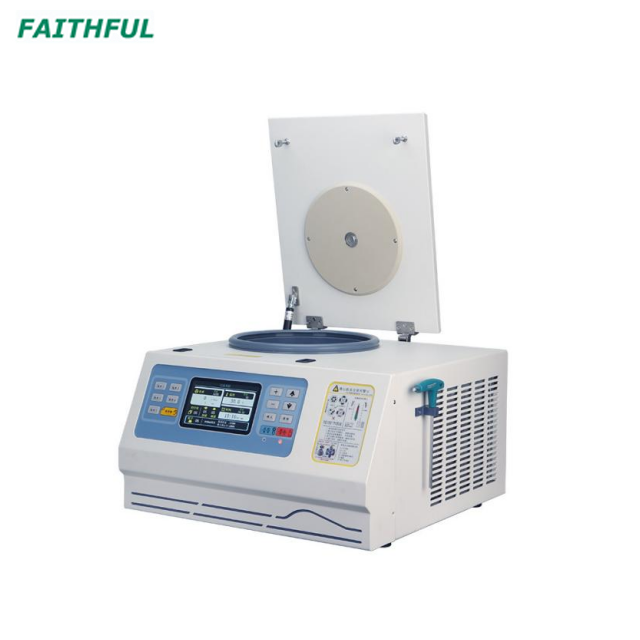

FGTR318C High Speed Table Refrigerated Centrifuge

Home » Product » Analytical Equipment » Centrifuge » High Speed Centrifuge » FGTR318C High Speed Table Refrigerated Centrifuge

Product Classification

lt can store 99 groups of program and easy to call at any time.

Electric door lock can to open the lid automatically after the centrifugal operation.

Long press the start/short instantaneous key to realize instantaneous centrifugation.

Up to 10 level acceleration/ deceleration with Linear drive.

HD large LCD touch screen and the parameters can be revised during operation without shutdown.

Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

Two modes can be set: start timing/arrival revolution timing.

ECO friendly refrigeration system with Special thermal insulation process.

With rotor automatic identification system .

Over speed,over heat,unbalance protections with auto lid lock.

Steel structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Special noise reduction system .

Model	FGTR318C
Max Speed	20000rpm
Max RCF	32868×g
Max Capacity	4×100ml
Timer	1s～99h59min59s
Revolutions	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 15A
Power	1200W
Noise Level	≤ 60dB(A)
Size	610×560×370 (mm)
Net Weight	73kg
Automatic Rotor Identification	Yes

Angle Rotor No.1	Angle Rotor No.2
Max, speed: 20000rpm Max RCF: 27113xg Rotor capacity:12×5ml	Max, speed: 18500rpm Max RCF: 32868xg Rotor capacity: 24×1.5/2.0ml
Angle Rotor No.3	Angle Rotor No.4
Max, speed: 14000rpm Max RCF: 19940xg Rotor capacity: 32×1.5/2.0ml	Max, speed: 14000rpm Max RCF: 15032xg Rotor capacity: 8×8×0.2ml PCR Row
Angle Rotor No.5	Angle Rotor No.6
Max, speed:13000rpm Max RCF: 18327xg Rotor capacity: 48×1.5/2.0ml	Max, speed: 13000rpm Max RCF: 15228xg Rotor capacity: 12×10ml
Angle Rotor No.7	Angle Rotor No.8
Max, speed: 13000rpm Max RCF:19059xg Rotor capacity: 6×50ml(Conical/round bottom) 6x15ml (Conical bottom)	Max, speed: 12000rpm Max RCF: 16340xg Rotor capacity: 12×15ml(Conical bottom)
Angle Rotor No.9	Swing-out Rotor No.10
Max, speed: 12000rpm Max RCF: 16306×g Rotor capacity: 4×100ml	Max, speed: 13000rpm Max RCF:16816xg Rotor capacity: 24×1.5/2.0ml
Swing-out Rotor No.11	Swing-out Rotor No.12
Max, speed: 4500rpm Max RCF: 3395×g Rotor capacity: 4×100ml	Max, speed: 4000rpm Max RCF:2057×g Rotor capacity: Micro-plate 2×2×96 hole
Swing-out Rotor No.13
Max, speed: 4000rpm Max RCF:2680×g Rotor capacity: 8×50ml( Conical bottom)
