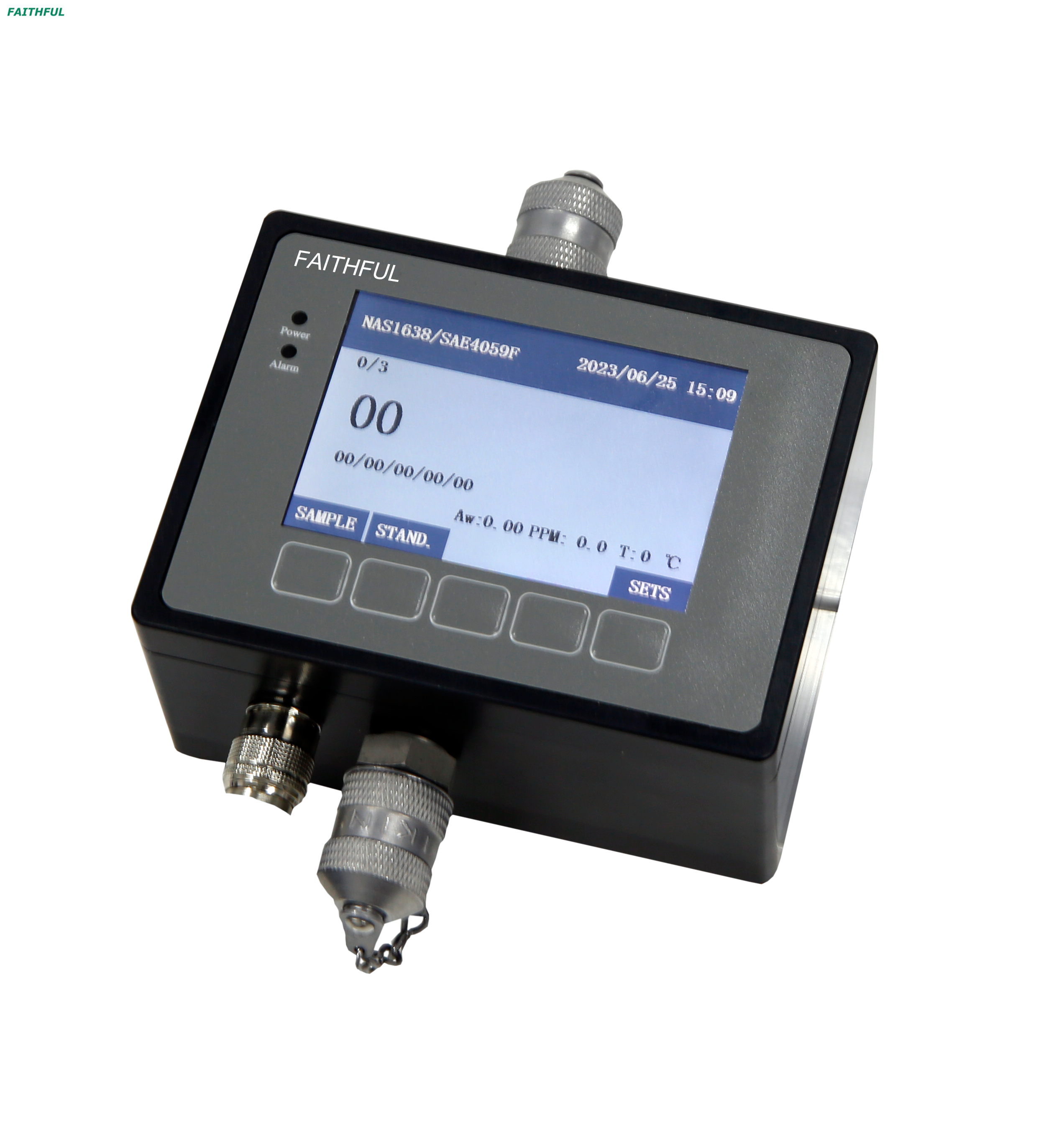

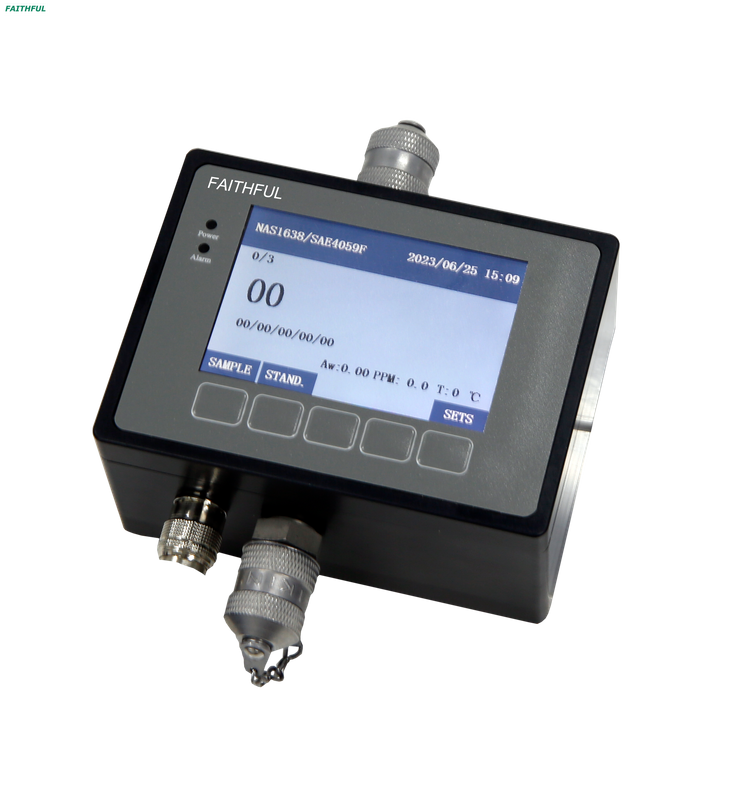

Adopting the principle of photoresist (shielding) method and using high-precisionlaser sensor, it has small size, high precision and stable performance;
Suitable for on-site online detection and can monitor particle contamination in oilsystems in real time:It has volume flushing and duration flushing modes to facilitate the use andmaintenance of the equipment;
Built-in particle pollution level standards such as ISO4406,NAS1638. SAE4059GJB420A, GJB420B,ГOCT17216,GB/T14039,etc;
Any alarm level for all standards can be independently set to realize pollution orcleanliness detection;
*Built-in calibration function can be calibrated according to GB/T21540, 1S04402, 1S011171, GB/T18854 and otherstandards. The built in data analysis system can display the real data of particle size in each channel and automaticallydetermine the sample grade,
* It has RS232, RS485 and USB interfaces, supports standard Modbus protocol, and can be connected to computers, hosicomputers, printers, PLC systems or other devices for data monitoring and processing; it has large storage capabilities,
The bottom-in-top-out mode helps minimize the interference of online air bubbles on test results.It can be tested continuously or the test time interval can be set arbitrarily;.
Touch screen or membrane button operation, Chinese and English dual systems can be freely switched, and theinstrument interface can freely control the remote printer.
