Model:
FSF-102B
Brand:
FAITHFUL

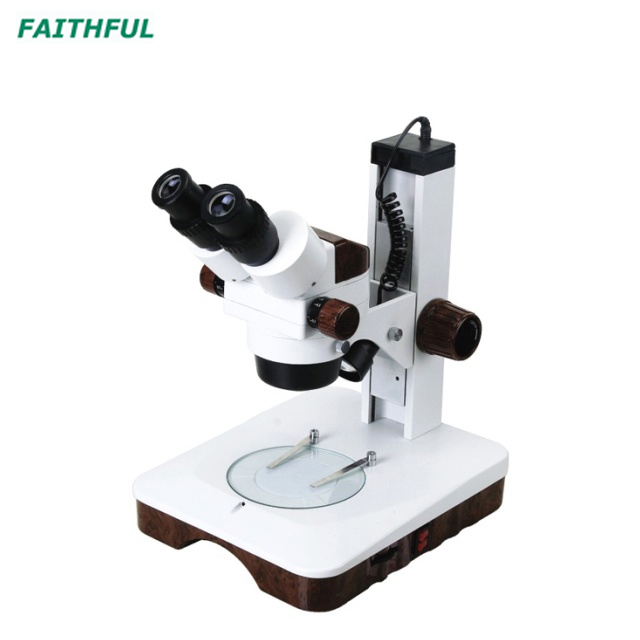

This series microscope is zoom stereo microscope，and it adopts streamline integrated mechanical design. It is with long working distance, large clear range, uniform field, complete accessories, and easy operation. This microscope is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.

microscope FSF-102B Stero Stero Microscope Analytical Equipment

Quick Links

Product Classification

Contact Us

Faithful Technology Park, No.26 Road, East Development

Zone, Huanghua, Cangzhou, Hebei Province, China 061100
86-317-5337349
86-317-5328349
sales@faithful.cc / info@faithful.cc

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Faithful has established enviable reputation for its ability to design and manufacture high quality products.

冀公网安备13098302131132

Eyepiece	Wide Field Plan-scope Eyepiece: WF10X/20mm
Objective	0.7X-4.5X
Head	Articulated Free Binocular Head, 45°Inclined, 360°Rotatable, Interpupillary Distance:55-75mm, with a diopter adaptor on the left eyepiece tube
Working Distance	100mm
Base	290X245X60mm, with Spring Clips;Ф125mm, one piece of glass(for bottom illumination), one piece of pastic black-white plate (for top illumination)
Focusing Adjustment	Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque, Range:85mm
Arm	Arm Height: 280mm
Illumination	Top and Bottom 3.5V/1W LED light, Light Adjustable Seperately
Optional	1.WF15X, WF20X; 2.Auxiliary Objective: 0.5X, 0.75X, 1.5X, 2X 3.External Ring Light 4.Electronic Eyepiece1.3Mp, 3.0Mp
Net Weight	5kg

Eyepiece	Wide Field Plan-scope Eyepiece: WF10X/20mm
Objective	0.7X-4.5X
Head	Articulated Free Binocular Head, 45°Inclined, 360°Rotatable, Interpupillary Distance:55-75mm, with a diopter adaptor on the left eyepiece tube
Working Distance	100mm
Base	290X245X60mm, with Spring Clips;Ф125mm, one piece of glass(for bottom illumination), one piece of pastic black-white plate (for top illumination)
Focusing Adjustment	Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque, Range:85mm
Arm	Arm Height: 280mm
Illumination	Top and Bottom 3.5V/1W LED light, Light Adjustable Seperately
Optional	1.WF15X, WF20X; 2.Auxiliary Objective: 0.5X, 0.75X, 1.5X, 2X 3.External Ring Light 4.Electronic Eyepiece1.3Mp, 3.0Mp
Net Weight	5kg
