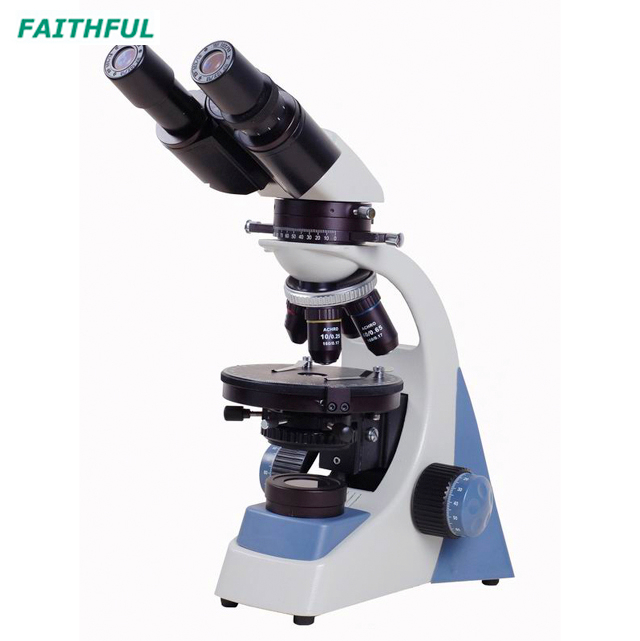

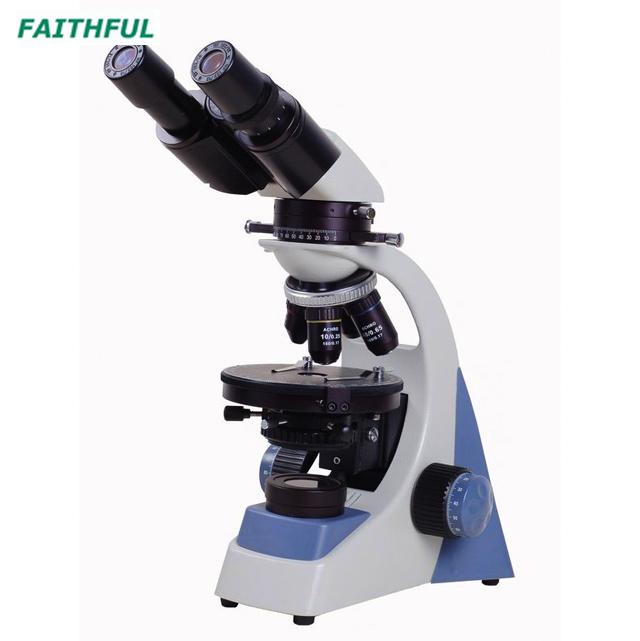

FSF-2005BP Polarizing Microscope

Home » Product » Analytical Equipment » Microscope » FSF-2005BP Polarizing Microscope

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Classification

Model:
FSF-2005BP
Brand:
FAITHFUL

Polarizing microscope is widely used in mineral, polymer, fiber, glass, semiconductor, chemical and other fields,using the lights' polarization characteristic to research and identify double refraction material; users are able to make single polarization observation, orthogonal polarization observation, cone light observation etc.

FSF-2005BP Polarizing Microscope Polarizing microscope Analytical Equipment Analytical

Quick Links

Product Classification

Contact Us

Faithful Technology Park, No.26 Road, East Development

Zone, Huanghua, Cangzhou, Hebei Province, China 061100
86-317-5337349
86-317-5328349
sales@faithful.cc / info@faithful.cc

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Faithful has established enviable reputation for its ability to design and manufacture high quality products.

冀公网安备13098302131132

Eyepiece	Wide Field Plan-scope Eyepiece: WF10X/18mm
Objective	45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)
Head	Articulated Free Binocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable; Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path;
Stage	Revolving Round Stage: Φ160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’;
Condenser	ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
Focusing Adjustment	Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm, precision: 0.01mm
Others	Optical Compensator:λSlip(First Class Red), 1/4 λSlip Polarize: On The Light Collector; 360° Rotatable
Illumination	Built-in Adjustable Brightness 1W LED Lamp
Optional	Eyepieces WF16X;
Net Weight	4kg

Eyepiece	Wide Field Plan-scope Eyepiece: WF10X/18mm
Objective	45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)
Head	Articulated Free Binocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable; Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path;
Stage	Revolving Round Stage: Φ160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’;
Condenser	ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
Focusing Adjustment	Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm, precision: 0.01mm
Others	Optical Compensator:λSlip(First Class Red), 1/4 λSlip Polarize: On The Light Collector; 360° Rotatable
Illumination	Built-in Adjustable Brightness 1W LED Lamp
Optional	Eyepieces WF16X;
Net Weight	4kg

Availability:

Quantity:



Inquire Add to Basket
