FSF-23(A) Student Microscope

Availability:
Quantity:
  • FSF-23,FSF-23A

  • FAITHFUL

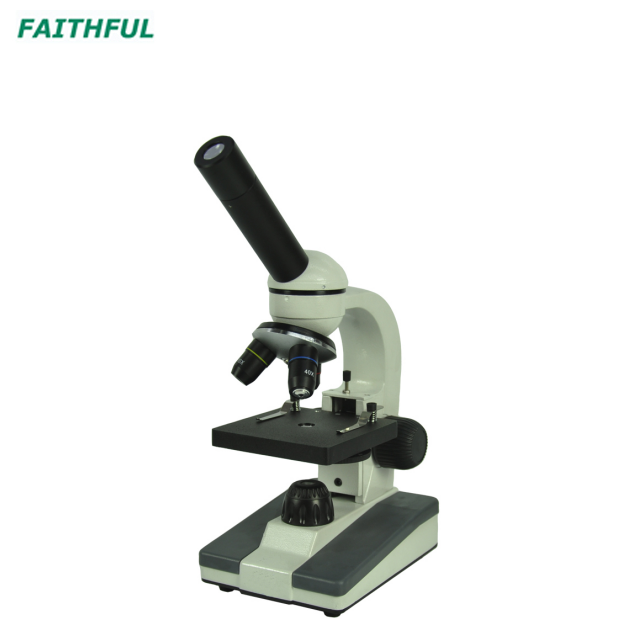

FSF-23:

This series microscope is a basic student microscope. It has new design, reasonable price, optimum performance, novel construction and sharp image. It is suitable for teaching in primary and middle schools and also for human medical routine examination in hospital.

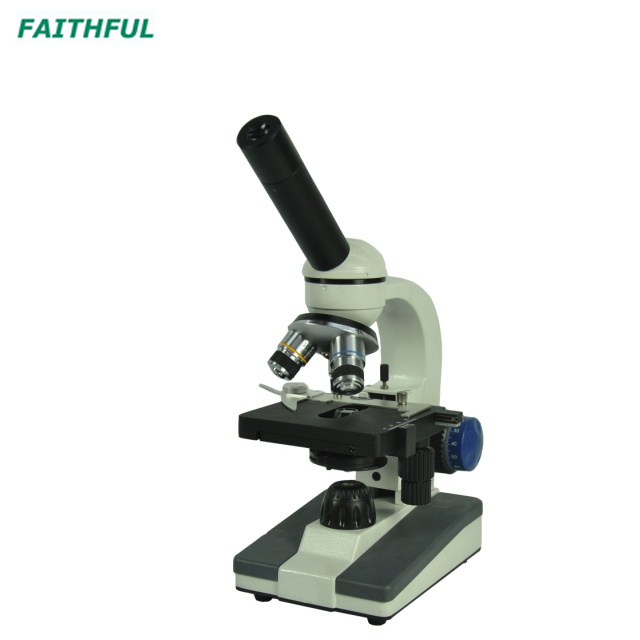

FSF-23A:

This series microscope is a basic model and  high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.


FSF-23:

Eyepiece

Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X

Objective

Achromatic Objectives: 4X,10X,40X(S)

Head

Monocular Head, 45°Inclined, 360°Rotatable

Stage

Plain Stage With Paired Clips: 95X105mm

Condenser

Single Lens Condenser: N.A.0.65; Five-Stop Dial Diaphragm

Focusing Adjustment

Coarse Focusing Adjustable Mechanism: 16mm;

Illumination

LED Lamp

Optional

1.WF16X, WF20X;

2.Rechargeable Batteries

3.Top LED Lamp

Net Weight

1.5kg



FSF-23A:

Eyepiece

Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X

Objective

Achromatic Objectives: 4X,10X,40X(S)

Head

Monocular Head, 45°Inclined, 360°Rotatable

Stage

Double layers Mechanical Stage: 95X105mm

Condenser

Single Lens Condenser: N.A.0.65; Φ2-Φ30mm Iris Diaphragm

Focusing Adjustment

Coaxial Coarse  and Fine Focusing Adjustable Mechanism: 16mm; Precision:0.002mm

Illumination

LED Lamp

Optional

1.WF16X, WF20X;

2.Rechargeable Batteries

3.Top LED Lamp

Net Weight

1.5kg
