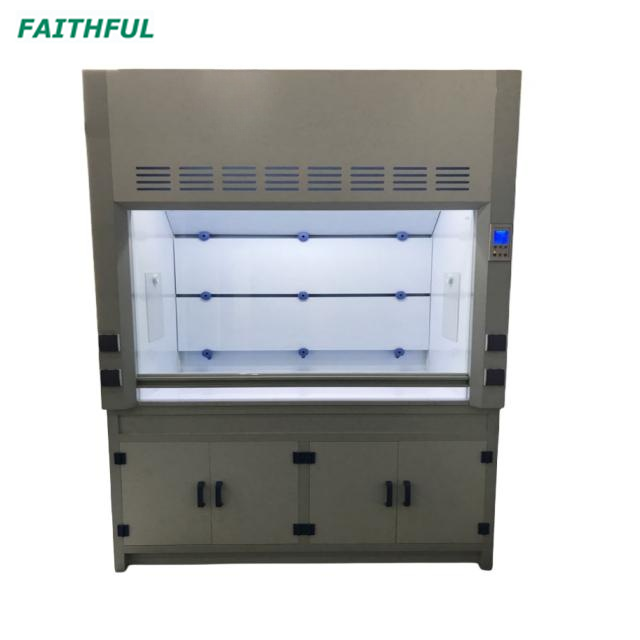

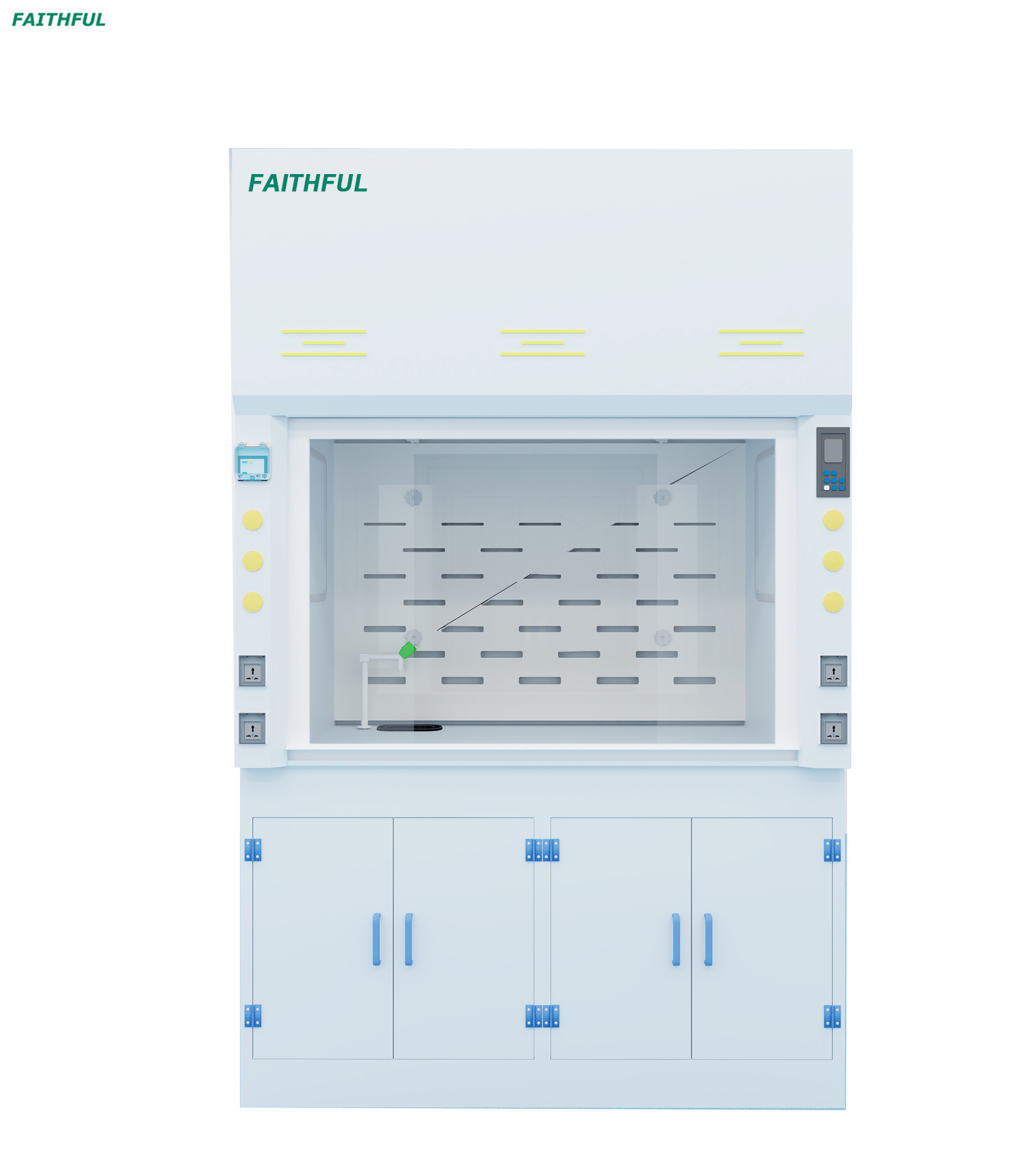

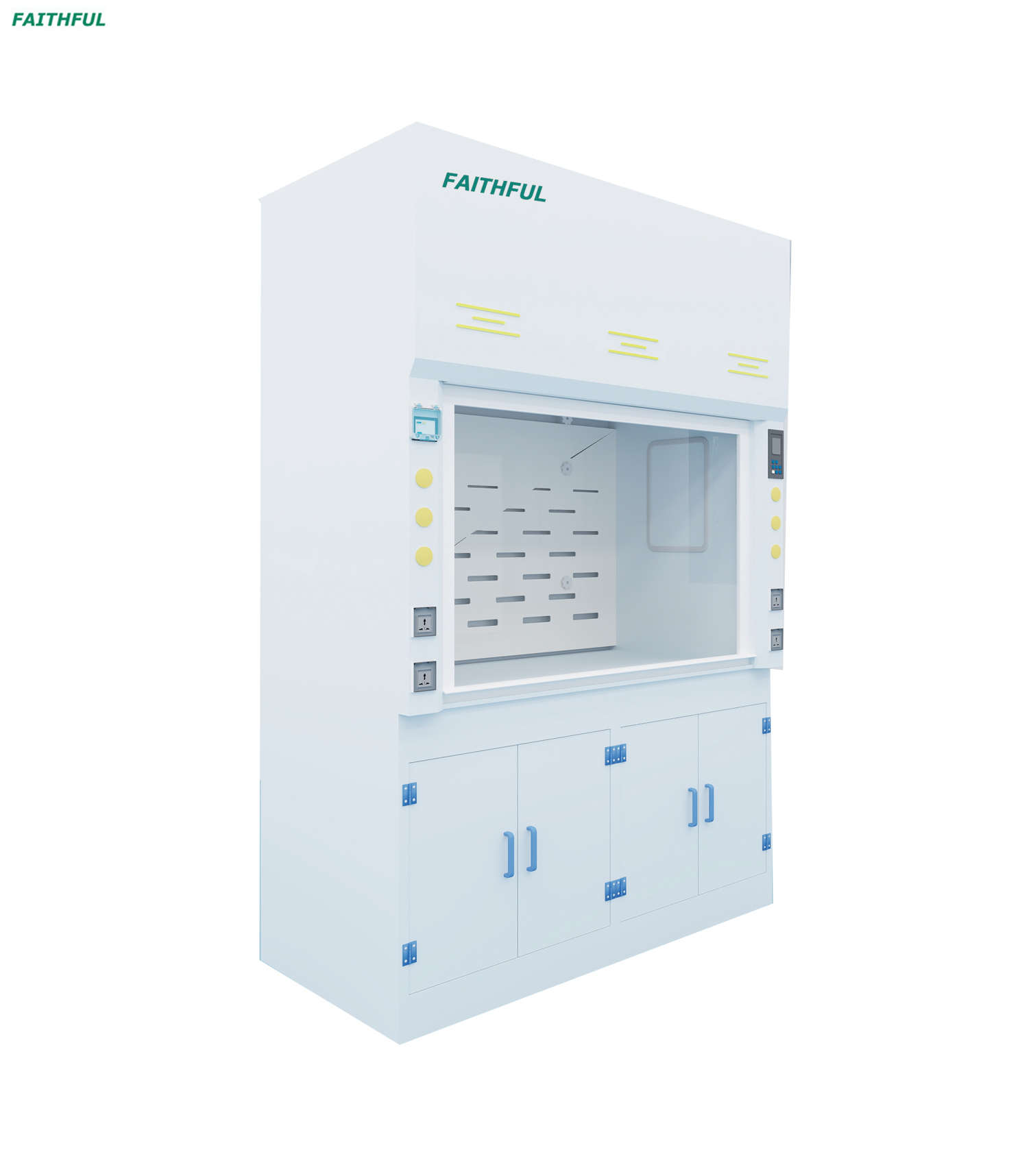

FSF PP Fume hood


1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LCD display.

3. Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.

4. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

External Size (W*D*H)1040*750*2200mm1240*800*2200mm1540*800*2200mm1840*800*2200mm
Internal Size (W*D*H)820*520*872mm1020*570*872mm1320*570*872mm1620*570*872mm
Work Surface Height700mm
Max Opening815mm
Air Velocity0.4-0.6m/s
Fluorescent Lamp12W*130W*230W*230W*2
BlowerBuilt-in axial flow blower; Speed adjustable.
Front WindowManual, 5mm toughened glass, height adjustable
Power SupplyAC220V±10%, 50/60Hz 110V±10%, 60Hz
MaterialMain BodyMade of Porcelain white PP, thickness 8mm,
resistant to strong acid, alkali and anti-corrosion
Work TableChemical resistant phenolic resin
Standard AccessoryFluorescent lamp, Water tap, Gas tap, Water Sink, Base cabinet
Waterproof socket•2
4 meters PVC duct, Diameter: 250mm
Optional AccessoryPP work table, epoxy resin board or ceramic board.
Outer centrifugal blower, resistant to strong acid, alkali.
Gross Weight160kg198kg225kg259kg
Package Size
Main Body1110*900*1870mm1310*885*1575mm1610*885*1575mm1910*885*1575mm
Base Cabinet1110*790*950mm1310*840*950mm1610*840*950mm1910*840*1575mm
